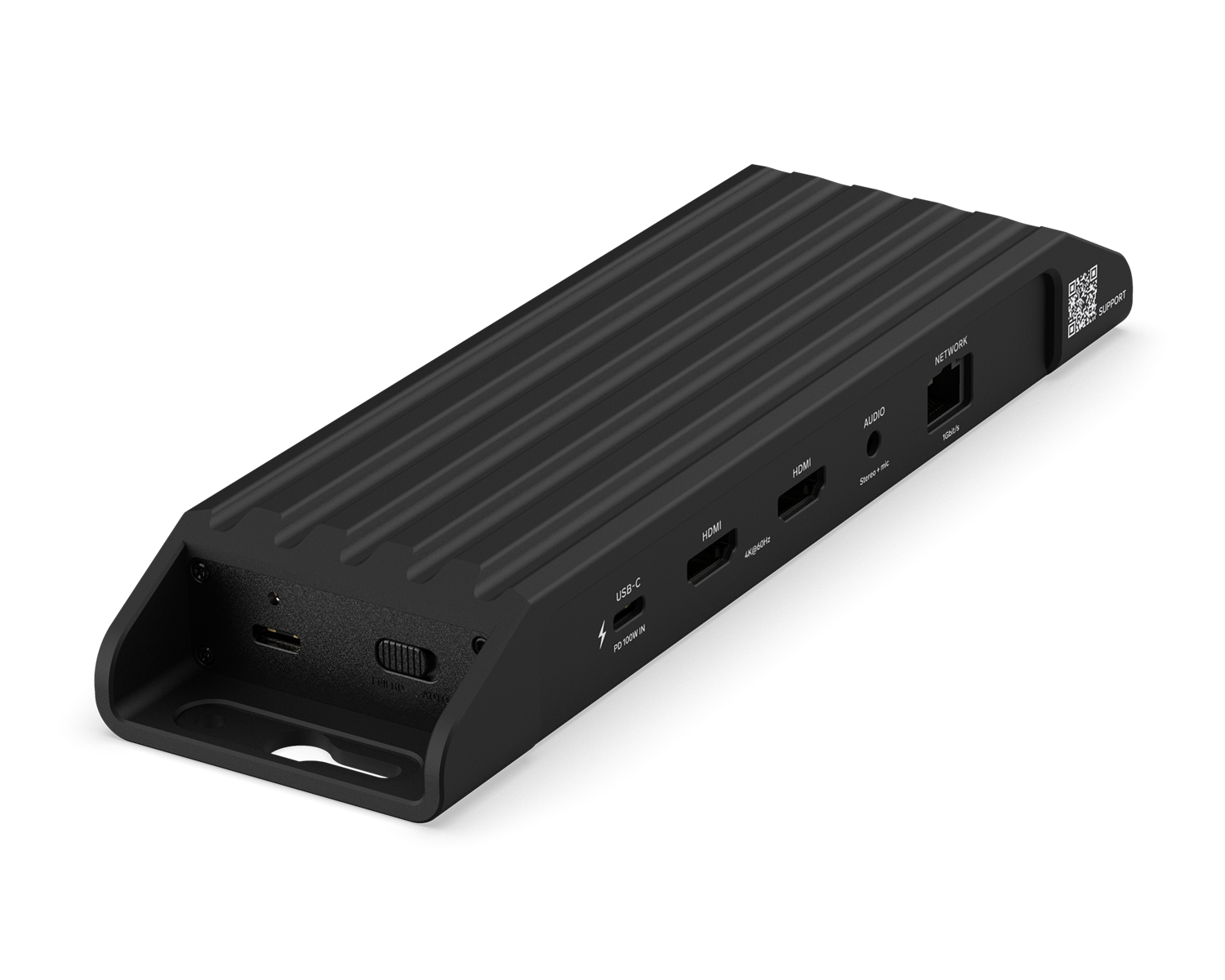

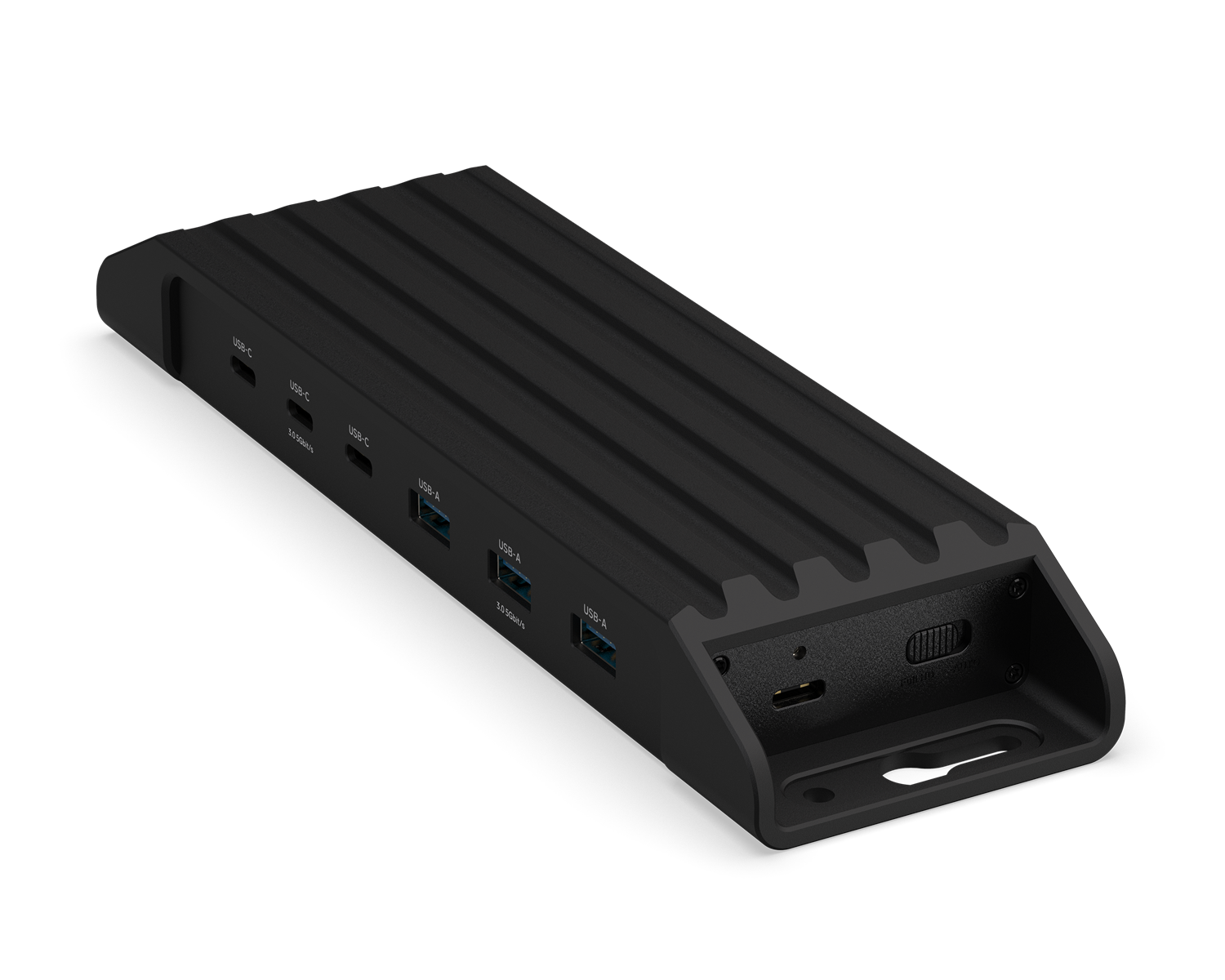

Unisynk Pro AV Dock
designed in sweden
Enhance your conference room with this Pro AV Dock and experience seamless device connectivity, no drivers needed. A plug and play solution allowing the user to focus on their work and avoiding all technical issues. Bring your own device and get started, compatible with both PC and Mac*.
MacBooks do not support dual extended display through MST due to a MacOS limitation
Seamless presentations, every time
Optimized display settings for any monitor or projector. With EDID technology, our AV Dock ensures that your presentation ratio remains optimal and stable with 1080p. Easily switch on/off with a mechanical button.
Minimized risk of technical issues and overheating
Unplug your device and the AV Dock automatically powers off, including all attached devices such as cameras, speakers and displays. Ensuring your workspace stays secure and energy-efficient.
Flexibility with the user in mind
Our AV Dock works seamlessly with or without a connected power adapter. Connect your device and it powers up directly, or keep a power adapter connected for continuous charging.
Recommended to be used together with our 2 meter lockable connecting cable. The lock prevents accidental disconnections and ensures an uninterrupted user experience.
Easy to install and optional mounting holes for extra stability. The packaging is made of paper for easy recycling.
Robust design with unibody aluminum and built in heat sinks for passive cooling.
Tech Specs:
- 2 x HDMI 4K@60Hz (1080p with EDID Lock)
- 3 x USB-A 5Gbit/s
- 3 x USB-C 5Gbit/s
- 1 x 3.5mm audio/mic
- 1 x USB-C PD 100W (passthrough)
- 1 x RJ45 network 1Gbit/s
Weight 389 grams
32x69x224 mm (HxWxD)
General
- Application
- Conferencing Hub
Video specification
- Resolution max out
- 1920x1080 EDID Lock, On dual displays
- Resolution max out
- 3840x2160 On dual displays
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 1
- Video outputs
- 2
- Video in
- USB-C
- Video out
- HDMI
- Audio inputs
- 3,5mm tele Combined In/Out
- Audio outputs
- 3,5mm tele Combined In/Out
Functions
- Scaler
- Yes
- USB passthrough
- Yes
- USB standard
- 3.2 Gen 2
- USB power delivery
- 100W
Energy
- Power Supply
- Power delivery 100W, works without external power
Additional information
- Installation
- Table, Wall
- Included Accessories
- AV Dock only. No USB-C cable or Power Supply included (see accessories)
- Warranty
- 2 years
Packaging info
- Packaging size
- 231 x 70 x 37 mm
- Packaging weight
- 419 g
Packaging info (25 pcs)
- Packaging size
- 370 x 250 x 210 mm
- Packaging weight
- 13.00 kg
