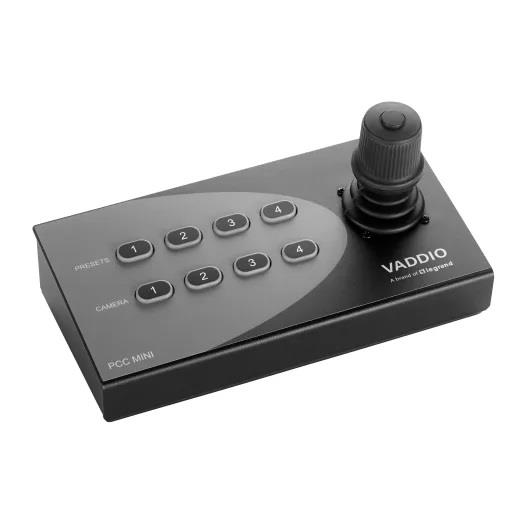

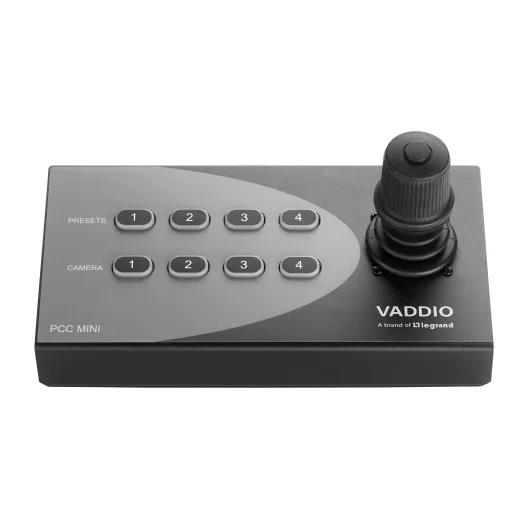

Vaddio’s PCC Mini, Precision Camera Controller, is a low-cost and ergonomic joystick for controlling up to four IP-controlled Vaddio cameras.
Key Features:
- Precise PTZ control with three-axis industrial-grade Hall effect joystick
- Control up to four cameras with a user-defined home position plus four presets per camera
- Low-profile, weighted steel chassis with soft feet for stability on any surface
- HDMI output displays a decoded IP stream from the selected camera (must be enabled on the camera)
Provide production-grade control for smaller studios or cost-conscious environments with PCC Mini. Seamlessly integrate with your new or existing camera system to control up to 4 compatible IP-controlled Vaddio cameras. Pair it with the Vaddio Device Controller for expanded control features. The PCC Mini is PoE+ powered and can be used with the Ethernet switch the cameras are connected to or with the included PoE+ Mid-span power injector.
PCC Mini elevates your video production with precision and ease while only requiring a minimal desktop footprint. The simple joystick enables users to master camera movements and add production value to any video event. The PCC Mini enables the configuration of a customized home position and up to four preset positions for each camera, which can be easily accessed through the controller's four programmable preset buttons and dedicated home button. This makes it simple to capture multiple areas at a variety of angles. Take your productions to the next level with Vaddio's easiest-to-use joystick controller.
General
- Buttons
- 8 pcs.
- Installation
- Freestanding/Shelf, Table
- Interface type
- Joystick, Keypad
Connections
- Control ports
- Ethernet/IP (RJ-45)
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 228.6 mm
- Depth
- 120.6 mm
- Height
- 127 mm
Additional information
- Color
- Black
- Included Accessories
- PCC Mini, PoE+ Midspan Power Injector with AC cord set(s), 0.9 m cat-5e cable, Quick-start card
- Warranty
- 3 years
