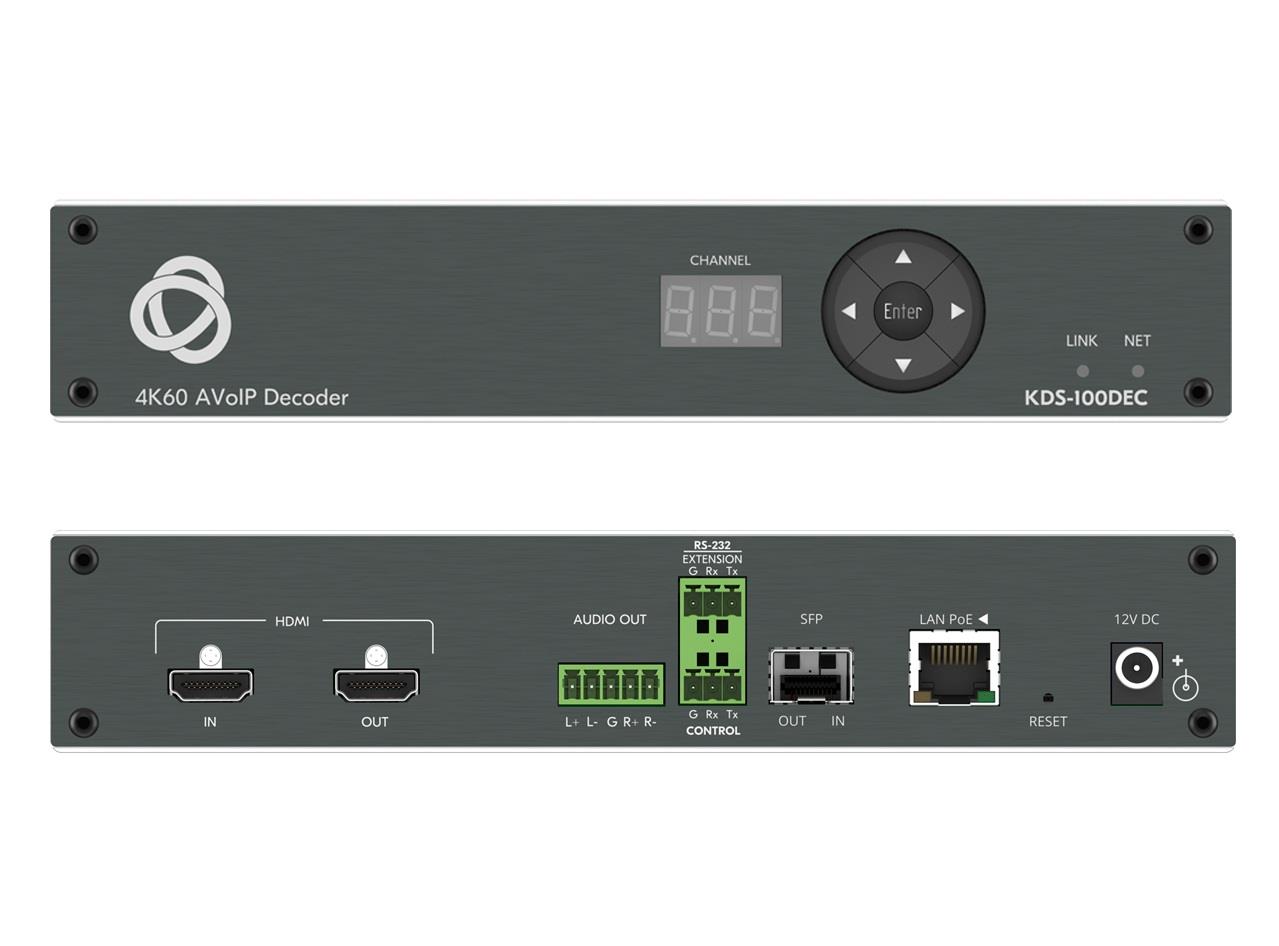

KDS−100DEC decoder is an advanced receiver for streamed 4K@60Hz video signals via Ethernet over copper or fiber cables. It also decodes the RS−232 or CEC signals transmitted over IP network from the encoder.
- Robust Solution for Large–Scale Installations — Provides an optimized solution for large Education and Enterprise campuses, as well as Defense and Homeland Security Facilities, with support for numerous simultaneous video flows and built–in advanced management capabilities.
- Highly Scalable — The KDS–100 line supports up to 1000 video sources, suited for large–scale installations.
- Built–in Resilient Security Features — Preserves the integrity, availability and confidentiality of the IT network via a highly secured and resilient AVoIP solution.
- KDS–100 devices comply with IT security requirements, including 802.1x and HTTPS/TLS.
- Simple Planning and Rollout — KDS–100 is highly bandwidth–efficient, thus enabling cost–efficient hybrid use of the existing 1GE IT network. There is no need to deal with complex IP packets prioritization or switching settings. Offering easy management, high reliability, and adjustable bandwidth control, KDS–100 is extremely cost–effective to maintain over the long term.
- Alternative Sources/Destinations — An HDMI loop–through port on the encoder side and an HDMI input port on the decoder, as well as embedding and de–embedding analog audio to the IP stream.
Applications
- Real–time essential installations such as command and control rooms.
- Large–scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications.
- AV distribution systems with one or more sources and many displays in schools, universities, and public venues.
General
- Modell series
- KDS-100
- Extender type
- Reciever (Rx)
- Technology
- H.264, H.265
Video specifications
- Max supported resolution
- 3840x2160 Maximum Streaming Resolution: 3840x2160@60Hz 4:2:2
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
Connections
- Video in
- HDMI
- Video out
- HDMI, IP stream (RJ-45), SFP Fiber IP Stream
- Audio outputs
- Euroblock line Balanced audio
- Control
- RS-232
- USB passthrough
- No
Communication
- Latency
- 40 ms
- Switch Data Rate
- 1GbE
- Req. Network Switch
- 1Gb Ethernet, Multicast with IGMPv2
Energy
- Power Supply
- PoE+: IEEE 802.3at, or Optional Power Adapter: 12V DC, 5A. Unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 source of supply
Dimensions and weight
- Width
- 215 mm
- Depth
- 163 mm
- Height
- 44 mm
- Net weight
- 0.9 kg
Additional information
- Installation
- 19" Rack, 1U With optionial rack adapter (RK-1)
- Installation
- Table With optionial mounting brackets (RK-19N)
Packaging info
- Packaging size
- 345 x 165 x 52 mm
- Packaging weight
- 1.30 kg
