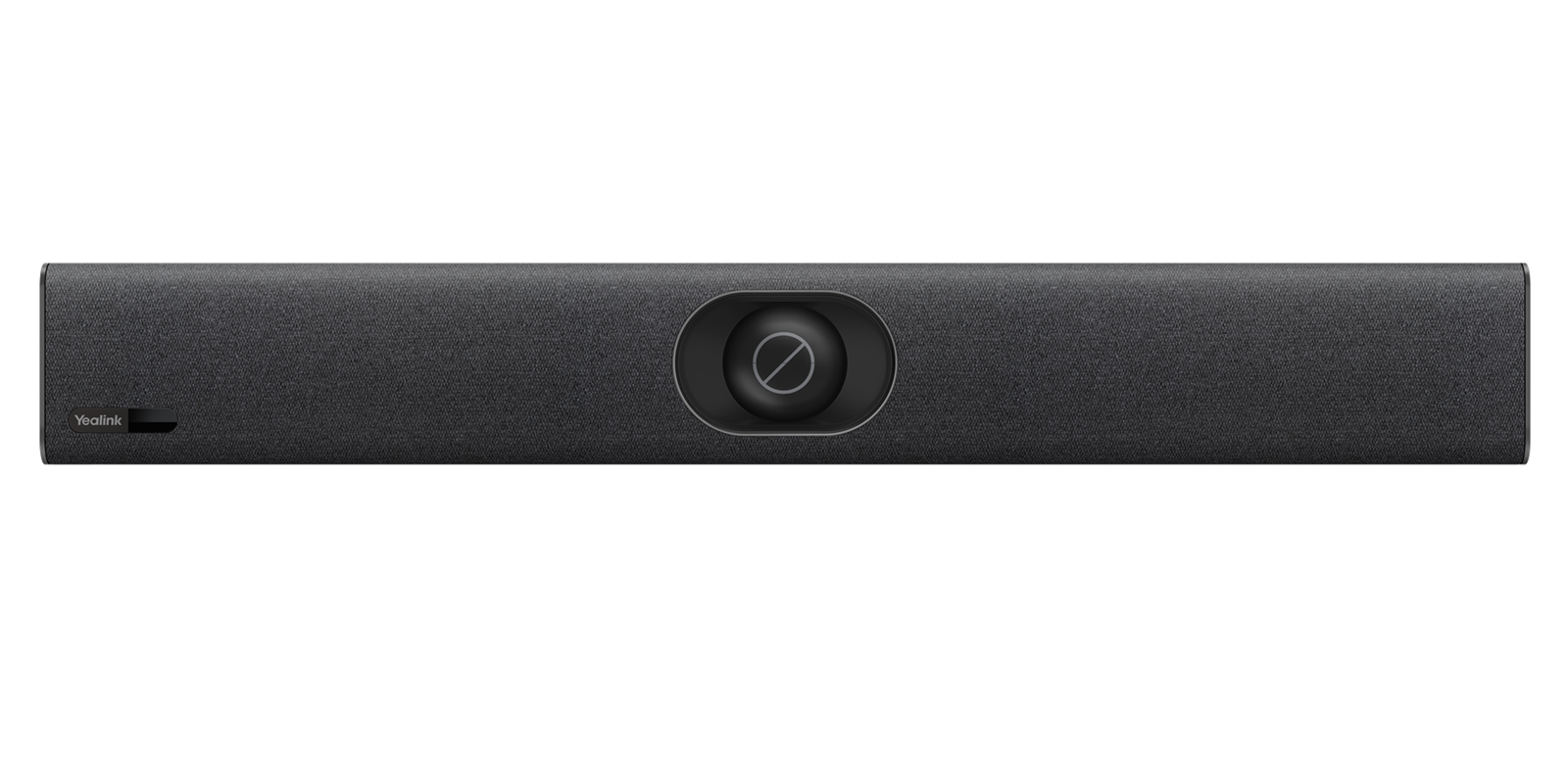

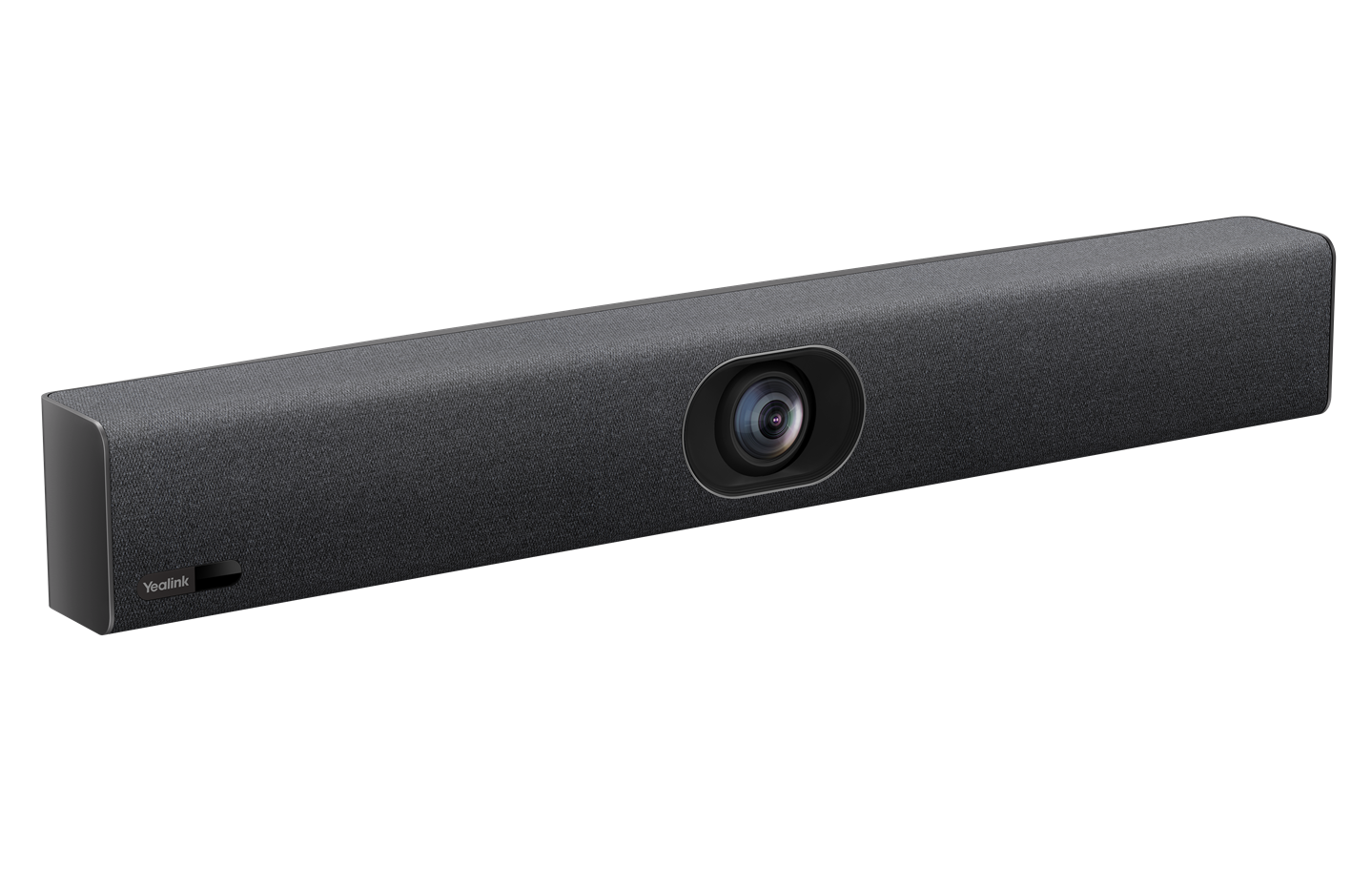

UVC40 E2 Smarter Meetings, One Device.
All-in-One Intelligent USB Meeting Device for Small and Huddle Rooms
MAKE YOUR MEETINGS SMARTER
With 4K ultra-HD imaging, a 120° super-wide-angle lens and Smart Area Exposure technology, the UVC40 E2 ensures exceptional video quality. AI features like Auto Framing and Speaker Tracking enhance conferencing, while 8 MEMS microphones and a high-fidelity speaker ensure excellent call quality. Manageable via Yealink Device Management Platform, UVC40 E2 is your choice for seamless collaboration.
SMART AI, CLEAR FOCUS.
With advanced AI technology such as Auto Framing and Speaker Tracking, the UVC40 E2 automatically adjusts framing based on participant count and positions, seamlessly zooms in on speakers without manual intervention, ensuring enhanced conference focus during meetings.
SMART VISION, WIDE VIEW.
Featuring a ultra-HD 4K lens, the UVC40 E2 ensures clear and smooth video calls, delivering vivid and detailed presentations. Its 120° ultra-wide view effortlessly covers every corner of the meeting room, capturing all participants. Smart Area Exposure* enhances overall brightness through AI image algorithms, ensuring optimal face and picture presentation.
Smart Sound, Superior Clarity.
8 MEMS microphone arrays for superior noise reduction and echo cancellation. Enhanced by an upgraded beamforming algorithm and advanced acoustic processing technology, the UVC40 E2 delivers high-quality full-duplex calls with precise voice pickup.
*Optional wireless/wired expansion microphones further enhance the exceptional audio experience.
General
- Camera type
- Video soundbar
- Color
- Grey
- Certifications
- Microsoft Teams, USB BYOD
Image specification
- Max Resolution (Out)
- 3840x2160 8MP Camera with SONY 1/1.8-inch CMOS
- Framerate
- 30 FPS
- Optical zoom
- 0 x
- Digital zoom
- 5 x e-PTZ
- Field of view (horizontal)
- 120 ° 133° diagonal
Functions
- Programmable presets
- Yes
- Auto framing/tracking
- Yes Auto Framing, Speaker Tracking, Smart Area Exposure
Audio specification
- Built-in microphone
- Yes 8 Mems Microphone Array
- External microphone
- Yes 1x Yealink Mic port (RJ-45)
- Audio pickup range
- 6 m
- Built-in speaker
- Yes 5W high fidelity speaker
- External speaker
- Yes Via 3,5mm line out
Connections
- Video out
- USB-A, USB-B
- USB standard
- 2.0, 3.0
- Audio inputs
- 3,5mm tele Analog line-in
- Audio inputs
- External microphone input 1x Yealink Mic port (RJ-45) (it can be switched to Ethernet connection for wired network connectivity)
Energy
- Power Supply
- Power Adapter: AC 100~240V input and DC 48V/0.7A Output
Dimensions and weight
- Width
- 600 mm
- Depth
- 68 mm
- Height
- 82 mm
- Net weight
- 1.37 kg
Additional information
- Included Accessories
- VCR20 Remote Control, 2 x AAA battery, Power adapter, Wall bracket and accessories, TV Mount Bracket and Accessories, 7m USB cable, Velcro, Quick Start Guide, Silicone Pad, Cable Ties
- Warranty
- 2 years
Packaging info
- Packaging size
- 700 x 305 x 300 mm
- Packaging weight
- 4.00 kg
