USB-C TO 18G HDMI2.0 CONVERTER WITH USB AND ETHERNET
The VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output.
For the USB-C input interface, it also supports USB 3.2 Gen1 data transfer, Gigabit LAN and 100W fast-charging.

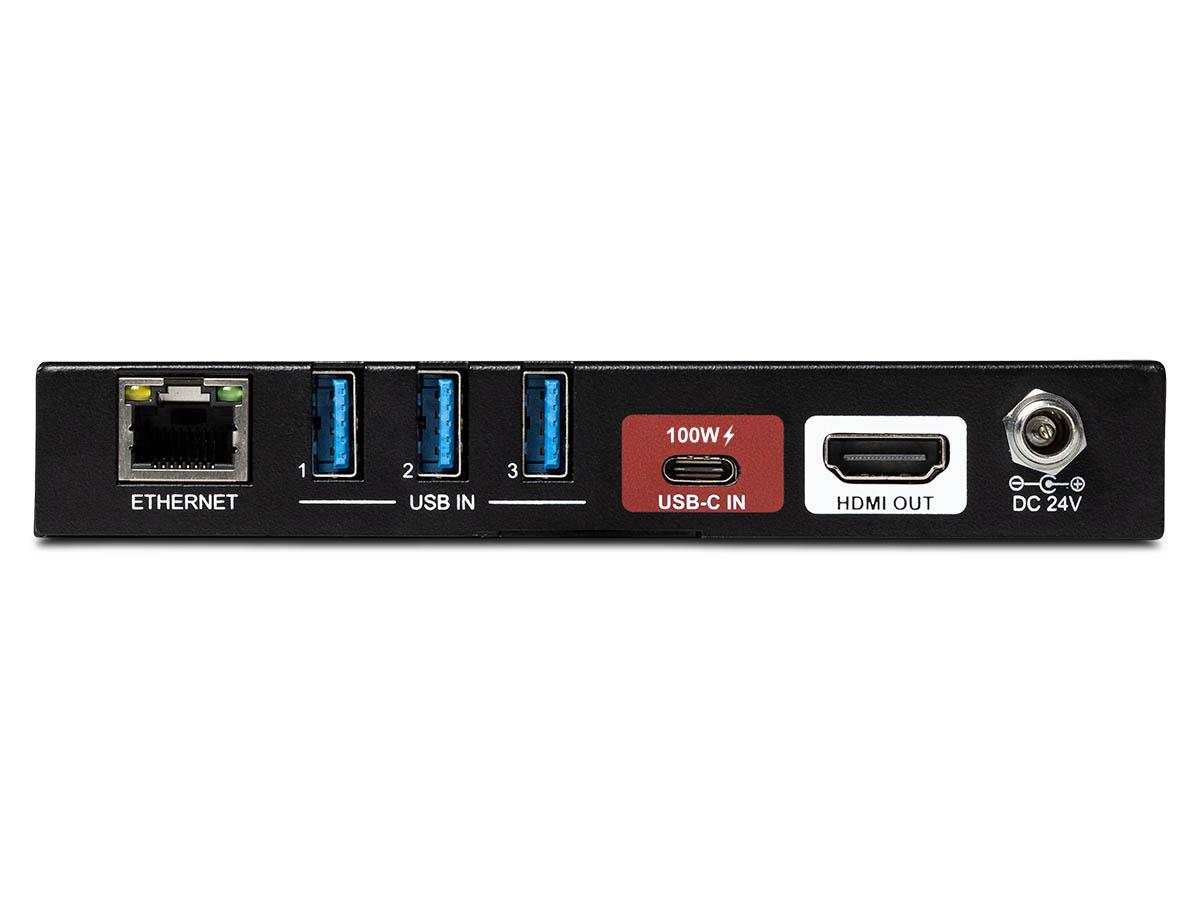

The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.
Key Features:
- Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
- Output supports HDMI 2.0, 4K@60Hz 4:4:4.
- HDCP 2.3 support.
- USB-C input supports 100W USB Power Delivery.
- Supports USB3.2 Gen1 (up to 5 Gbit/s) data transfer via USB-C.
- 3x USB 3.2 device ports for camera, keyboard and mouse.
- Ethernet Gigabit LAN pass-through via USB-C
- No software drivers required - Plug and Play.
General
- Application
- Conferencing Hub, Converter
Video specification
- Resolution max out
- 3840x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- USB-C
- Video in
- USB-C USB 3.2 Gen 1, DisplayPort 1.4 Alt mode, 100W PD
- Video out
- HDMI 2.0b with HDCP 2.3/1.x compliant
Functions
- Scaler
- No
- USB passthrough
- Yes
- USB standard
- 3.2 Gen 1
Energy
- Power Supply
- External Power Supply: Input:100V~240V AC; Output: 24V DC 6.25A
Dimensions and weight
- Width
- 145 mm
- Depth
- 80 mm
- Height
- 22 mm
- Net weight
- 290 g
Additional information
- Warranty
- 5 years
Packaging info
- Packaging size
- 230 x 210 x 65 mm
- Packaging weight
- 2.00 kg
