AUDIO EXTENDER KIT FOR ANALOG OR DIGITAL AUDIO
The EXT-AU313-TP is an audio extender set that includes one transmitter and one receiver. It is designed to extend a stereo analog audio signal up to 170 m and extend an Optical/Coax digital audio up to 290 m via a CATx cable. The EXT-AU313-TP is ideal to extend unbalanced or digital audio from a source to an audio system located far from the source.
Key Features:

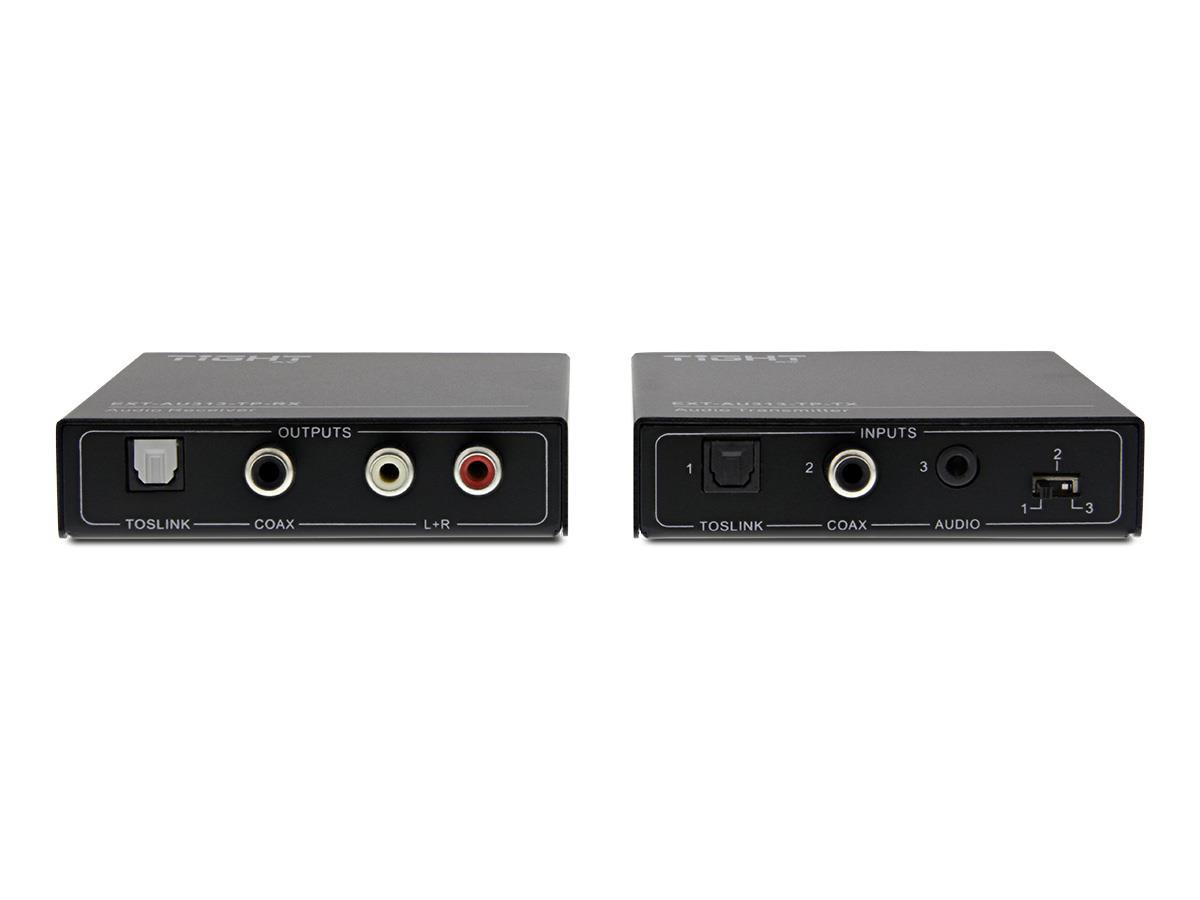

- Three selectable audio inputs: Optical, Coax and Analog Stereo.
- Audio will be outputted simultaneous to the three different outputs: Optical, Coax and Analog Stereo.
- Convert audio signals from digital into analog, or analog into digital.
- Supply power only at the receiver end -the transmitter is powered over the CATx cable (PoC).
- The transmission distance of analog stereo audio can up to 170 m, and the digital Optical/Coax audio up to 290m over an CATx cable.
General
- Model
- EXT-AU313-TP
- Utök. text för namn
- Audio Extender Kit For Analog Or Digital Audio
Connections
- Audio inputs
- 3,5mm tele Analog stereo (L/R)
- Audio inputs
- Coaxial Digital, Optical Digital
- Audio outputs
- Coaxial Digital, Optical Digital
- Audio outputs
- RCA x2 Analog stereo (L/R)
Energy
- Power Supply
- Input: 100VAC~240VAC, 50/60Hz; Output:12VDC 1A
Measurements and weight
- Width
- 88 mm
- Depth
- 80 mm
- Height
- 21.5 mm
- Net weight
- 0.12 kg
Various
- Warranty
- 5 years
