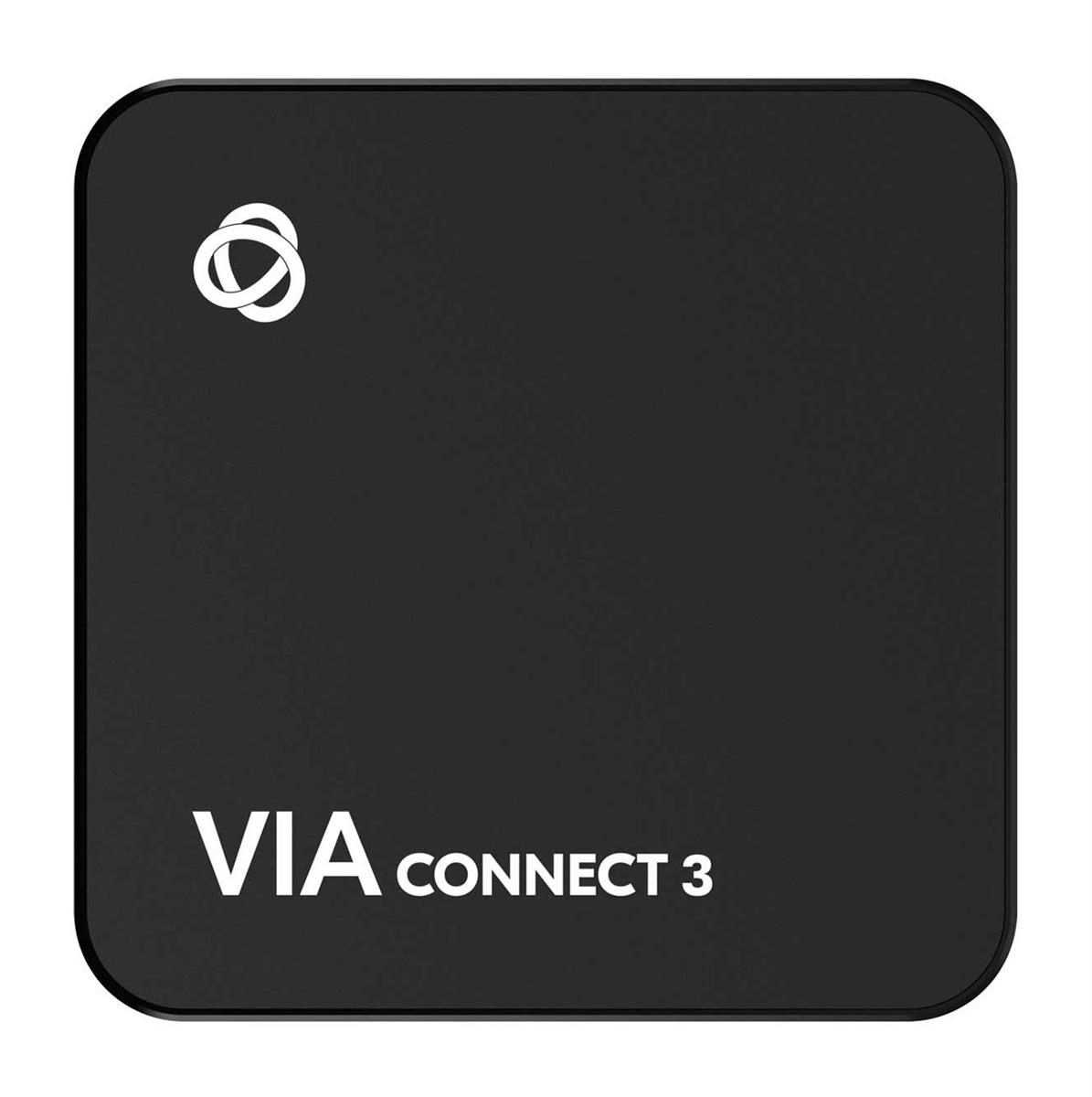

VIA CONNECT3 is super−compact (9x9cm) and flexible to install, with both built−in Wi−Fi and LAN connectivity and includes industry−leading 1024−bit encryption for secure use on the internal network.
VIA CONNECT3 gives iOS, Android, Chromebook, PC, and Mac users instant wireless connectivity with 4K advanced presentation capabilities. The product features content streaming with crystal−clear mirrored images and stunning video playback and includes iOS mirroring via AirPlay™, Windows & Android mirroring via Miracast™, as well as Chromebook mirroring.
- 3rd party Security Certification
- Built–In isolated Wi–Fi and LAN.
- Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main display without a dongle. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.
- Clientless Connectivity — Airplay, Miracast, join through browser.
- High Quality Video Streaming — Supports up to 4K resolution (using the VIA app Multimedia feature).
- Optimized for Video Conferencing — Room devices driver feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.
- Calendar widget on the wallpaper for instant connectivity within one click.
- 3rd Party Web Applications — Run directly from the device without needing to use the application.
- Powerful Security Feature — 802.1x User authentication, 1024–bit encryption, dynamic room code.
- Comprehensive Collaboration Functionality — Whiteboard, filesharing, View Main Display, chat, etc.
- Simultaneous Display — Four participants can simultaneously present content on the main display.
- Seamless Live Video Streaming — Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.
- Easy and Flexible Installation — With a super–compact 9x9cm form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.
- Up to 4K@30 HDMI Wired Input — Enables hard–wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.
- Wireless USB — Supports Microphone, Speaker & Camera.
- Cloud–Based Management — Seamlessly compatible with VIA Site Management (VSM).
General
- Application
- Wireless Collaboration, Wireless Conferencing, Wireless Presentation
Functions
- Max connected users
- 254 pcs.
- Users on screen
- 4 (quad view)
- Extended desktop
- Yes For Windows PCs with driver installation, for Mac laptops via AirPlay
Video specifications
- Max output resolution
- 3840x2160 30Hz
- Max Framerate
- 30 FPS
compatibility
- Compatibility PC
- Yes Via Win App / Miracast mirroring or via Webbrowser
- Compatibility Mac
- Yes Via MAC App / AirPlay mirroring or via Webbrowser
- Compatibility iOS
- Yes Via iOS App or AirPlay mirroring
- Compatibility Android
- Yes Via Android App or Miracast mirroring
- Compatibility Chromebook
- Yes Via Chromebook mirroring

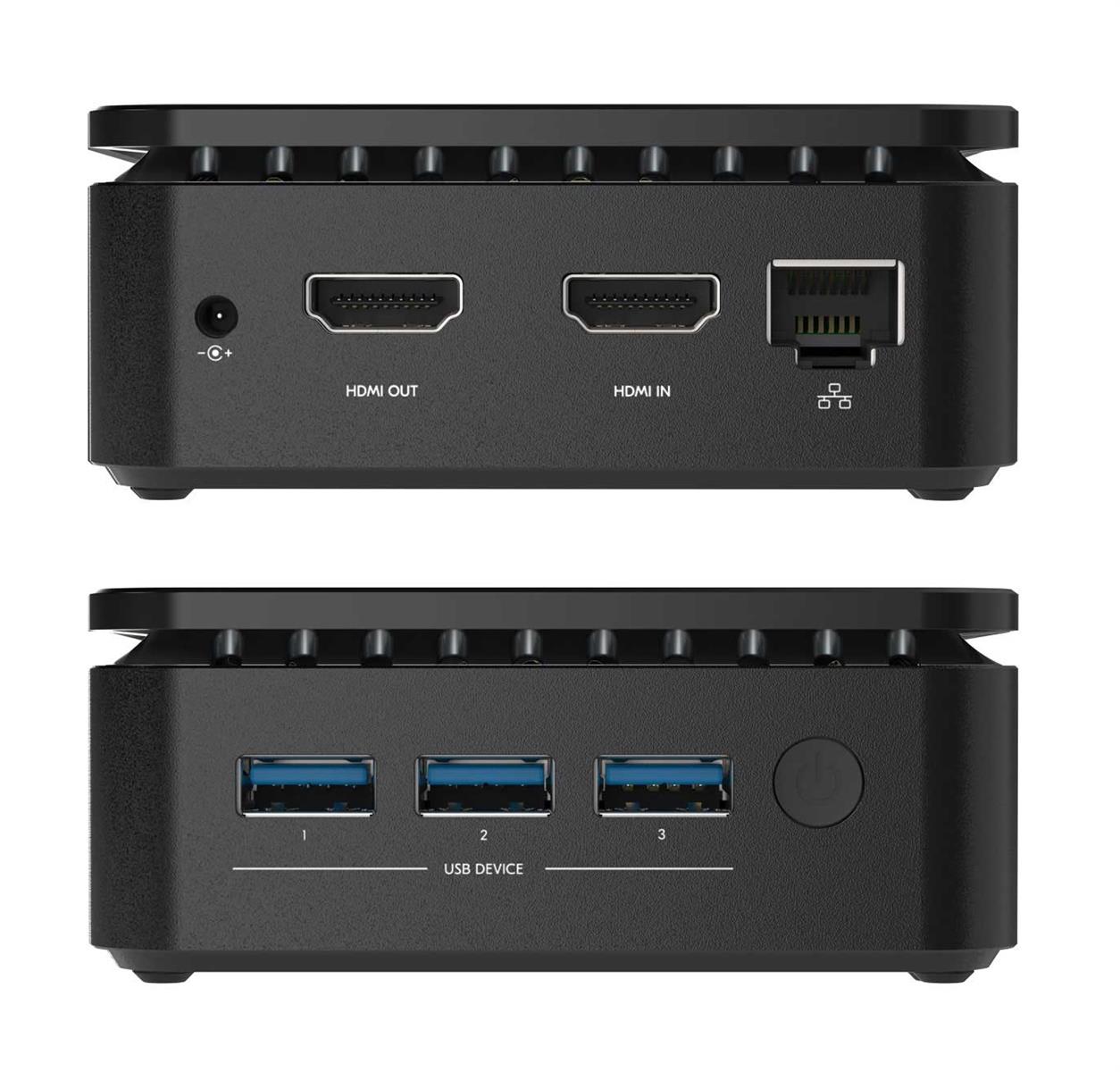

Connections
- Wireless sharing
- AirPlay, Desktop App, Miracast, Mobile App
- Donble included
- No
- Cable source
- HDMI x1 (4K 30Hz)
- Video out
- HDMI x1 (4K 30Hz)
- Video out
- IP stream (RJ-45) RTMP/RTMPS
Interactivity
- Touch support
- Yes Touchback function
- White/Blackboard function
- Yes Built-in Whiteboard function
- Moderator function
- Yes
Communication
- Wi-Fi
- Yes 2.4GHz / 5GHz with MIMO antennas
- WiFi Standard
- 802.11 ac/b/g/n
- Dual/guest network
- Yes
- Network integration
- Yes
- Managed
- Yes via VIA Site Management (VSM)
- Security
- 802.1x User authentication, 1024–bit encryption, dynamic room code
Energy
- Power Supply
- External Power Supply, 12V DC 3.8A
- Consumption Max
- 15.6 W
Dimensions and weight
- Width
- 89.9 mm
- Depth
- 89.9 mm
- Height
- 36 mm
- Net weight
- 0.3 kg
Additional information
- Included Accessories
- Power adapter
- Warranty
- 3 years 3 year warranty for hardware, 3 year warranty for firmware and software updates
Packaging info
- Packaging size
- 161 x 124 x 91 mm
- Packaging weight
- 578 g
