Features
⦁ 4K 60Hz 4:4:4 video performance with HDCP 2.3 support
⦁ USB-C input for USB 3.2 Gen2 data transfer and 100W power delivery
⦁ 2x USB-A and 1x USB-C for peripheral devices plus Gigabit Ethernet
⦁ Dual HDMI 18Gbps outputs with SST and MST support
⦁ Professional mountable metal housing designed for installation

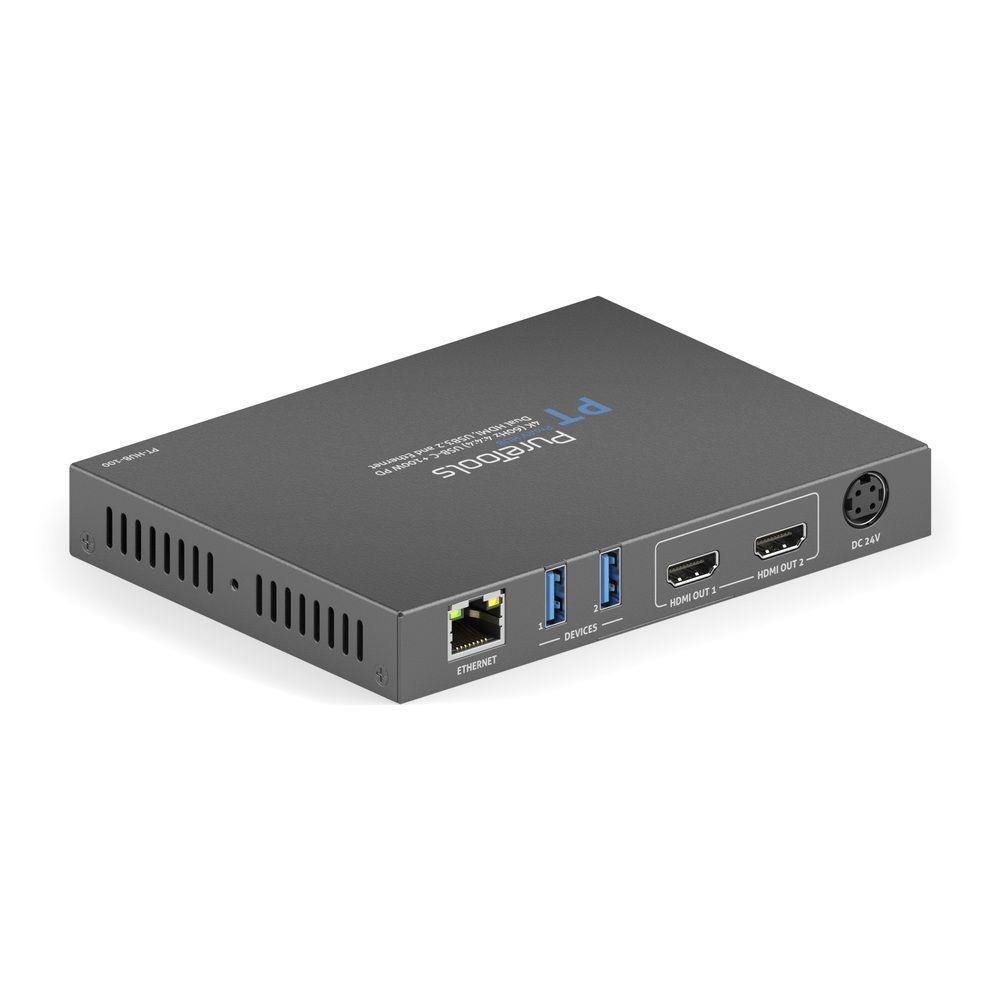

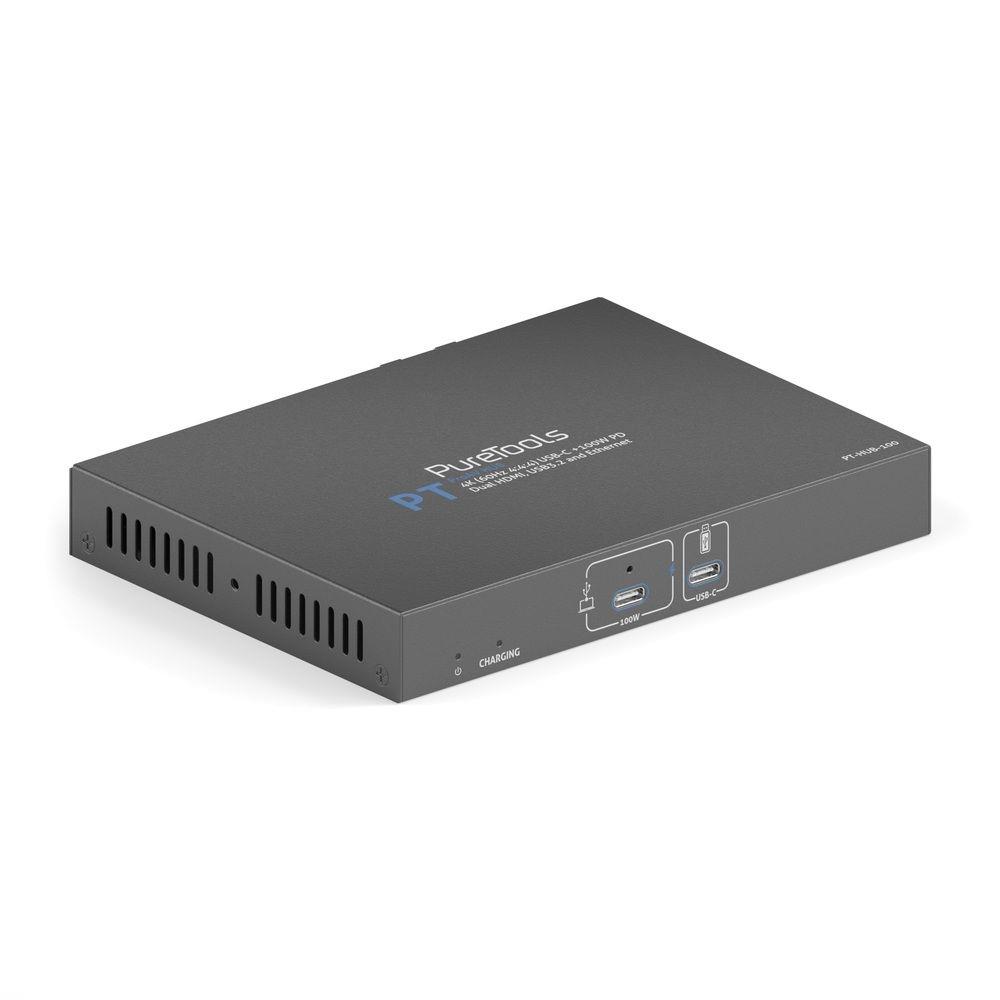

PureTools - ProAV USB-C Alt-mode Docking Station: The Ultimate Connectivity Solution

Meet user expectations and ProAV installation requirements with the PureTools ProAV USB-C Alt-mode Docking Station. Designed to enhance the productivity and streamline the workflow of both the installer and user. This docking station offers a range of impressive features designed for modern co-working or public service applications.

⦁ 4K Video Reproduction: Enjoy stunning 4K 60Hz 4:4:4 video performance with HDCP 2.3 support, ensuring crystal-clear visuals and vibrant colours.
⦁ 10G Upstream port: The USB-C input port supports USB 3.2 Gen2 data transfer and provides up to 100W power delivery, allowing you to charge your devices quickly and efficiently.
⦁ 5G Downstream Ports: With 2 USB-A and 1 USB-C ports, you can easily connect peripheral devices such as keyboards, mice, and external storage. The docking station also features a Gigabit Ethernet port for fast and reliable internet connectivity.
⦁ Dual Screen Connectivity: The dual 4K HDMI outputs support both SST and MST, allowing you to connect multiple displays and enjoy a seamless multi-monitor setup.
⦁ Made for Install: The docking station features a professional mountable metal housing, ensuring durability and easy installation in any environment.
⦁ Modern Workspace Applications: Designed for hot desks, huddle spaces, small meeting rooms, coworking areas, hotel lobbies or internet cafes, the ProAV USB-C Dock provides the perfect solution for flexible modern workspaces.

Upgrade your desk connectivity and simplify your work environment with the PureTools ProAV USB-C Alt-mode Docking Station. Experience the future of connectivity today.



General

Application
Conferencing Hub

Video specification

Resolution max out
3840x2160 18Gbps
Refresh rate
60 Hz
Chroma subsampling (4K)
4:4:4

Connections

Video inputs
1
Video outputs
2
Video in
USB-C x1 (USB Host), USB 3.2 Gen2 data (10Gbps), 100W PD & Ethernet pass-through
Video out
HDMI x2 HDMI 2.0b / HDCP2.3 with SST and MST support

Functions

Scaler
No
USB passthrough
Yes 1x USB-C, 2x USB-A Device ports
USB standard
3.2 Gen 1 5 Gbps for device ports
USB power delivery
20V, 5A (100W) for USB-C Host port

Energy

Power Supply
In 100V~240V AC, 50/60Hz, out DC 24V 6.5A external power supply (included)

Dimensions and weight

Width
155 mm
Depth
115 mm
Height
22 mm
Net weight
0.4 kg

Additional information

Installation
Freestanding/Shelf
Included Accessories
1x PT-PSW-21CC-KVM, 2x Mounting ears & 4x Screws, 4x Rubber feet, 1x Power adapter (24V, 6.5A), 1x 5-pin Terminal block, 1x Manual
Warranty
5 years

Packaging info

Packaging size
277 x 215 x 71 mm
Packaging weight
1.31 kg
