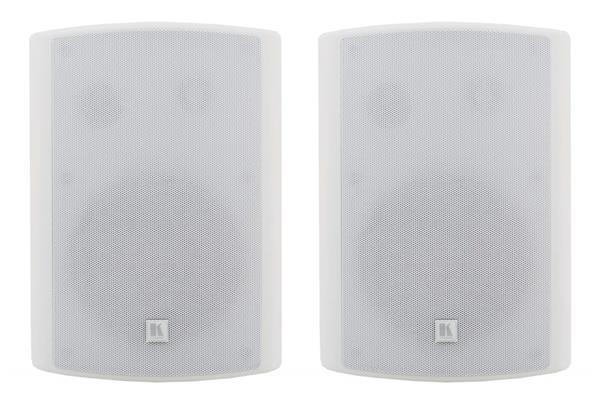

The Tavor 6−O is a pair of 6.5−inch powered two−way speakers designed for indoor wall mounting. The active speaker accepts a line−level stereo input and amplifies it using a built−in amplifier and outputs a speaker signal to the passive speaker.

Key Features:
· Active Loudspeaker - Stereo 2x50W RMS, 2x140W continuous program built−in power amplifier.

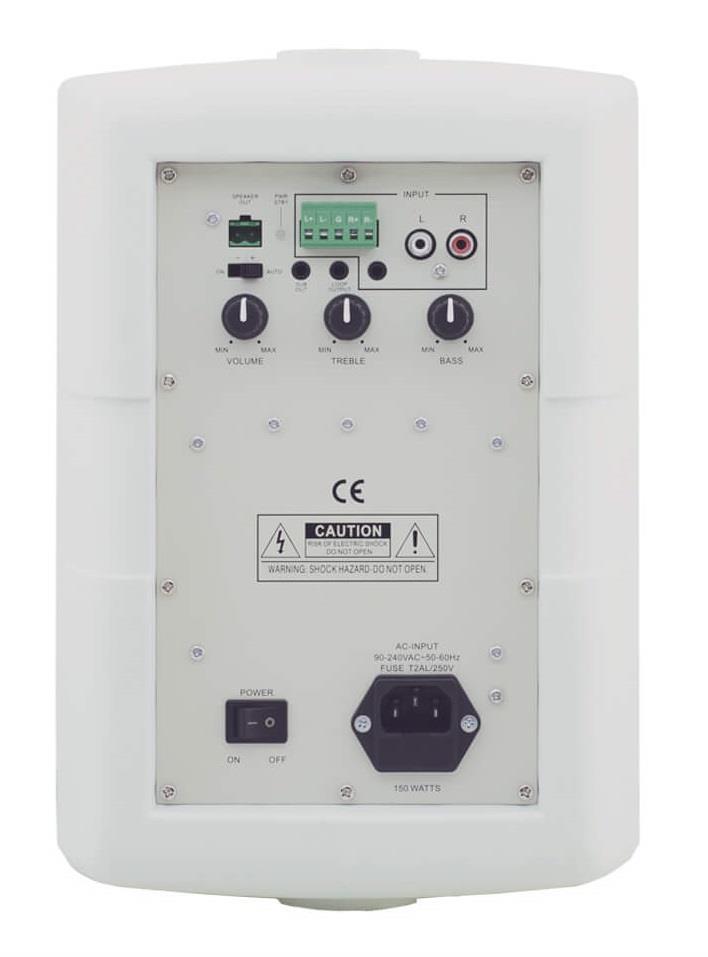

· Inputs - 1 unbalanced RCA, 1 unbalanced 3.5mm mini jack, 1 balanced on terminal block.
· Audio Level Controls - Volume, treble and bass.
· Magnetically Shielded.
· Enhanced Bass Reflex.
· Auto Power - Shuts off when system is not in use, indicated by a LED.
· Automatic Input Voltage Selector - 90 to 240V AC, 50 to 60Hz.
· Indoor Wall Mounting.
· Available in Black or White.
· Mounting Configuration - Active speaker: left, passive speaker: right.
· Weight (Single Speaker) - Active speaker 3.6kg (7.92lbs) approx., passive speaker 2.7kg approx.
· Package - 2 speakers (1 pair); 1 pair of U−shaped rotating mounting brackets with 4 mounting knobs; 4m power cord; 4m loudspeaker cable; 2m 3.5mm to 2 RCA cable.

Applications:
· Home theater
· Conference rooms, boardrooms, classrooms
· Presentation venues



General

Application
On wall
Active/Passive
Active
Color
White

Speaker drivers

LF
6.5 " Polypropylene cone with rubber edge
HF
1 " Silk dome

Audio specifications

Frequency range Min
45 Hz -10dB
Frequency range Max
20,000 Hz -10dB
Sensitivity (1W/1m)
85 dB 1W, 1m
Power handling
50 W RMS, 140W continuous program
Amplifier power
50 W x2 RMS, 2x140W continuous program
70/100V
No
Max SPL
100 dB Continuous, Peak: 108dB

Connections

Audio inputs
3,5mm tele x1 (L/R) Line Unbalanced
Audio inputs
Euroblock line x1 (L/R) Line Balanced
Audio inputs
RCA x1 (L/R) Line Unbalanced
Audio outputs
3,5mm tele x1 (L/R) Line Unbalanced Loop Out, x1 (Mono) Sub Out
Audio outputs
Euroblock spk. cable x1 (Mono) Seaker out to 2:nd speaker
Bluetooth
No
Ethernet
No
Wi-Fi
No

Energy

Power Supply
90–240V AC, 50/60Hz Built-in Power Supply

Dimensions and weight

Width
210 mm
Depth
250 mm
Height
320 mm
Net weight
3.6 kg (Active speaker), 2.7kg (Passive speaker)

Additional information

Outdoor use
No
Included Accessories
1 pair of U–shaped rotating mounting brackets with 4 mounting knobs, 4m power cord, 4m loudspeaker cable, 2m 3.5mm to 2 RCA cable
Warranty
1 years
Amount in delivery
1 Pair

Packaging info

Packaging size
219 x 220 x 40 mm
Packaging weight
7.20 kg

Packaging info (2 pcs)

Packaging size
580 x 500 x 390 mm
Packaging weight
14.80 kg
