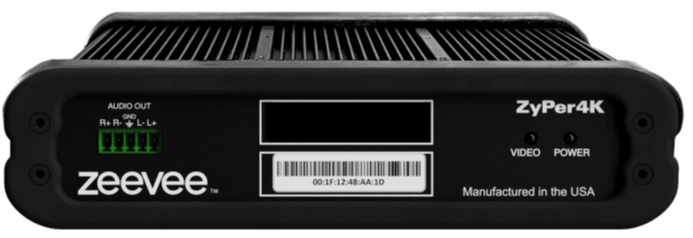

Z4KC2XS−DAU is an HDMI 2.0 Decoder that is part of the ZyPer4K product line. It supports IP streaming over 10Gbit copper PoE+ up to 4KP60 4:4:4 resolution with embedded Dante audio support and HDCP 2.3 encryption at zero−frame latency. Configurable Icron USB allows support between any USB enabled ZyPer4K device. Video compatible with any ZyPer4K Encoder. AC power supply is included but other cables are not.
- ZyPer4K Decoder
- AV over IP
- Uncompressed 4K
- SDVoE
- HDMI output
- RS–232
- USB
- 10G Copper (PoE+)
General
- Modell series
- ZyPer4K-XSE
- Extender type
- Reciever (Rx)
- Technology
- SDVoE
Video specifications
- Max supported resolution
- 4096x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Video operation modes
- Multiviewer Multiview up to 19 sources
- Video operation modes
- Videowall/Tileing Video Wall up to 15x15.

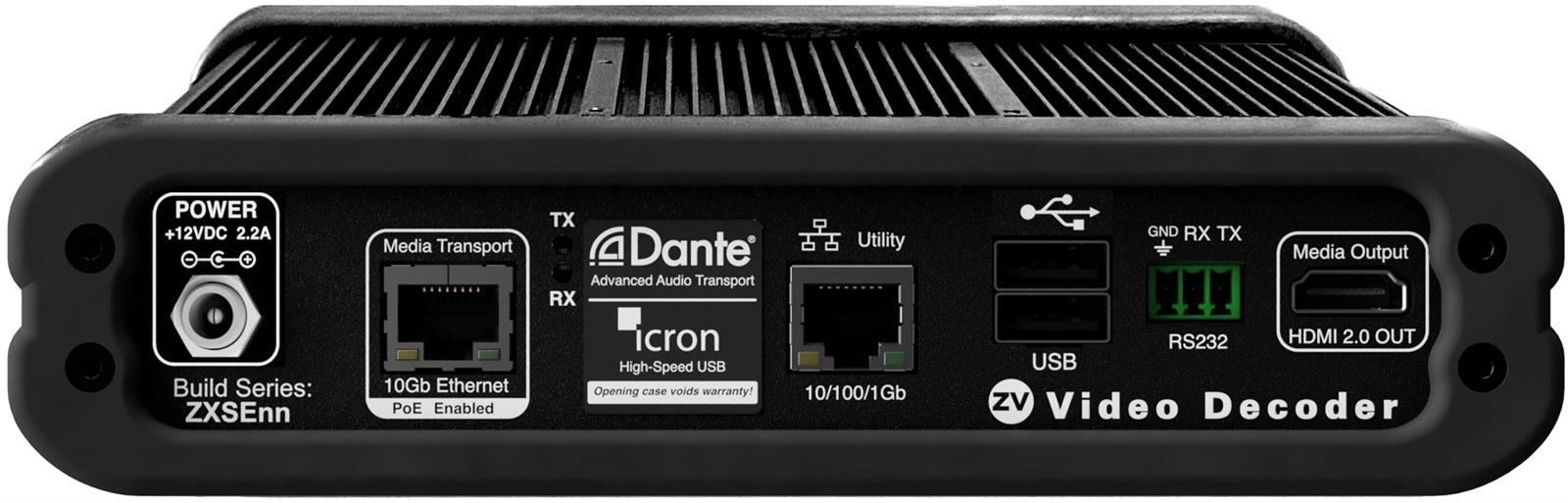

Connections
- Video in
- IP stream (RJ-45)
- Video out
- HDMI HDMI 2.0 with HDCP pass–through
- Audio inputs
- Dante (RJ-45) 2 channel Dante Audio over IP
- Audio outputs
- Dante (RJ-45) 2 channel Dante Audio over IP
- Audio outputs
- Euroblock line Balanced Stereo
- Control
- Ethernet/IP (RJ-45), RS-232
- USB passthrough
- Yes Dual USB 2.0 (USB — A connectors) Note: Full USB 2.0 Support via Icron chipset
Communication
- Switch Data Rate
- 10GbE 10 Gb for Video/Audio/Control with 1 Gb Utility
Energy
- Power Supply
- PoE+ or 12 VDC, 2A (AC adapter included). Power consumption approximately 13 watts
Dimensions and weight
- Width
- 199 mm
- Depth
- 136 mm
- Height
- 48 mm
- Net weight
- 1 kg
Additional information
- Included Accessories
- Power supply
- Warranty
- 3 years
Packaging info
- Packaging size
- 177 x 368 x 88 mm
- Packaging weight
- 1.80 kg
