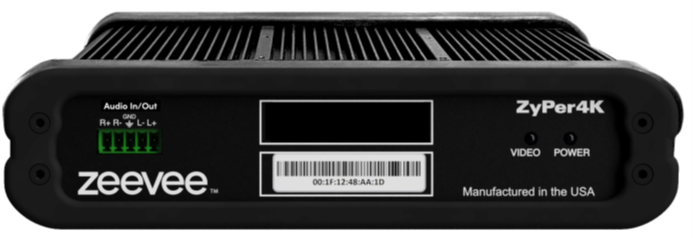

Z4KC2XS−E is an HDMI 2.0 Encoder that is part of the ZyPer4k product line. It supports IP streaming over 10Gbit/copper POE up to 4KP60 4:4:4 resolution with embedded audio and HDCP 2.3 encryption at zero−frame latency. USB supported between ZyPer4K−XS/XR devices. Video compatible with any ZyPer4K Decoder. AC power supply is included but other cables are not.
- ZyPer4K Encoder
- AV over IP
- Uncompressed 4K
- SDVoE
- HDMI and USB–C input with HDMI Loop–out
- USB–C Charging
- 10G Copper (PoE+)
General
- Modell series
- ZyPer4K-XSE
- Extender type
- Transmitter (Tx)
- Technology
- SDVoE
Video specifications
- Max supported resolution
- 4096x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Video operation modes
- Multiviewer Multiview up to 19 sources
- Video operation modes
- Videowall/Tileing Video Wall up to 15x15.

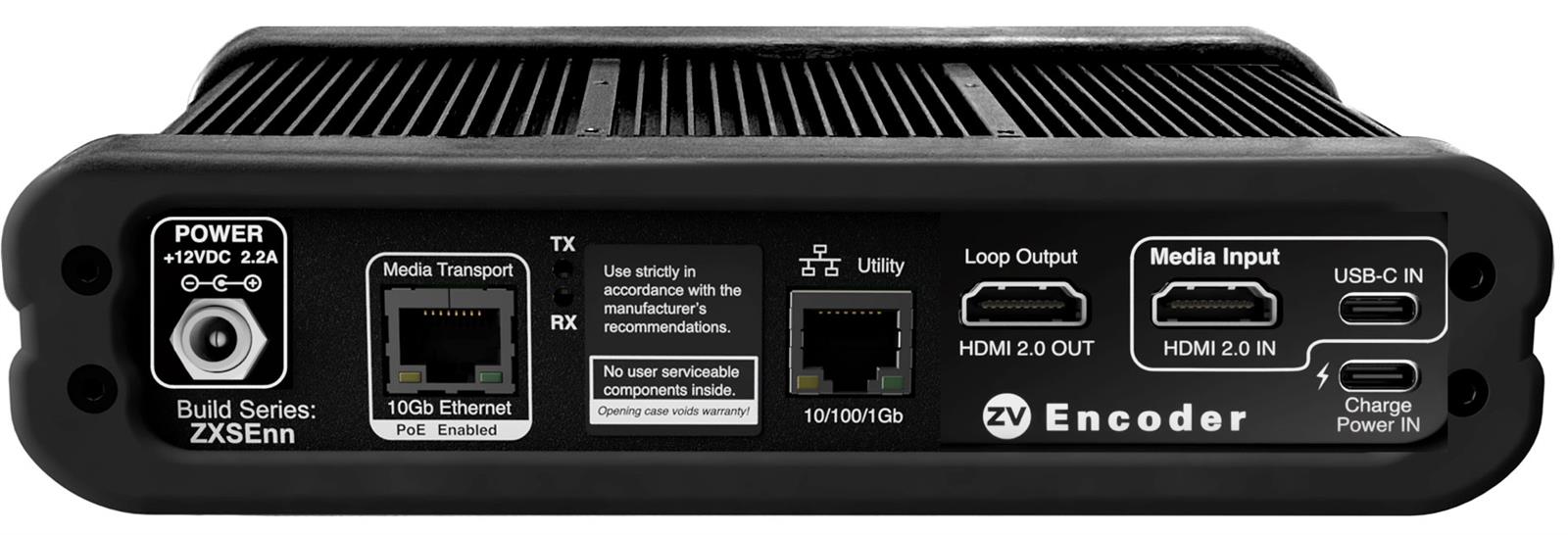

Connections
- Video in
- HDMI HDMI 2.0 with HDCP pass–through
- Video in
- USB-C with DP Alt Mode 1.3 Support. Charging up to 60W (with optional chartger connected)
- Video out
- HDMI HDMI 2.0 (loop-out of active video input)
- Video out
- IP stream (RJ-45)
- Audio inputs
- Euroblock line Balanced Stereo
- Audio outputs
- Euroblock line Balanced Stereo
- Control
- Ethernet/IP (RJ-45) 10 Gb for Video/Audio/Control with 1 Gb Utility
- USB passthrough
- Yes USB 2.0 (USB-C connector) Note: HID Support Only
Communication
- Switch Data Rate
- 10GbE 10 Gb for Video/Audio/Control with 1 Gb Utility
Energy
- Power Supply
- PoE+ or 12 VDC, 2A (AC adapter included). Power consumption approximately 13 watts
Dimensions and weight
- Width
- 199 mm
- Depth
- 136 mm
- Height
- 48 mm
- Net weight
- 1 kg
Additional information
- Included Accessories
- Power supply
- Warranty
- 3 years
Packaging info
- Packaging size
- 177 x 368 x 88 mm
- Packaging weight
- 1.80 kg
