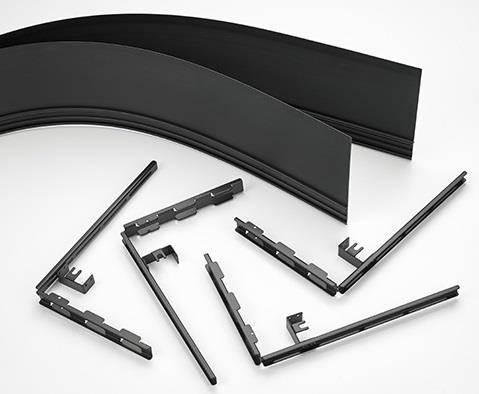

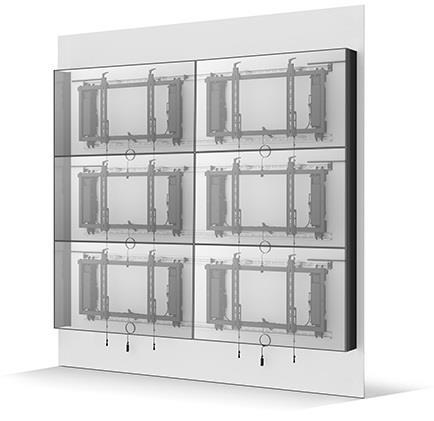

The CSACK06B provides aesthetic as well as tamper-resistant coverage for the sides of single- or multiple-display configurations utilizing the ConnexSys channel strut. The brackets connect the cover material directly to the channel strut so no extra drilling into the wall is required. The black color blends well with display sides and bezel, but it can also be painted to match the desired color for the space. The product can be cut to size with hand or power tools that are typically present at an AV install. The unique living hinge design allows for easy installation and access for service. Shipped in 84” lengths.

Key Features

  • Channel Strut brackets provide installation without additional drilling into walls
  • Living hinge provides access for installation and for maintenance while maintaining tamper resistance
  • Can be cut to meet a specific length, tilt and/or depth for custom installs
  • Ships with two (2) 2134 mm covers


General

Color
Black

Measurements and weight

Width
154 mm
Height
2,134 mm

Additional information

Warranty
10 years

Packaging info

Packaging size
673 x 521 x 216 mm
Packaging weight
4.50 kg
