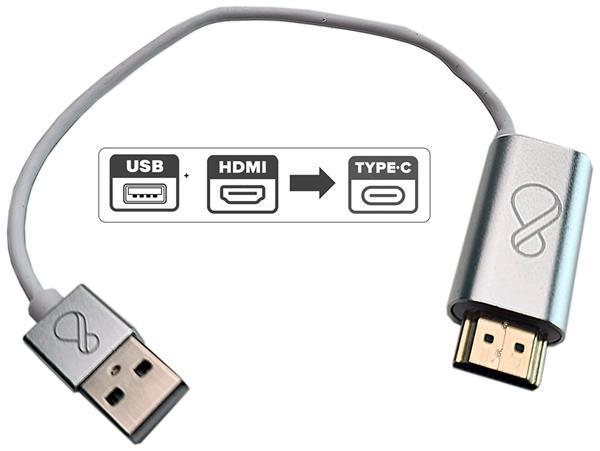

Legacy devices that lack USB-C connection can upgrade themselves using the Ochno HDMI Adapter. Using the adapter the legacy products can connect to docking stations and monitors. Connects to Ochno Power Conference, Ochno Power Desktop and third party products using the alternate-mode DisplayPort for video technology.
The adapter is available both with and without USB-A connection to connect keyboard, mouse or USB based videoconferencing devices.
It can be installed as a "hat" directly on the USB-C cable. In the case you prefer to offer separate HDMI and USB-A cables on the table, the adapter is directly connected to the Ochno Power Conference unit located under the table.
It also makes it possible to connect wireless presentation systems etc. like Barco ClickShare to the Ochno Power Conference.
Input specification:
HDMI 1.4-2.0, up to 4Kx2K@60Hz, HDCP 1.4/2.2
USB 2.0
Output specification:
USB Type-C Alternate mode Display Port 1.2, up to 4Kx2K@60Hz, Max bandwidth 5.4 Gbit/s (HBR2)
General
- Cable type
- Adaptor
- Conductor/Technology
- Copper
- Low smoke/halogen free
- No
Video
- Connection from
- HDMI 2.0 Male
- Connection from
- USB-A 2.0 480Mbit/s, Male
- Connection to
- USB-C Alternate mode DP 1.2 Female
- Max resolution
- 3840x2160
- Refresh rate
- 60 Hz
Dimensions and weight
- Length
- 4.4 cm
Additional information
- Color
- Silver
- Warranty
- 1 years
Packaging info
- Packaging size
- 100 x 100 x 100 mm
- Packaging weight
- 36 g
