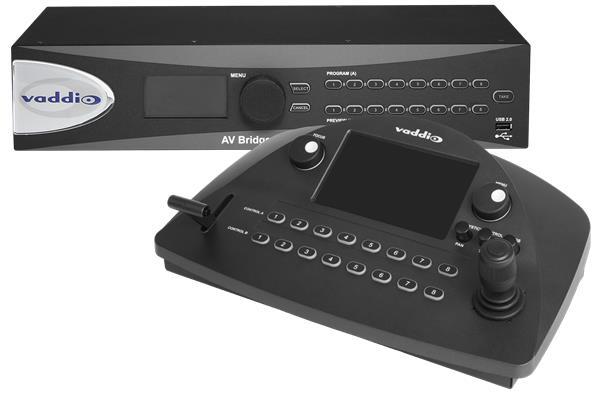

Designed specifically for live production applications. System includes AV Bridge MatrixMIX Switcher and PCC MatrixMIX Controller.
Key Features:
- 8x2 video mixer that also provides multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel

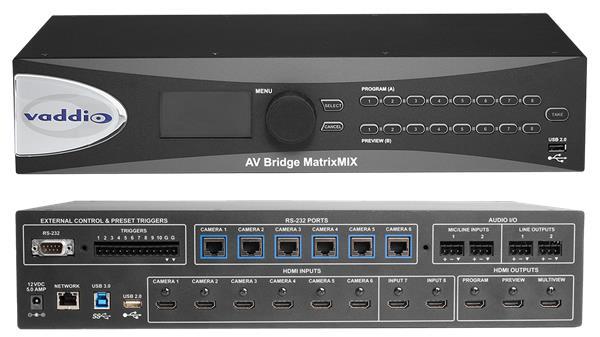

The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.
The system's PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications:
Use as a production switcher in a live event application (live streaming switcher)
Configure as a local presentation switcher for a lecture capture application in a larger lecture hall
Configure for a PC-based collaboration session
Because the AV Bridge MatrixMIX can be controlled remotely, an operator can use it in large enterprise and higher education applications where a centralized control center is used to control multiple AV rooms
Simple to operate
Because it is easy to use, an IT staffer or volunteers at a house of worship can create a first-rate production without extensive training. With the AV Bridge MatrixMIX and the TeleTouch MultiViewer, the user simply touches the screen for live video production to choose which camera scene to use and it goes live.
General
- Application
- Conferencing Hub, Switch
Video specification
- Resolution max out
- 1920x1080
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 8
- Video outputs
- 3
- Video in
- HDMI x8 (6 camera, 2 presentation inputs)
- Video out
- HDMI x3
- Video out
- IP stream (RJ-45) RTSP IP-streaming
- Video out
- USB-B 3.0 for connecting a PC with soft codecs for ex. conferencing
- Audio inputs
- Euroblock line x2 Balanced, for Mic/Line inputs
- Audio outputs
- Euroblock line x2 Balanced, for Line output
Functions
- Scaler
- No
- Video operation modes
- Multiviewer, PiP - Picture in Picture
- USB passthrough
- No
- Control
- Ethernet/IP (RJ-45), USB-B, Web interface
Energy
- Power Supply
- 12VDC, 5A External POS
Dimensions and weight
- Width
- 432 mm
- Depth
- 279 mm
- Height
- 126 mm
- Net weight
- 3.3 kg
Additional information
- Installation
- 19" Rack, 3U, Table
- Included Accessories
- AV Bridge MatrixMIX, PCC MatrixMIX, 12V 5A POS w. AC cord set(s), Mid-span PoE+ pwr injector w. AC cord set(s), 2x rack ears, 4x 3-pos phoenix connectors, 12-pos phoenix connector, 1.83m USB 3.0 A-B cable, 3m cat-5e cable, QS Guide
- Warranty
- 3 years
Packaging info
- Packaging size
- 355 x 330 x 330 mm
- Packaging weight
- 3.63 kg
