Datasheet

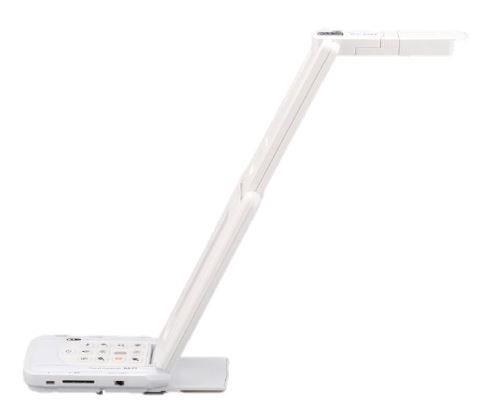

Portable 4K visualizer with multiple outputs
As an interface between the analogue and digital world, ELMO MX P 3 enhances your presentation with or without a computer It allows you to show paper documents, 3 D objects or anything you
want to highlight in detail to the whole audience.

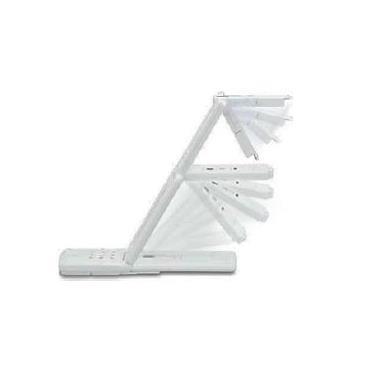

It is super slim and light weight Take it anytime whenever you wish to make your best presentation and save them with a SD Card.

Key Features:
• Up to 4K resolution
• 13M CMOS Sensor
• 16x Digital Zoom
• Only 22mm Slim & 460g Light
• USB, HDMI & RGB outputs



General

Camera type
Document camera
Color
White

Image specification

Max Resolution (Out)
3840x2160
Framerate
30 FPS
Optical zoom
0 x
Digital zoom
16 x
Min. working distance
100 mm

Functions

Programmable presets
No
Ceiling installation/Flip image
No
Auto framing/tracking
No

Audio specification

Built-in microphone
Yes
External microphone
No
Built-in speaker
No
External speaker
No

Connections

Video out
HDMI, USB Mini-B, VGA
USB standard
3.0

Energy

Power Supply
DC5V External Power Supply

Dimensions and weight

Width
290 mm
Depth
82 mm
Height
22 mm (Folded)
Net weight
0.46 kg

Additional information

Included Accessories
USB 3.0 cable, AC adapter, Manual
Warranty
5 years

Packaging info

Packaging size
343 x 170 x 200 mm
Packaging weight
962 g

Packaging info (8 pcs)

Packaging size
650 x 350 x 200 mm
Packaging weight
9.00 kg
