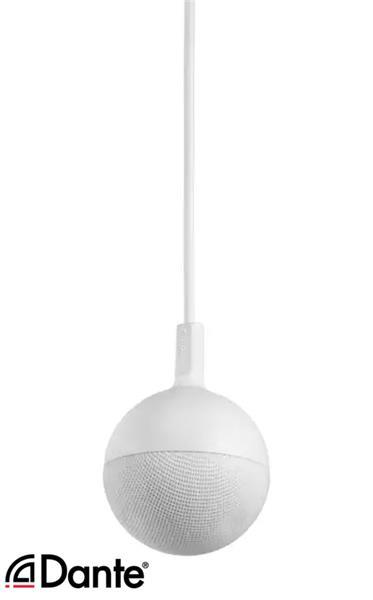

EasyIP CeilingMIC D overhead microphones with Dante networked audio deliver professional audio quality for superior conferencing experiences.
Key Features:
- Dante networked audio signal for easy system routing
- Three-element array head with LED mute status indicator
- Design allows for custom ceiling drop cable length and easy installation
- Built-in digital signal processor (DSP)
EasyIP CeilingMIC D complements most interiors with its sleek design featuring smooth lines and quality acoustical fabric wrap. These overhead microphones are a great alternative to a custom installation or table microphones. Ceiling-mounted microphones create a clean look in your conference room or meeting space and eliminate table clutter. Vaddio's EasyIP CeilingMIC D is ideal for drop tile ceilings and open-ceiling environments as well.
With full 360-degree pickup coverage, one EasyIP CeilingMIC D provides excellent coverage for an average size meeting room table. Ensure clear coverage of all meeting participants in larger spaces with multiple ceiling microphones - the number of microphones is only limited by the availability of network switch ports. Centrally manage microphone routing and system configuration with free Dante Controller software.
Each EasyIP CeilingMIC D unit delivers the performance of three microphone elements built into a single pendant hanging enclosure. Each unidirectional cardioid microphone element is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering and automatic gain control (AGC). The DSP in the interface box receives its AEC reference from the far end and applies it to individual mic elements, so conference calls are crystal-clear on both ends of the conversation. Configure and fine-tune the DSP easily with Vaddio’s desktop configuration tool.

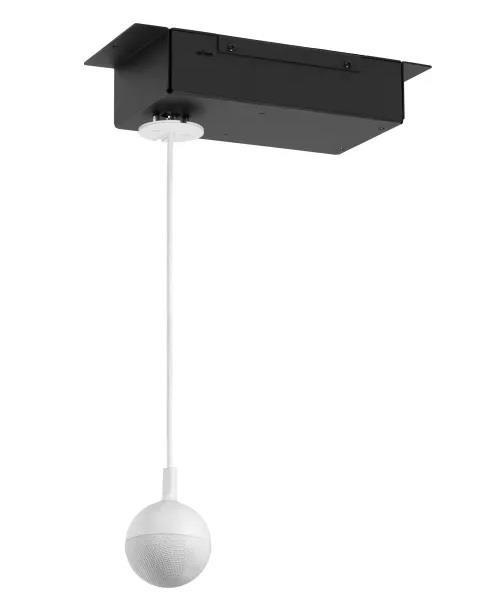

With its plug-and-play design, installation is as simple as connecting a Cat-5e cable between the network switch PoE port and the EasyIP CeilingMIC D microphone receiver. Power, control and audio are all incorporated into the single cable.
Cable Lenght:
The CeilingMIC pendant includes a 0.9 meters adjustable drop cable and with a standard RJ45 jack connection, the pendant can be extended to a total length of 4.6 meters from the interface box.
General
- Microphone application
- Ceiling
Audio specifications
- Audio pickup range
- 4.5 m
- Frequency range Min
- 100 Hz
- Frequency range Max
- 16,000 Hz
- Dynamic range
- 90 dB
Connections
- Audio outputs
- Dante (RJ-45)
- Cable lenght
- 0.9 m Max cable lenghts: Drop cable: 4.6m, Interface box to host device: 30m
Energy
- Power Supply
- PoE, 15W allocated, 2W typical use
Dimensions and weight
- Width
- 6.3 mm
- Depth
- 6.3 mm
- Height
- 6.3 mm
- Net weight
- 0.9 kg
Additional information
- Color
- White
- Included Accessories
- Mic, Pendant, Interface box, Quick Start Guide, 0.9 m White or Black Cat5e Cable, Ceiling Mounting Hardware
- Warranty
- 2 years
- Amount in delivery
- Single unit
Packaging info
- Packaging size
- 660 x 180 x 180 mm
- Packaging weight
- 2.70 kg
