TP−590T is a high−performance, long−reach HDBaseT 2.0 transmitter for 4K60Hz (4:2:0) HDMI, USB, RS−232, and IR signals over twisted pair. TP−590T converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Key Features:
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–590T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- Flexible USB 2.0 Extension — An active USB host is connected at either the transmitter or receiver side. USB 2.0 signals are extended between the transmitter and receiver, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost–effective Maintenance — Status LED indicators for HDMI, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.

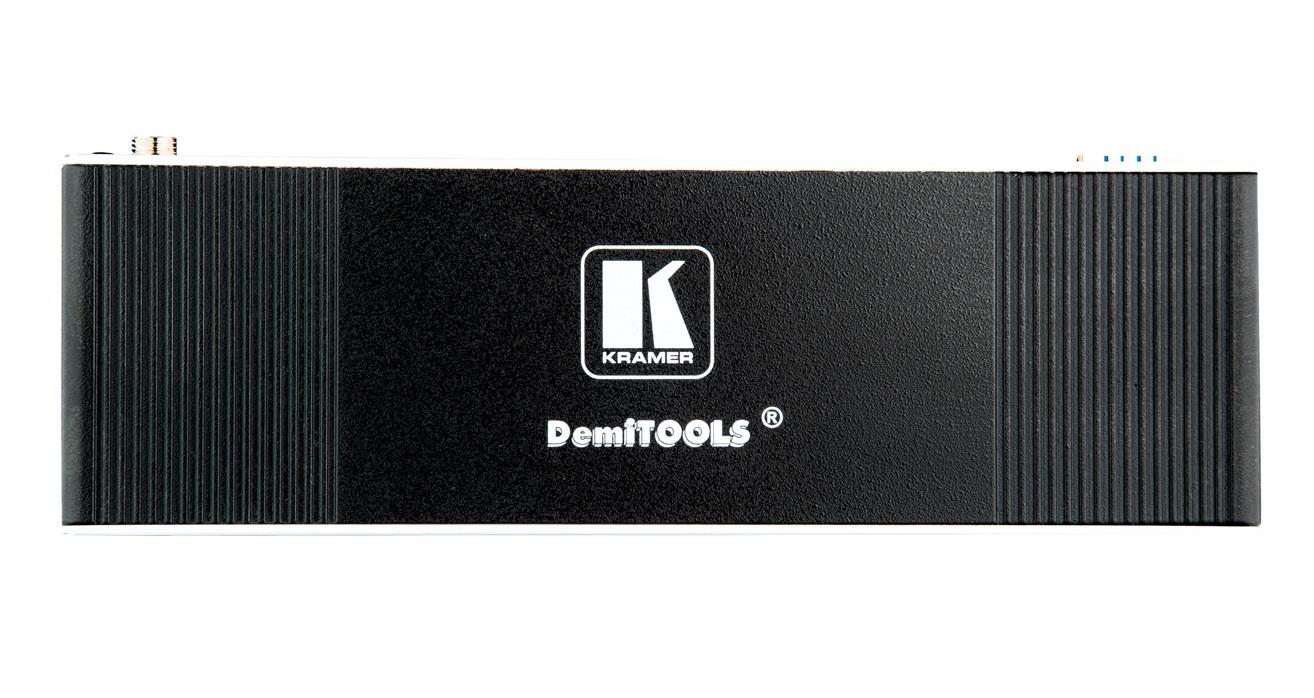

- Easy and Elegant Installation — Compact DemiTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Applications:
- Corporate — Hybrid and online meetings
- Education — Hybrid and online learning and training
- Any AV and USB room extension applications such as conference rooms, boardrooms, and training facilities
General
- Extender type
- Transmitter (Tx)
- Technology
- HDBaseT 2.0
- Range (Max)
- 70 m at 1080p 60Hz, 40m at 4K 60Hz (4:2:0)
Video specification
- Max supported resolution
- 3840x2160 10.2Gbps bandwidth (3.4Gbps per graphic channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- No
Connections
- Video in
- HDMI
- Video out
- HDBaseT (RJ-45) with HDCP 2.3 support
- Control
- IR cable connection, RS-232
- USB passthrough
- Yes 1.1 and 2.0 compliance
Energy
- Power Supply
- 5V DC, 4A External Power Supply, Consumption: 3.2A
Dimensions and weight
- Width
- 190.5 mm
- Depth
- 59.6 mm
- Height
- 2.74 mm
- Net weight
- 0.5 kg
Additional information
- Mounting
- 19" Rack, 1U With RK-T2B-B rack adapter (option)
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power adapter, bracket, rubber feet
- Warranty
- 7 years
Packaging info
- Packaging size
- 163 x 124 x 91 mm
- Packaging weight
- 803 g
