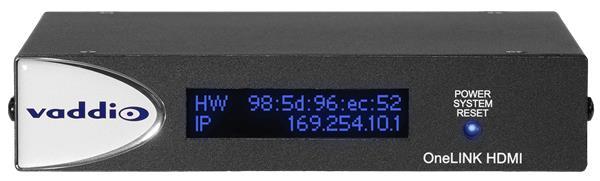

OneLINK HDMI Receiver for Vaddio HDBaseT cameras allowing for Power/Video/Control over a single Cat. 5 up to 100m.
Compatible with RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD, and DocCAM 20 HDBT.
Key Features:
· More flexibility in camera placement
· HDBaseT interface extends power, video and control up to 328 ft (100 m)
· Plug and play usability
· Intuitive browser-based user interface for configuration and system administration
In the box:
• OneLINK HDMI Interface
• Quick-Start Guide
• 48V power supply with AC cord set(s)
• EZCamera RS-232 Control Adapter
General
- Extender type
- Reciever (Rx)
- Technology
- HDBaseT 1.0 Class B
- Range (Max)
- 100 m
Video specification
- Max supported resolution
- 1920x1080
- Refresh rate
- 60 Hz
- Scaler
- No

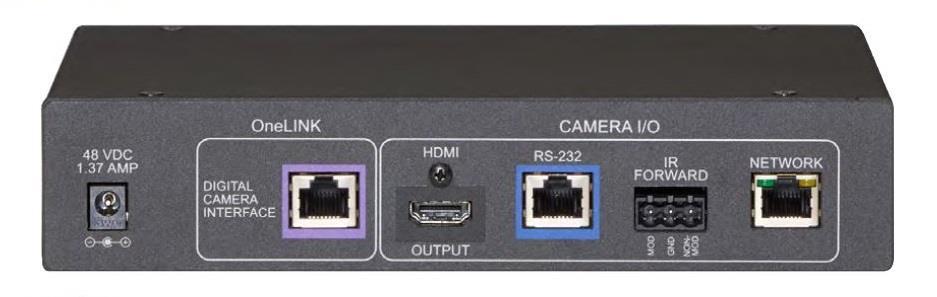

Connections
- Video in
- HDBaseT (RJ-45)
- Video out
- HDMI
- Control
- Ethernet/IP (RJ-45) Telnet
- Control
- IR cable connection, RS-232
- USB passthrough
- No
Energy
- Power Supply
- 12V DC, 3.0A External Power Supply
Dimensions and weight
- Width
- 213 mm
- Depth
- 152 mm
- Height
- 44 mm
- Net weight
- 0.7 kg
Additional information
- Mounting
- 19" Rack, 1U with rack adapter (optional)
- Mounting
- Freestanding/Shelf
- Mounting
- Table Under table mounting with optional bracket
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 406 x 406 x 177 mm
- Packaging weight
- 4.11 kg
