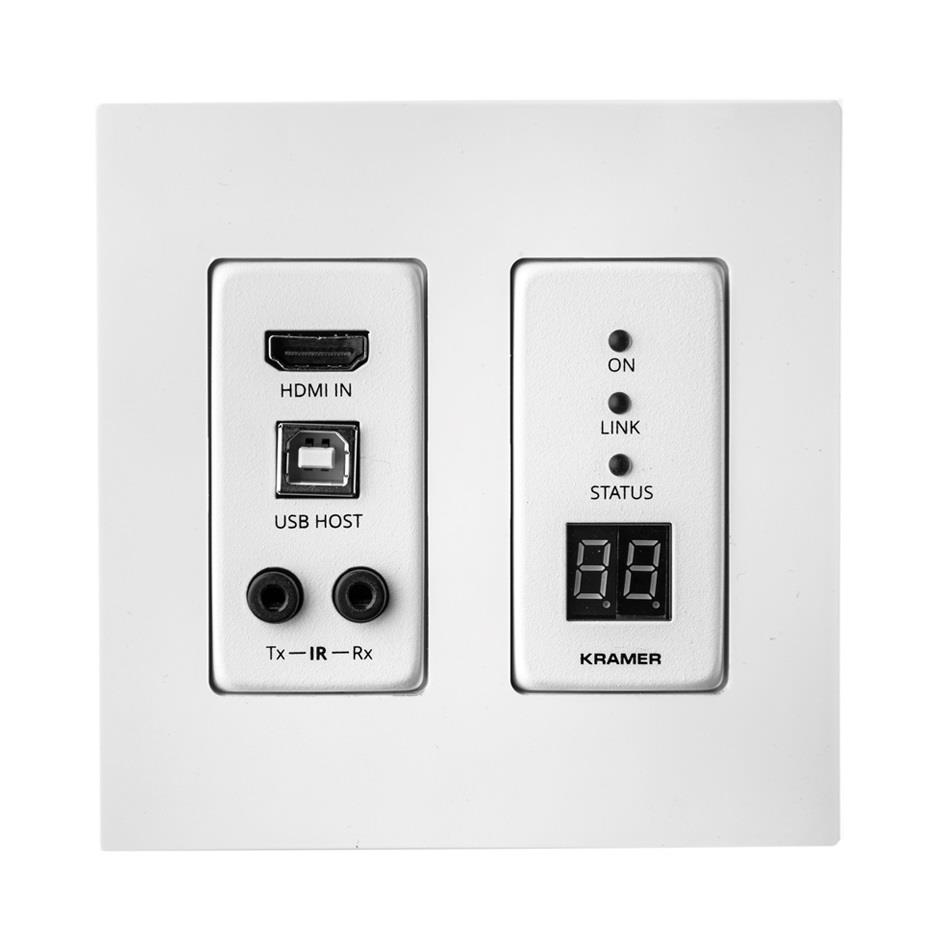

WP−EN6 is a 2−gang (US) wall−plate video encoder that provides streaming of 4K@60Hz (4:2:0), HDCP 2.2, HDMI video, IR, RS−232, and USB signals over an IP network in unicast (one−to−one) or multicast (many−to−many) configurations.
Key Features:
- High Resolution Video Streaming — 4K@60Hz (4:2:0) HDMI with HDCP 2.2 compliance.
- Maximum Compatibility — Fully standard and compliant JPEG 2000 codec, enables compatibility with other software and hardware encoders. Open encoding enables software decoding through VLC™ player software.
- Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter (not included).
- Standard Ethernet Network Operation — 10M/100M/1000M.
- Selectable Streaming Mode — Unicast or multicast through RTSP (Real Time Streaming Protocol).
- Flexible Video Wall Setups — 1 to 256 screens.
- Virtualization — IR, USB, RS–232 over IP.
- Network — Switch 1G multicast IGMP snooping managed layer 2.
- Easy Installation — Fits into standard US 2–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
Applications:
- Sports Bars
- Schools and Universities
- Corporate offices
- Government
- Airports and other public venues with AV distribution systems of one or more sources and many displays
- Long–distance transmission of signals using existing wires and infrastructure
General
- Extender type
- Transmitter (Tx)
- Technology
- JPG 2000 Unicast and multicast through RTSP
Video specifications
- Max supported resolution
- 4096x2160
- Refresh rate
- 60 Hz
- Scaler
- Yes Built in scaling and cropping for flexible display of source content on the decoder output
- Video operation modes
- Videowall/Tileing Up to 16x16
Connections
- Video in
- HDMI
- Video out
- IP stream (RJ-45)
- Control
- Ethernet/IP (RJ-45), IR cable connection, RS-232, Web interface
- USB passthrough
- Yes KVM over IP
Communication
- Req. Network Switch
- 1G multicast, IMGP snooping non–blocking, Layer 2
Energy
- Power Supply
- PoE, Consumption: 400mA max. 12v external DC power supply (optional)
Dimensions and weight
- Width
- 115.9 mm
- Depth
- 51 mm
- Height
- 114.3 mm
- Net weight
- 0.2 kg
Additional information
- Installation
- Wall
- Included Accessories
- White Decora® or similar frame set
- Warranty
- 7 years
Packaging info
- Packaging size
- 120 x 60 x 120 mm
- Packaging weight
- 200 g
