PT−12 is a CEC−enabled TV/display ON/OFF controller and extended EDID processor for HDMI signals up to 4K@60Hz (4:2:0) resolution. When PT−12 detects an HDMI cable plug, it automatically turns on the connected display, and automatically shuts down the display when signal loss is detected. PT−12 is an EDID processing tool for controlling the EDID functions.
Key Features:
- Plug–and–Play Display Operation — Simplifies meeting presentation operation by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
- High–Performance HDMI Controller — Supports pass–through of signals up to 4K@60Hz (4:2:0) resolution with user control on signal capabilities and functions.
- HDCP Authorization — Controlled device appearance as HDCP authorized to allow unsecured content display by all market–available computer sources.
- Video Signal Control — Controlled color depth attributes and color space forcing capabilities of passing–through video signal, along with EDID locking configuration to ensure proper video display.
- Audio Signal Control — Controlled audio–channels limitation of passing–through audio signal.
- Display Control — Display auto shut–down upon no signal detection with user–defined delay, as controlled by end–user settings.

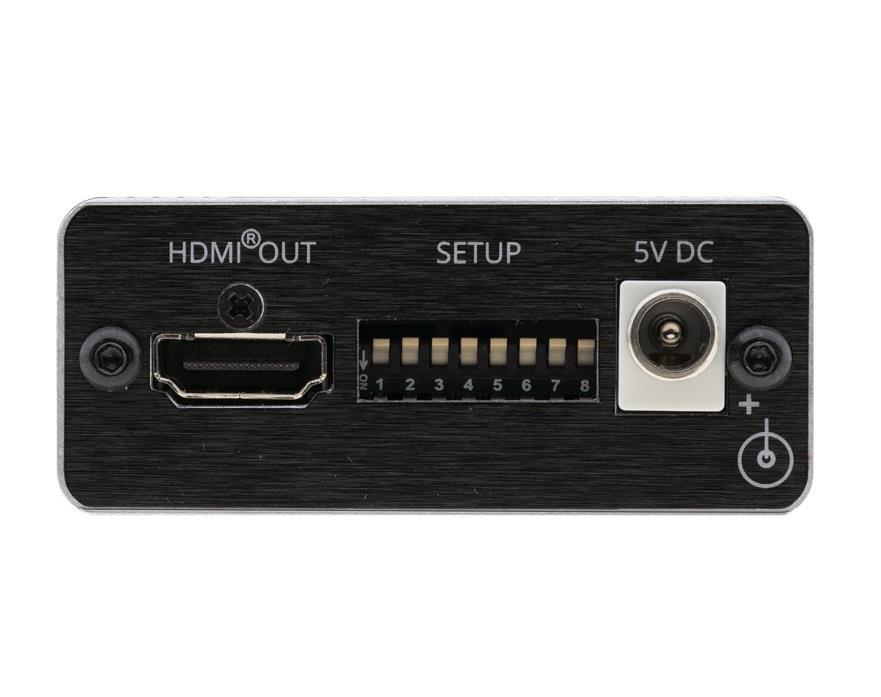

- Simple Operation — DIP–switches available for simple controller functions by end–user.
- Cost–Effective Maintenance — Status LED indicators for HDMI ports and power facilitate easy local maintenance and troubleshooting. Local device management and firmware upgrade via mini–USB port and DIP–switches, ensure lasting, field–proven deployment.

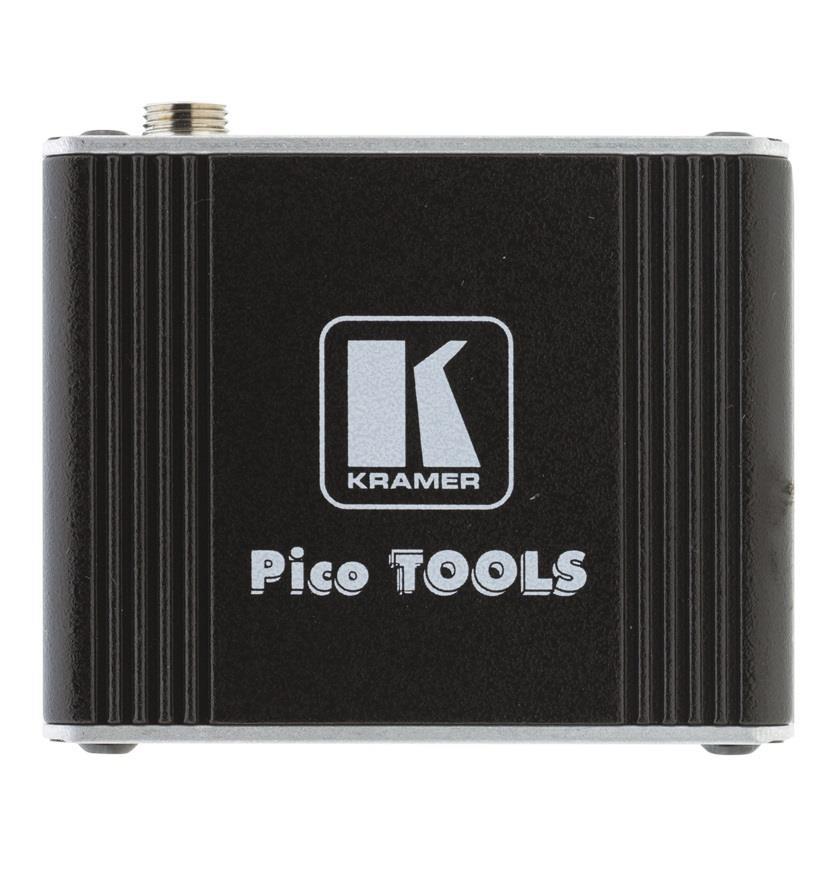

- Easy Installation — Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended Kramer rack adapter.
Applications:
- Plug–and–play auto TV ON/OFF controller
- Adapting new devices compatibility with older AV infrastructure
- Supporting AV service troubleshooting
General
- Model
- PT-12
- Utök. text för namn sist
- / HDMI CEC Controller
- Application
- EDID processor
Image specification
- Resolution
- 3840x2160
- Refresh rate
- 60 Hz
- Chroma subsampling
- 4:2:0
Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- HDMI HDCP 1.4
- Video out
- HDMI HDCP 1.4
Functions
- Scaler
- No
- USB passthrough
- No
- Control
- DIP-Switch
Energy
- Power Supply
- 5V DC, 315mA External Power Supply
Measurements and weight
- Width
- 62.2 mm
- Depth
- 51.8 mm
- Height
- 24.4 mm
- Net weight
- 0.1 kg
Various
- Included Accessories
- Power supply, bracket kit
- Warranty
- 7 years
Packaging info
- Packaging size
- 157 x 120 x 87 mm
- Packaging weight
- 532 g
