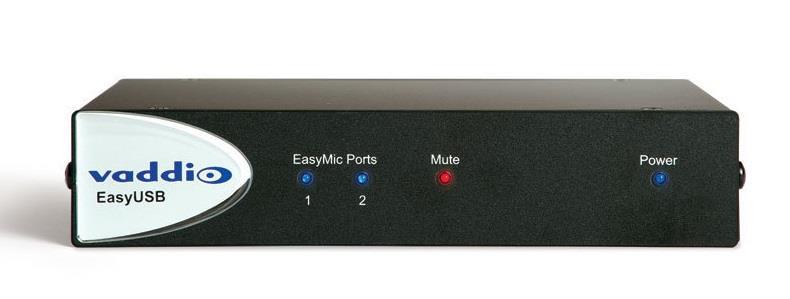

Integrated audio mixer and amplifier that connects to a PC as a single microphone and speaker channel.
Key Features:
- Supports up to two EasyMic Devices (MicPOD or Ceiling MicPOD) using RJ-45 & Cat. 5 for audio, control, and power (100 feet)
- 2 x 20 Watt Class-D amplifier with 2-Pin Euro Terminal
- Connects to PC as a USB sound device
- USB 2.0 Audio Class Device (UAC) / no drivers required
- Auxiliary Line Input and Output
- Unbalanced Line Input and Output (RCA)
The EasyUSB Mixer/Amp supports up to two EasyTALK™ MicPOD™ microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers or LCD displays. The EasyUSB Mixer/Amp also has a 2 x 20 watt integrated audio amplifier for connection to external 4/8-Ohm speakers.
The EasyTALK USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional software or drivers. Instead, you just plug in each device and they work automatically with any operating system — Windows, Mac, Linux — you name it. It’s completely driver-free. They are designed as a truly plug-and-play audio solution for software-based conferencing systems.
This Package Includes:
- EasyUSB Mixer/Amp Interface
- Quick-Start Guide
- 18V, 2.75A Power Supply
- 2x 2-position phoenix-style connectors
- 4x rubber feet for bottom of EasyUSB Mixer/Amp unit if not rack-mounted
- 1.83m USB 2.0 cable, type A to B
- EZ Camera RS-232 Control Adapter
General
- Amplifier type
- Compact amplifier, Mixer amplifier
Audio specification
- Amp channels
- 2
- Power/ch (4/8 Ohm)
- 20 W 8 Ohm
- Distortion THD
- 0.02 %
- Built-in DSP
- No

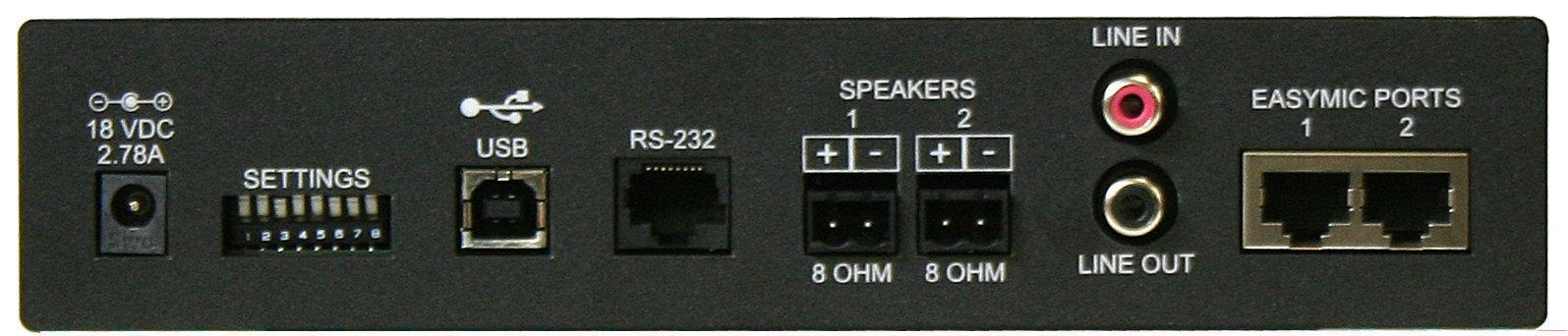

Connections
- Audio inputs
- EasyMic Port (RJ-45) x2
- Audio inputs
- USB-B x1 USB2.0 (In/Out)
- Audio outputs
- Euroblock spk. cable x2
- Audio outputs
- RCA x2 (L/R) Line Unbalanced
- Audio outputs
- USB-B x1 USB2.0 (In/Out)
- Bluetooth
- No
- WiFi
- No
- Control
- DIP-Switch, RS-232
Energy
- Power Supply
- 110-230V AC, 18V DC, 2,75A external power supply
- Cooling method
- Air passive (fanless)
Dimensions and weight
- Width
- 212.73 mm
- Depth
- 152.4 mm
- Height
- 43.7 mm
- Net weight
- 0.91 kg
Additional information
- Installation
- 19" Rack, 1U With optional rack adapter
- Installation
- Freestanding/Shelf
- Installation
- Table Under table installation with optional brackets
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 417 x 248 x 91 mm
- Packaging weight
- 1.74 kg
- Barcode
- 840077501860
