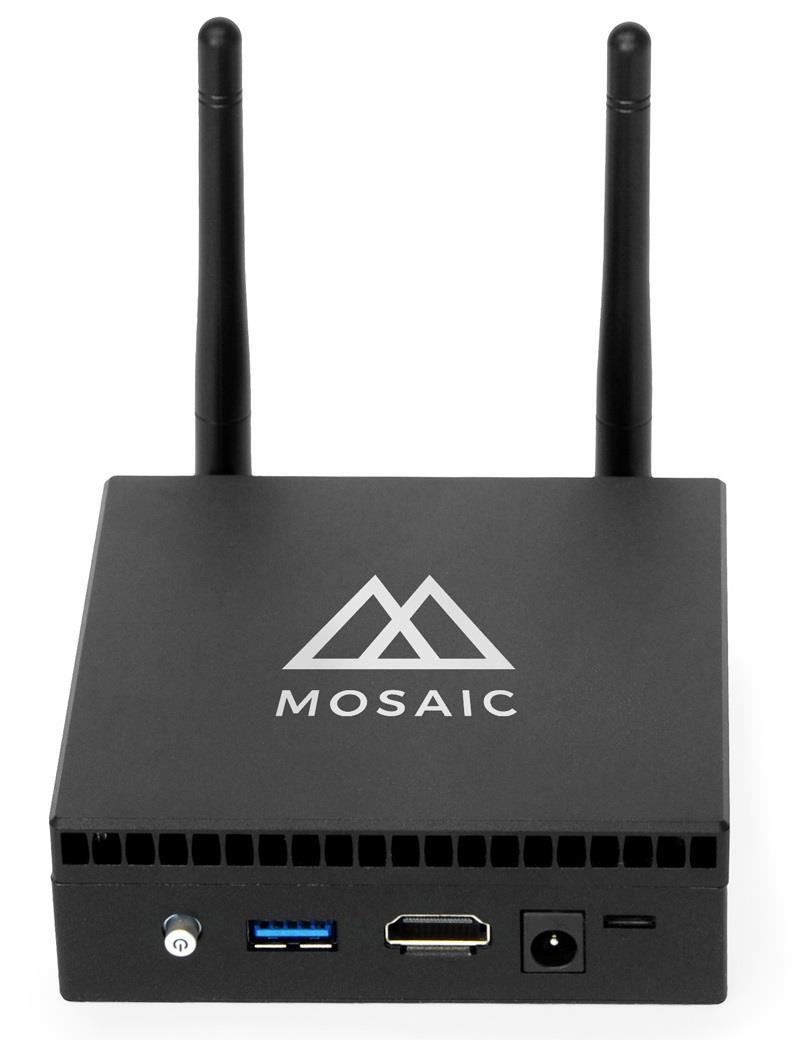

The Mosaic Connect Box brings wireless presentation to meeting rooms and huddle spaces
Mosaic Connect Box is the simple to use sharing device from DisplayNote and NEC. With one click you‘re wirelessly presenting. It works with all modern laptops, tablets, phones and offers support for your browser.
Any attendee can share their screen without the need to pass cables, swap dongles or remove anyone else from the session. With a dedicated app for guests and extended browser support, your guests can also connect and present as easily as you do. Mosaic Connect Box supports dual network connectivity and enables collaboration among users on primary and guest networks.
It works securely with any network configuration, including corporate Wi-Fi, guest Wi-Fi, mobile data, a hotspot or any combination.
Key Features:
• Guest friendly - With a dedicated app for guests and extended browser support, anyone can connect and present.
• Share more than just your screen - During a session, attendees can share video, links and files with each other without ever having to leave the app.
• Secure and compliant - Every Mosaic Connect meeting is protected by a unique ID, 4-digit PIN and is encrypted end to end.

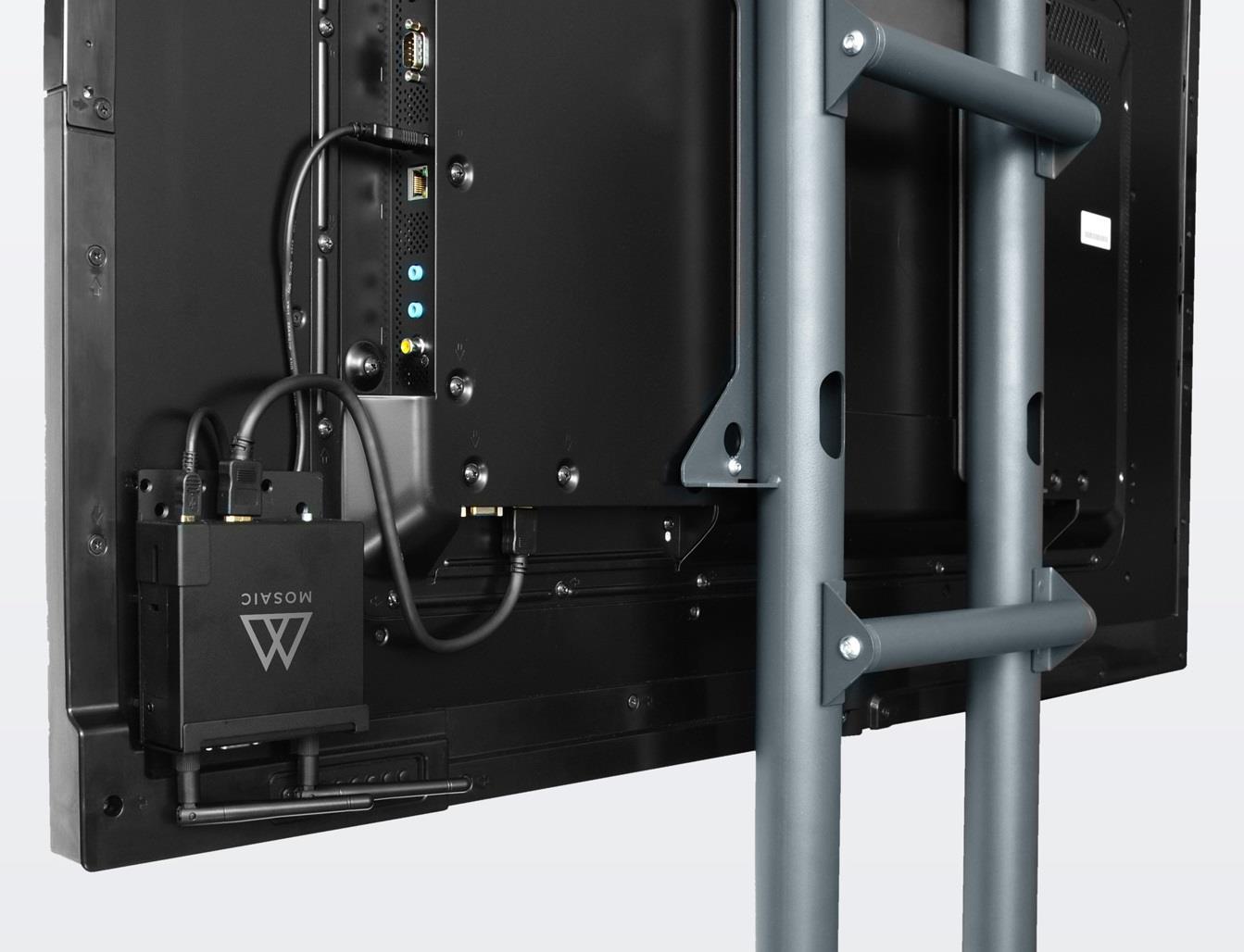

• Professional installation - Simple device fixing to the rear of the display and the possibility to power up directly from the display’s USB output (with NEC C Series large format displays).
• High set-up flexibility - Wide connectivity options include 3 USB ports, HDMI, Micro SD Card slot, Gigabit Ethernet and integrated WiFi with 2.4 and 5GHz and Bluetooth 4.2 support.
General
- Application
- Wireless Presentation
compatibility
- Compatibility PC
- Yes
- Compatibility Mac
- Yes
- Compatibility iOS
- Yes
- Compatibility Android
- Yes
- Compatibility Chromebook
- No
Connections
- Video out
- HDMI x1
Communication
- WiFi
- Yes
- WiFi Standard
- IEEE 802.11 a/b/g/n/ac
- Dual/guest network
- Yes
Energy
- Power Supply
- Universal power supply 5V/4A
- Consumption Typical
- 3.9 W
- Consumption Max
- 8.3 W
Dimensions and weight
- Width
- 93 mm
- Depth
- 97 mm
- Height
- 32 mm
- Net weight
- 0.7 kg
Additional information
- Included Accessories
- Startup Manual, Support DVD, Universal power supply 5V/4A, HDMI cable, USB cable, mounting bracket
- Warranty
- 3 years
