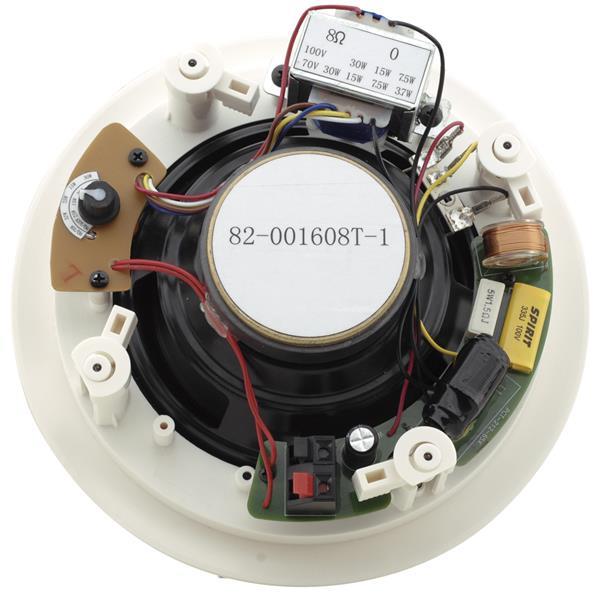

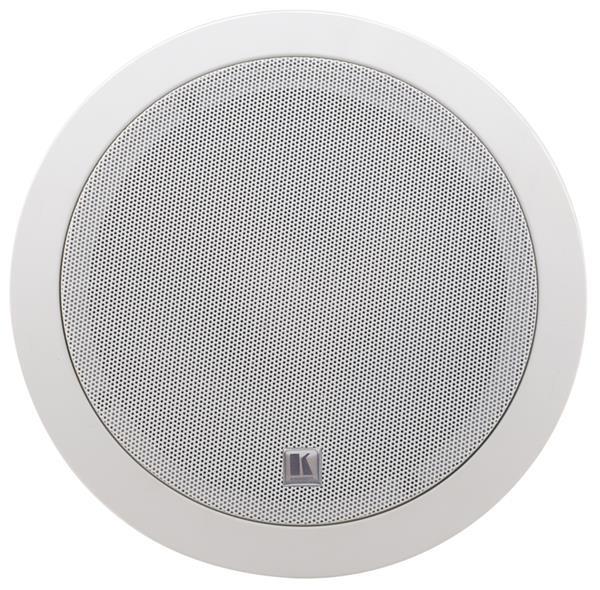

The Galil 6−CO is a pair of two−way open−back 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting direct 8Ω (bypassing the transformer) or 70V/100V power settings suitable for array installation.
Key Features:
· Type - 2-way coaxial round open-back ceiling speaker with infinite baffle design.
· Woofer - 6.5" polypropylene cone with rubber surround.
· Tweeter - 0.5" Mylar.
· Frequency Response - 60Hz to 20kHz.
· Impedance - 8Ω.
· Sensitivity - (SPL) 87dB (1W @1m with 1kHz).
· Recommended Power - RMS 30W, 80W max.
· Grill - White baffle aluminum grills.
· Package - 2 speakers (1 pair), template and user manual.
· Mounting Bracket (Optional) - SKIC-6.
General
- Application
- Ceiling, Recessed
- Active/Passive
- Passive
- Color
- White
Speaker drivers
- Woofer
- 6.5 " polypropylene with rubber surround
- Tweeter
- 0.5 " Mylar
Audio specifications
- Impedance
- 8 Ohm (transformer tap in off position)
- Frequency range Min
- 60 Hz –10dB
- Frequency range Max
- 20,000 Hz –10dB
- Sensitivity (1W/1m)
- 87 dB SPL, 1W@1m
- Power handeling
- 30 W RMS, 80W continuous program
- 70/100V mode
- Yes 70V - 3.7W/7.5W/15W/30W, 100V - 7.5W/15W/30W
Connections
- Audio inputs
- Terminal panel spk. cable
- Ethernet
- No
- Bluetooth
- No
- WiFi
- No
Dimensions and weight
- Installation depth
- 75 mm
- Width
- 230 mm Cutout diameter: 195mm
- Net weight
- 1.55 kg
Additional information
- Outdoor use
- No
- Included Accessories
- Cutout template
- Warranty
- 1 years
- Amount in delivery
- 1 Pair
Packaging info
- Packaging size
- 276 x 271 x 253 mm
- Packaging weight
- 3.99 kg
Packaging info (4 pcs)
- Packaging size
- 550 x 520 x 290 mm
- Packaging weight
- 16.66 kg
