Four-Channel microphone interface with AEC Reference Input and four balanced line outputs. (Previous name: TRIO MicPOD I/O)
Key Features:
- Interface Device between SmartMICs and any professional conferencing mixer
- Compatible with EasyMic Table and Ceiling MicPODs
- Connect up to four SmartMICs
- Allows for four microphones all with independent echo cancellation and internal DSP

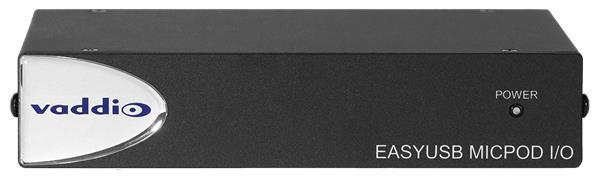

The EasyUSB MicPOD I/O interface is based on Vaddio’s™ SmartMIC technology, a simple and less expensive approach to adding live audio conferencing to room designs. As an interface between the EasyMIC microphones and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.
Each SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360-degree pickup pattern. This unique technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results.
The EasyUSB MicPOD I/O interface device allows the connection of up to four SmartMICs and because each input is effectively running three microphones on three different channels, users can technically run 12 microphones all with independent echo cancellation and internal DSP. For installations requiring more than 12 SmartMICs, just add an additional EasyUSB MicPOD I/O for 12 more channels.
This Package Includes:
- EasyUSB MicPOD I/O Interface
- Quick-Start Guide
- 18V, 2.75A Power Supply
- 5x 3-position phoenix-style connectors
- 4x rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
Audio specification
- DSP
- Yes
- Distortion THD
- 0.02 %
- Frequency range Min
- 20 Hz
- Frequency range Max
- 20,000 Hz

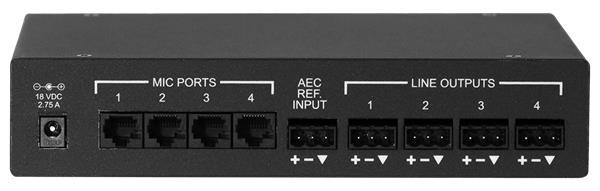

Connections
- Input channels
- 4
- Output channels
- 4
- Audio inputs
- EasyMic Port (RJ-45) x4 Proprietary Interface with audio, power & control
- Audio inputs
- Euroblock line x1 Mono Balanced AEC Reference Input
- Audio outputs
- Euroblock line x4 Mono Balanced Line
- Ethernet
- No
- Dante
- No
- WiFi
- No
Energy
- Power Supply
- 18V DC, 2,75A External Power Supply
- Consumption Max
- 40 W
Dimensions and weight
- Width
- 212.7 mm
- Depth
- 152.4 mm
- Height
- 43.7 mm
- Net weight
- 0.66 kg
Additional information
- Application
- 19" Rack, 1U With optional rack kit
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 460 x 280 x 130 mm
- Packaging weight
- 1.63 kg
