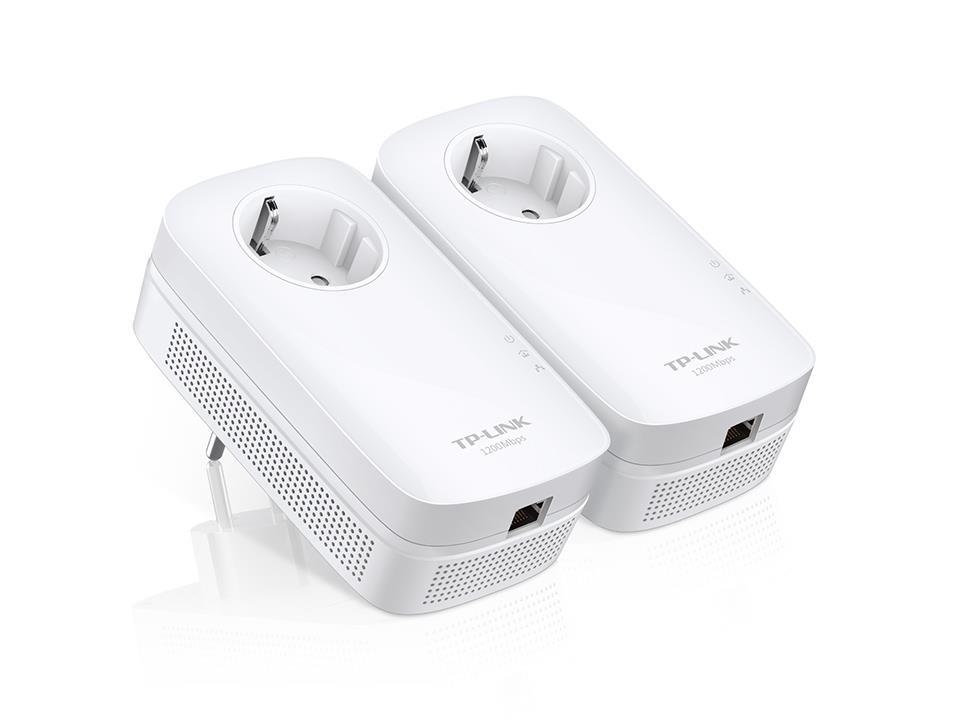

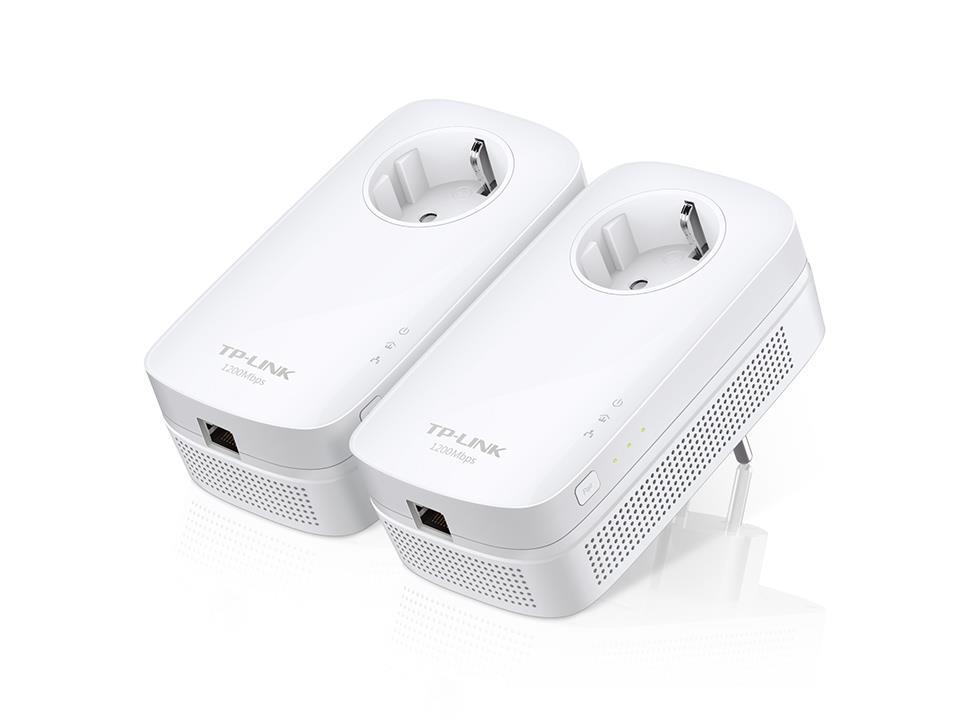

AV1300 Gigabit Passthrough Powerline Starter Kit TL-PA8010P KIT

  • HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps(1, supports all your online needs
  • Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
  • Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%(2

Upgraded 1300Mbps! Perfect for Bandwidth emanding Activities
Advanced HomePlug AV2 technology means the TL-PA8010P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

*The MIMO functionality within HomePlug AV2 significantly improves data transfer rates especially during peak periods.

Larger Range
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Gigabit Port for Ultra-fast Data Transfer Speed
With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!

Extra Power Socket for Additional Devices
The integrated power socket, with power output of up to 16A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

*Power output of up to 16A is suitable for high-power electrical appliances to be connected.

Power Save by Up to 85%
TL-PA8010P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.

*2. Actual data will vary because of the network conditions and environment factors.

*3. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.



General

Connection
Wired
Wifi Standard
HomePlug AV2, HomePlug AV IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab
Number of RJ-45 Ports
1 pcs. Gigabit Ethernet Port, Power Socket
Passthrough
Yes

Packaging info

Packaging size
240 x 195 x 106 mm
Packaging weight
724 g

Packaging info (16 pcs)

Packaging size
480 x 400 x 425 mm
Packaging weight
15.10 kg
