DSP−62−UC is a member of the Kramer XSPerience family of DSP products. DSP−62−UC is an advanced, professional 6 x 2 audio matrix switcher that includes multi−channel DSP, AEC (Acoustic Echo Cancellation), HDMI de−embedding, and class compliant USB audio interface. The comprehensive and user−friendly graphic interface makes configuring every detail of your audio system intuitive and easy.
Key Features
Multi–Channel DSP
AEC (Acoustic Echo Cancellation)
Video and USB peripheral extension over HDBaseT
Intuitive and Comprehensive Configuration and Control
HDMI audio de–embedding
Class compliant USB audio interface
Advanced Audio Matrix Switcher - Professional, studio grade signal conversion technology, Including the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz. Flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.

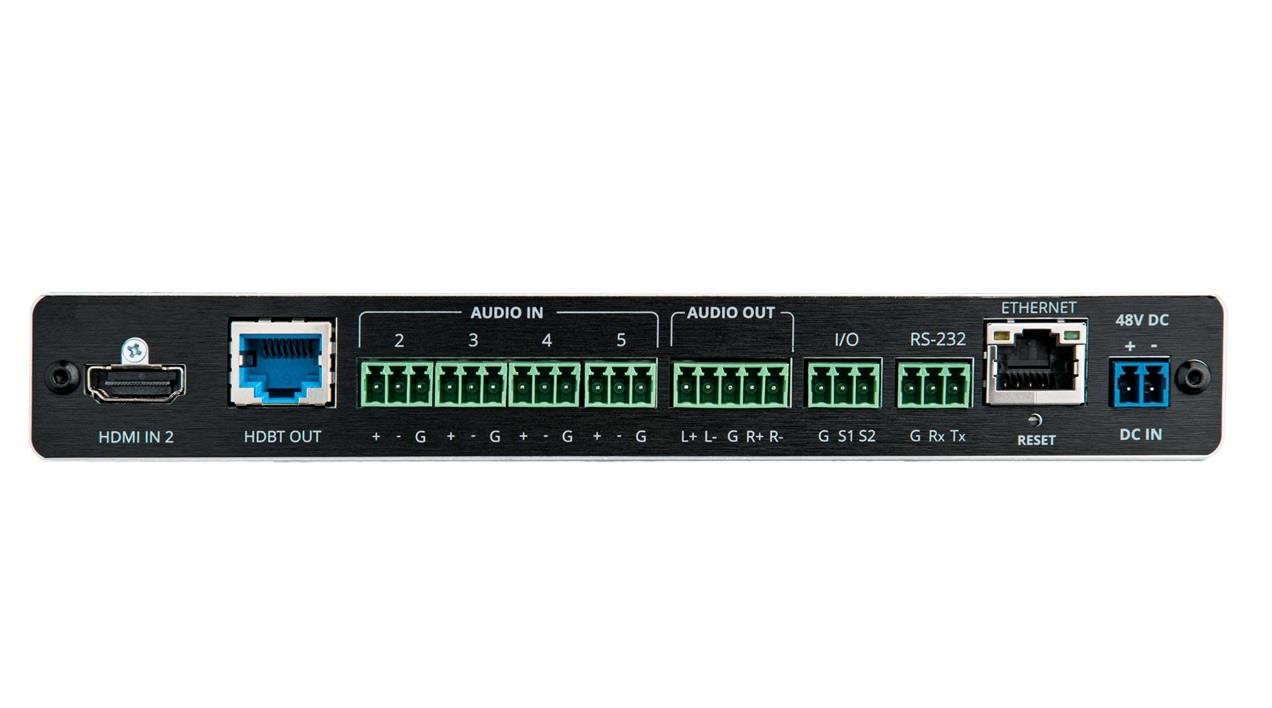

Wide Range of I/O Formats — Includes 2 HDMI inputs, 1 unbalanced & 4 balanced analog audio inputs, 2 balanced analog audio outputs, 1 HDBaseT output, and 1 bidirectional USB plug & play audio port.
Reliable PoE (Power over Ethernet) Powering — Accepts power from a remote PoE provider with optional mains powering from connected power adapter.
Multi–Channel Processing — Provides DSP (Digital Sound Processing) that enables simultaneous processing of all input and output signals.
Teleconference Optimized — Features AEC (Acoustic Echo Cancellation), that prevents the microphone from picking up the far–end echoed speech, so you only share the audio spoken directly into the microphone.
Auto & Manual Switching Between HDMI Sources — Configure switching to be controlled manually, from the front panel buttons or automatically, according to priority or last connected status.
Intuitive and Comprehensive Configuration and Control — Via a powerful, user–friendly graphic interface, set volume (gain and attenuation) and DSP per input; execute routing and select line in, mic in, phantom power or line out on each port; configure master level and more. Control signal routing, volume and other basic settings using API commands via RS–232 communication transmitted by a PC, touch screen system or other serial controller.
Audio De–embedding — De–embeds the audio signal from the HDMI input for routing to any of the outputs.
Programmable — Supports up to 10 global presets plus 10 mixer snapshot presets.

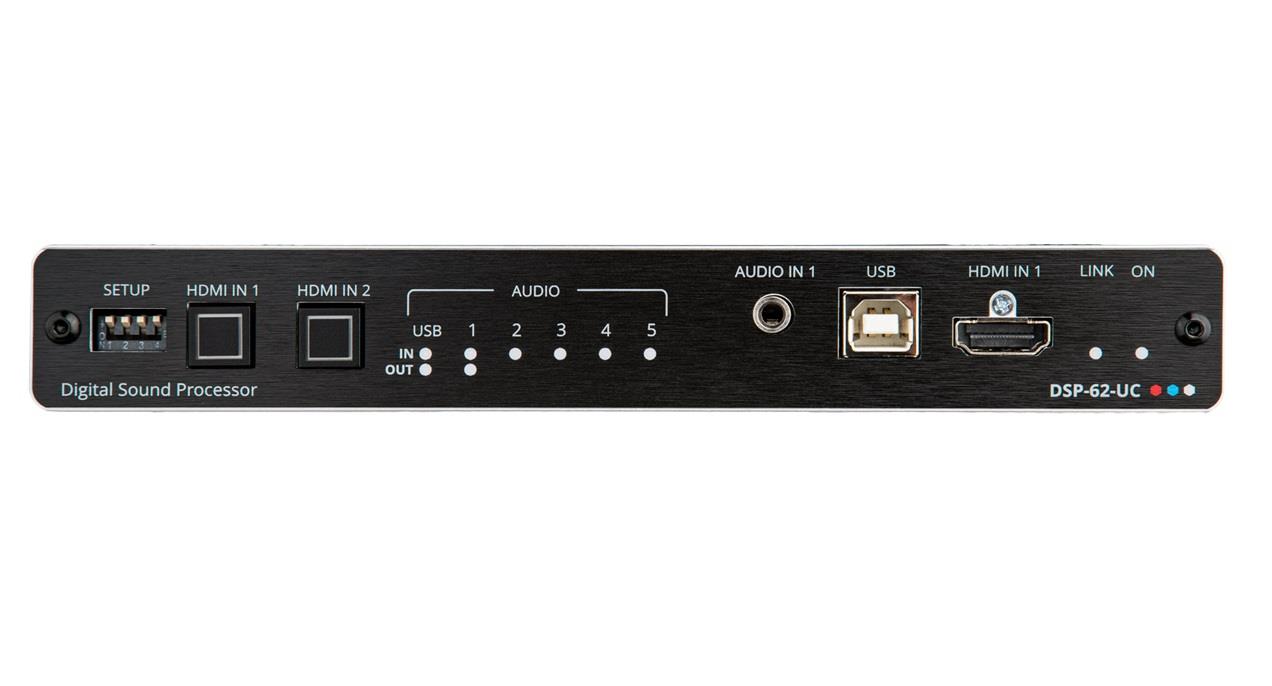

Easy, Cost–Effective Maintenance — LED indicators for main power, line in/out, mic in, clipping, and HDMI input selection, enable easy local maintenance and troubleshooting. Local firmware upgrade via the USB type–B port ensures lasting, field–proven deployment.
Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Audio specification
- DSP
- Yes
- Distortion THD
- 0.01 %
- Frequency range Min
- 20 Hz
- Frequency range Max
- 20,000 Hz
- Signal-to-noise ratio
- 85 dB
Connections
- Input channels
- 6
- Output channels
- 2
- Audio inputs
- 3,5mm tele x1 Unbalanced Stereo Line
- Audio inputs
- Euroblock line x4 3-pin Balanced Mono Line/Mic (wih Phantom power)
- Audio inputs
- HDMI x2
- Audio inputs
- USB-B for PC connection
- Audio outputs
- Euroblock line x1 5-pin Balanced Stereo Line
- Audio outputs
- RJ-45 x1 HDBaseT out (Video/Audio with bi-directional PoE)
- Audio outputs
- USB-B for PC connection
- Ethernet
- Yes
- Control
- Ethernet/IP (RJ-45), Front buttons, GPI/O, RS-232, Web interface
- Dante
- No
- WiFi
- No
Energy
- Power Supply
- 48 VDC, 1.36 A or PoE
Dimensions and weight
- Width
- 187.5 mm
- Depth
- 145 mm
- Height
- 25.4 mm
- Net weight
- 0.7 kg
Additional information
- Application
- 19" Rack, 1U With optional rack adapter
- Application
- Table
- Included Accessories
- Power adapter, bracket set, rubber feet
- Warranty
- 7 years
Packaging info
- Packaging size
- 345 x 165 x 52 mm
- Packaging weight
- 1.29 kg
