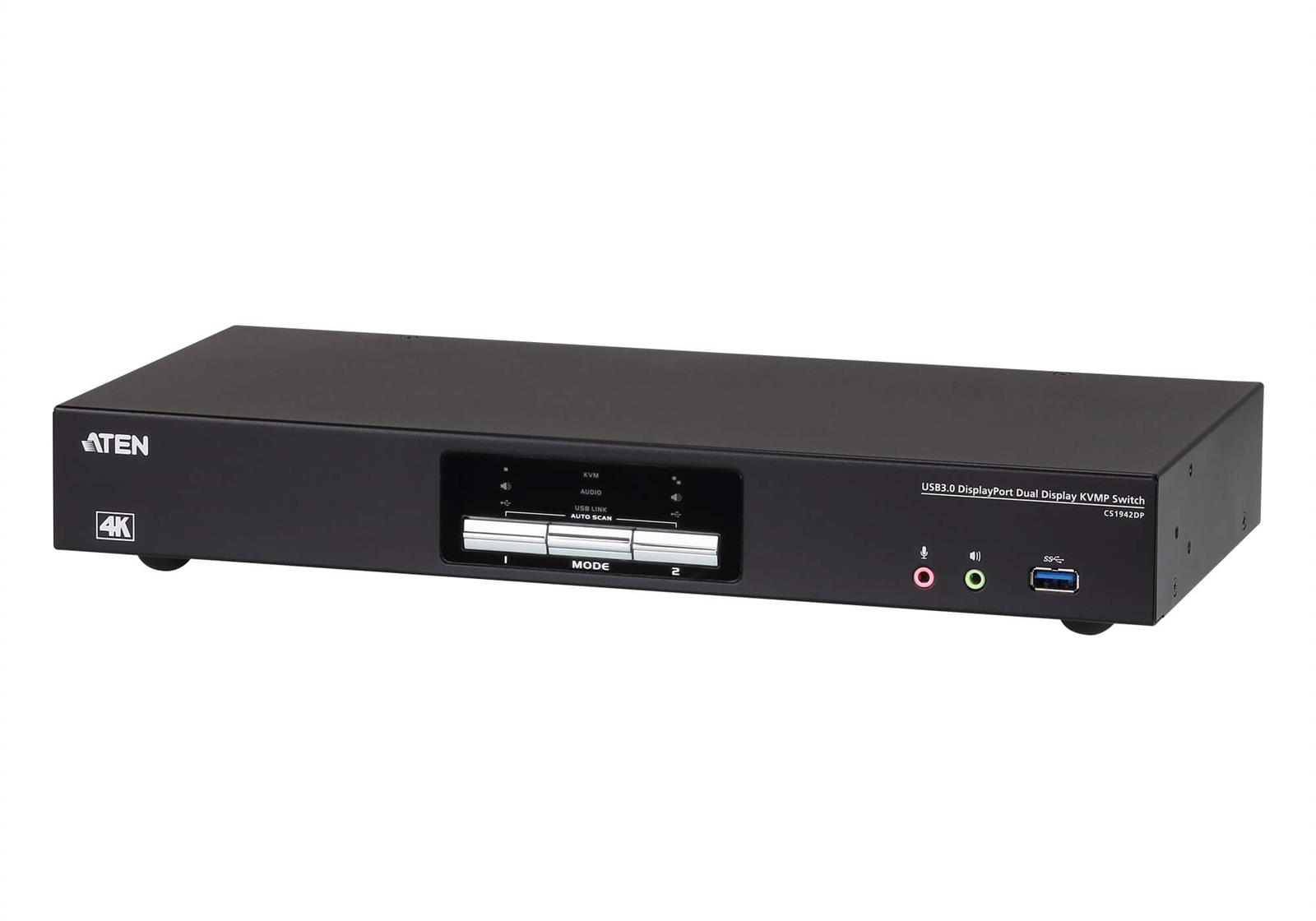

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
General
- Application
- Switch
Video specification
- Resolution max out
- 3840x2160, 4096x2160
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 2
- Video outputs
- 1
- Video in
- DisplayPort
- Video out
- DisplayPort
- Audio inputs
- 3,5mm tele
- Audio outputs
- 3,5mm tele
Functions
- USB passthrough
- Yes
- USB standard
- 3.1 Gen 1
- Control
- Front buttons
Energy
- Power Supply
- DC 12V External POS
Dimensions and weight
- Width
- 156.6 mm
- Depth
- 335 mm
- Height
- 44 mm
- Net weight
- 1.54 kg
Packaging info
- Packaging size
- 540 x 235 x 110 mm
- Packaging weight
- 3.44 kg
