Features
- One USB console controls 8 computers.
- Cascadable up to 3 levels - provides up to 512 computers.
- Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.

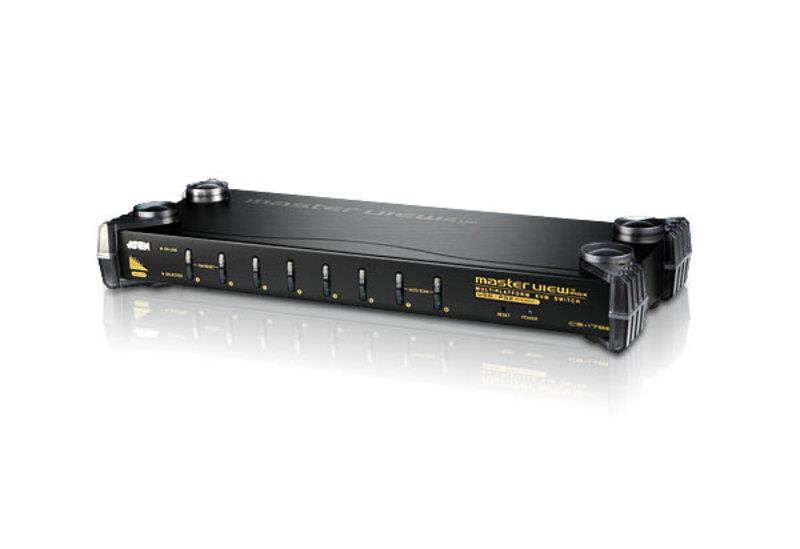

- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
Package Contents
- 1x 8-Port PS/2-USB KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD6-1005-10EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
ATEN KVM-switch, 1 konsol styr 8 datorer, USB & PS/2, 19", svart
Kopplar 8 datorer till 1 skärm, 1 mus, 1 tangentbord, 1 par högtalare, 1 mikrofon. Det är USB-anslutning för mus och tangentbord på själva konsolen. Men beroende på vilket kablage man väljer kan man ansluta datorer med antingen USB-portar eller PS/2-portar för mus och tangentbord. Den kan även monteras in i ett 19"-skåp.
Firmware uppdateringskabel, 19" monteringsöron, nätadapter, snabbstartsguide och manual ingår i förpackningen.
Mått(BxDxH): 432x154x45mm.
General
- Model
- KVM Switch
- Application
- Switch
Image specification
- Resolution
- 2048x1152
Connections
- Video inputs
- 8
- Video outputs
- 1
- Video in
- VGA
- Audio inputs
- 3,5mm tele
Measurements and weight
- Width
- 170 mm
- Depth
- 450 mm
- Height
- 67 mm
- Net weight
- 2.72 kg
Packaging info
- Packaging size
- 240 x 120 x 70 mm
- Packaging weight
- 3.42 kg
