Where space is limited but not your message

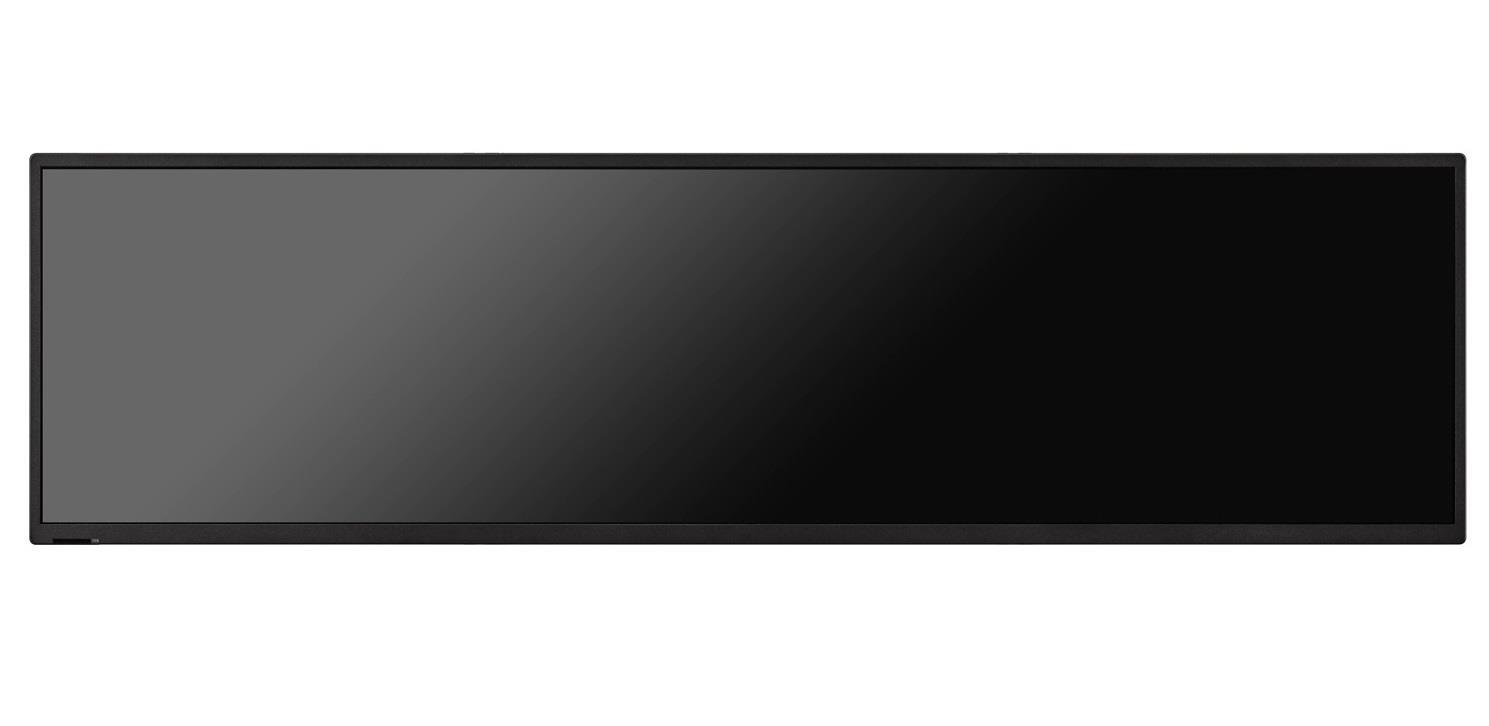

Delivering space efficient visualisation for constricted environments such as corridors and retail shelves, this 42” bartype display offers a distinctive ultra-wide 16:4 screen ratio. High adaptability extends to both landscape and portrait orientation ideal for space-limited areas, yet content creation remains easy and effortless. Content is crisp and clear with compelling readability even in bright ambient light conditions with high brightness levels of 700 cd/m² combined with an anti-glare surface. Its modern, slim design forms an elegant digital surface which perfectly complements the surrounding architecture and integrates seamlessly into any environment.

The 42” MultiSync® BT421 is the super wide choice for space efficient digital signage in retail environments, transportation hubs, quick service restaurants and all other public areas where space is limited.

Key Features:
Space efficient display solution - the ultra-wide screen ratio of 16:4 with a display height of just 28.9 cm allows installation within constricted spaces, providing crisp and eye-friendly visualisation.
Robust and reliable - sealed to prohibit dust ingress, long term reliable operation is maintained within wide temperature range of 0-50°C.
Easy content adaption - the integrated trim function enables 16:9 content to be used whilst actively displaying the upper or lower area for display of native 1920 x 480 content.
Cost efficient media playback flexibility - divide a single Full HD content into two separate contents via daisy chaining for back to back installations, needing only one source to feed two screens for cost saving benefits.
Superb readability in bright light environments - crisp playback of content thanks to high brightness output of 700 nits and anti-reflective screen surface delivers clearly visible messages even under varying and demanding ambient conditions.
Mission-critical 24/7 ready operation - the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Cost Saving Device Management - save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.



Display

Operating Hours
24/7
Image diagonal
42 "
Resolution
1920x480
Brightness
700 Nits
Portrait
Yes

Functions

Touch
No
Protective Glass
No
Built-in speaker
No

Communication

Ethernet
No
Wi-Fi
No
Wireless image sharing
No

Energy

Power Supply
0.34 - 0.76 A @ 100-240V AC, 50/60Hz
Consumption Stand-by
0.5 W
Consumption Typical
50 W

Dimensions and weight

VESA mount interface (mm)
200x100, 400x100
Width
1,059.9 mm
Height
288.9 mm
Depth
64.7 mm
Net weight
9.3 kg

Additioinal information

Included Accessories
Setup manual, Power Cord, Video Signal cable, Remote Control, AAA Battery x 2, Clamp, Screw
Warranty
3 years

Packaging info

Packaging size
1,060 x 290 x 647 mm
Packaging weight
10.00 kg
