FC−18 is a display ON/OFF controller for 4K@60Hz (4:4:4) HDR HDMI signals. It accepts and outputs an HDMI signal after reclocking and equalizing. On detection of the onset of an input signal FC−18 sends an ON command to the display or projector and on detection of the loss of the input signal FC−18 sends an OFF command. FC−18 can also be used to control a display device manually via front panel buttons, Ethernet or contact closure switches.

  • Save on Power Costs — Shut down display devices automatically when not in use.
  • Facilitate Meeting Setups — Just plug in the AV source and the display screen or projector automatically turn on. No more searching for the power button.
  • High–Performance HDMI Acceptor — Supports 4K@60Hz (4:4:4) HDR10, HDCP 2.2/1.4 signals at 18G (6G per channel) data rate, CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0.
  • Variety of Automatic Control Formats — Commands are sent to the display device via CEC, RS–232, or Ethernet.
  • Variety of Manual Control Formats — Manually turn the display device ON and OFF via front panel button and RS–232/CEC commands, Ethernet, contact closure switches.
  • Data Tunneling — Supports data tunneling between the RS–232 port and the Ethernet ports.
  • HDCP Compliance — HDCP 1.4 and 2.2.
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
  • Selectable EDID Options — Default (internal), external (sink) or user–defined.
  • Firmware Upgrading via USB port.

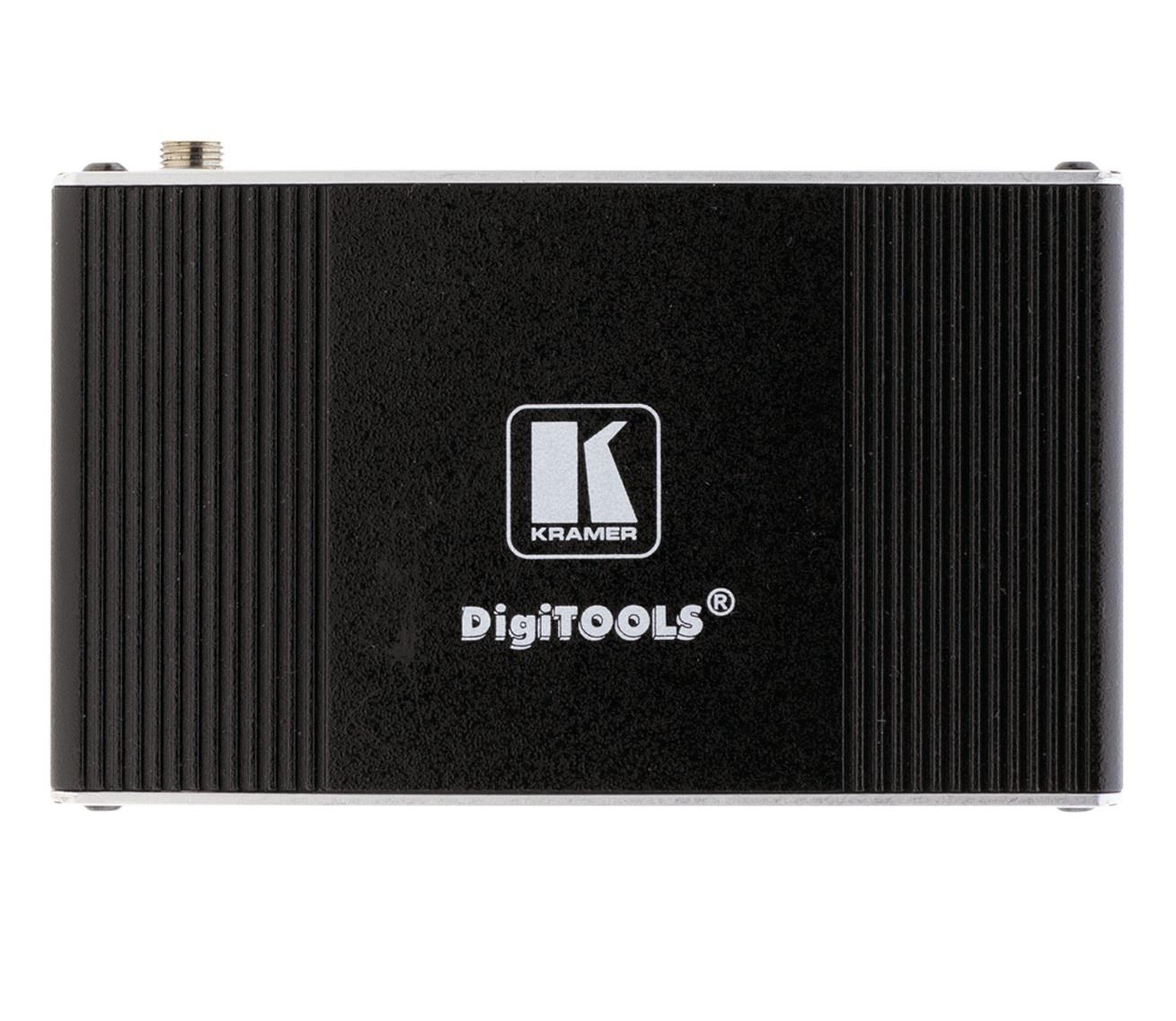

  • Easy Installation — Compact DigiTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.


General

Installation
Freestanding/Shelf

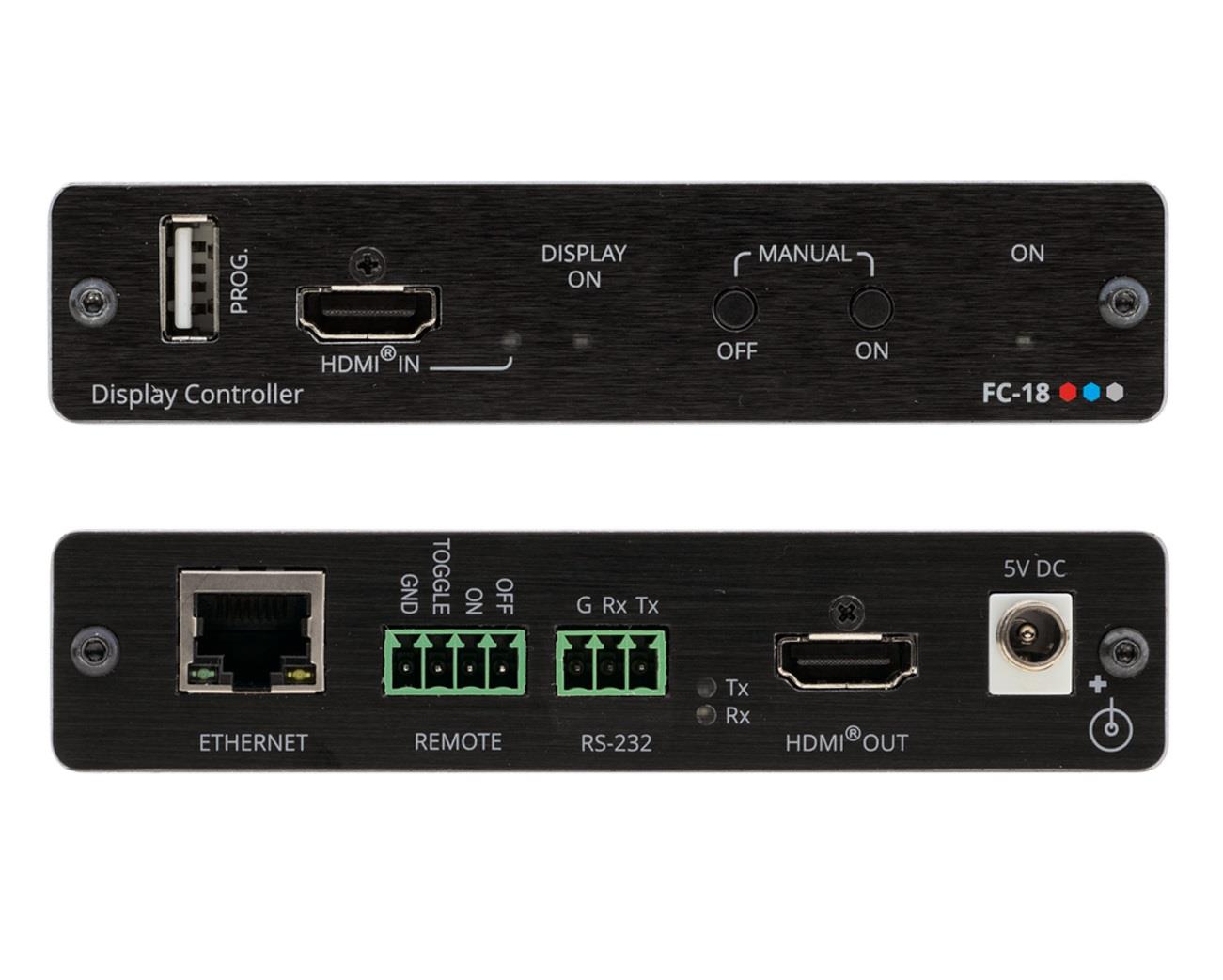

Connections

Control ports
Contact closure, Ethernet/IP (RJ-45), RS-232
Ethernet
Yes
WiFi
No

Energy

Power Supply
5V DC External Power Supply

Dimensions and weight

Width
120 mm
Depth
71.5 mm
Height
24.4 mm
Net weight
0.3 kg

Additional information

Color
Black
Included Accessories
Power adapter, bracket set
Warranty
7 years

Packaging info

Packaging size
157 x 120 x 87 mm
Packaging weight
800 g
