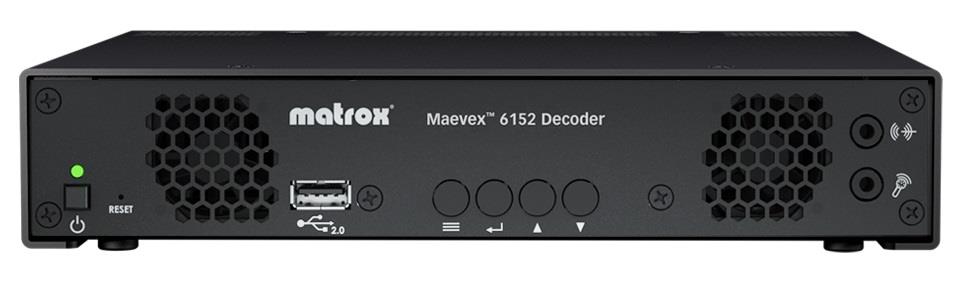

The Maevex 6152 quad decoder is a real-time H.264 video decoder capable of decoding up to four 4K live MPEG2-TS, RTSP, and SRT streams at low latency. When paired with Maevex 6100 Series encoders, Maevex 6152 can achieve exceptionally low latency at low network bitrate consumption. It also supports reliable, encrypted transmission over internet for the secure streaming of content. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications.
- HDCP 1.4 and 2.2 compliant
- Quad 4K output
- Preset layouts
- Easy drag-and-drop setup
- H.264 advanced video coding
- Rack mountable
- Centralized management via PowerStream Plus or APIs
- Third-party encoder support
General
- Extender type
- Reciever (Rx)
- Technology
- H.264 /MPEG-4 Part 10 (AVC)
Video specifications
- Max supported resolution
- 4096x2160
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
Connections
- Video in
- HDMI x4
- Video out
- IP stream (RJ-45) x1
- Control
- Ethernet/IP (RJ-45), Front buttons, RS-232
Communication
- Switch Data Rate
- 1GbE
- Req. Network Switch
- 100/1,000 base-T Ethernet
Energy
- Power Supply
- External Power supply, Power Consumption 45W
Dimensions and weight
- Width
- 217 mm
- Depth
- 191 mm
- Height
- 43 mm
- Net weight
- 1.5 kg
Additional information
- Installation
- 19" Rack, 1U 1/2 rack (horizontal) with optional rack adapter (RMK-19TR-A)
- Installation
- Freestanding/Shelf
- Warranty
- 2 years limited warranty with free online or telephone support
Packaging info
- Packaging size
- 370 x 270 x 170 mm
- Packaging weight
- 2.85 kg
