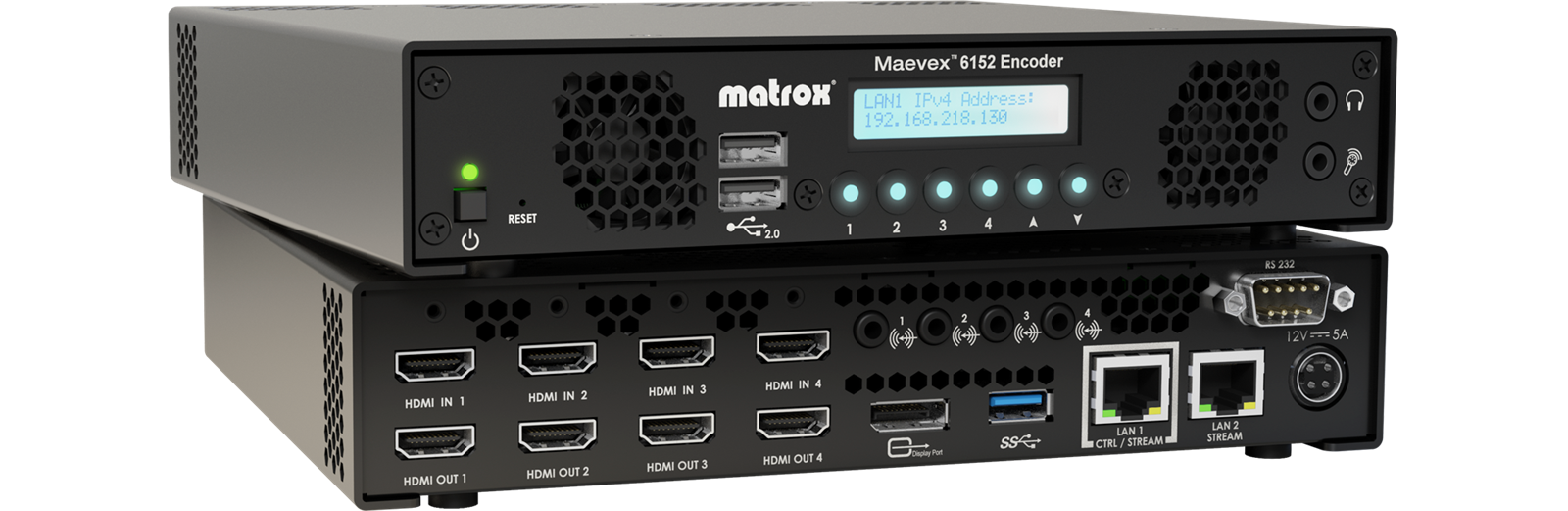

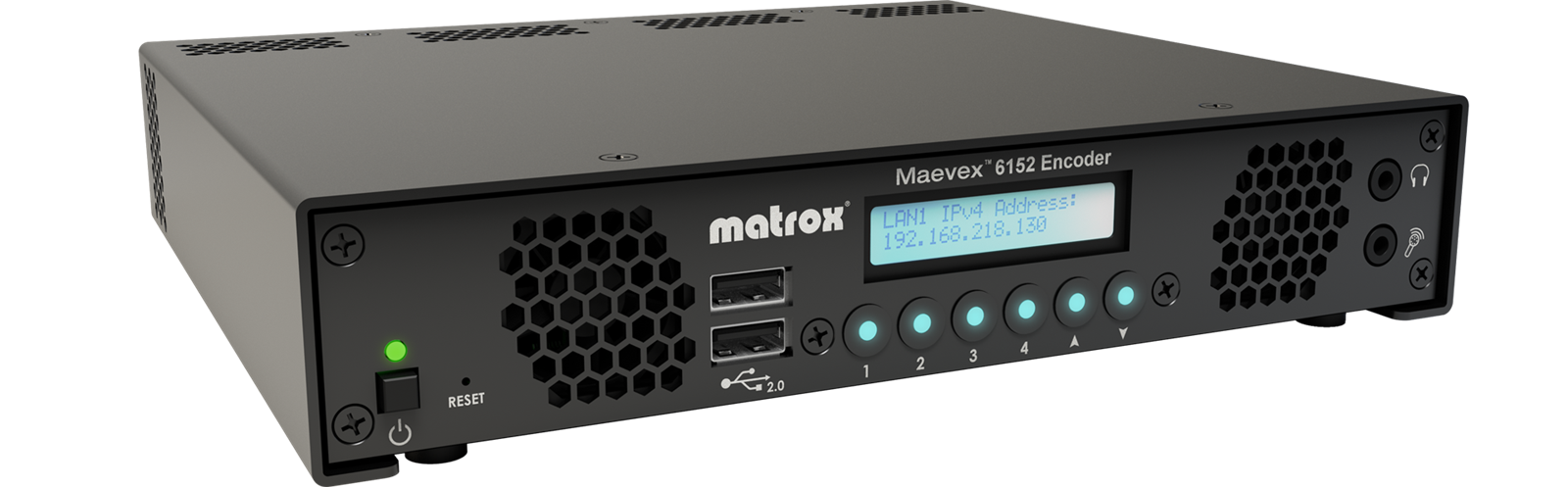

Matrox® Maevex 6152 is a quad HDMI® video encoder that delivers 4K60 input capture and encode, and supports at least four 4K streams and recordings—simultaneously. The encoder features six streaming protocols, multiple chroma sub-sampling, adjustable encoding parameters, zero-latency pass-through, and compositing, all in a convenient, quiet, low power, rack-ready appliance that fits almost any encoding application. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications.
General
- Extender type
- Transmitter (Tx)
- Technology
- H.264 /MPEG-4 Part 10 (AVC)
Video specifications
- Max supported resolution
- 4096x2160 (one input), 4x 3840x2160 @30Hz (all four inputs)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Video operation modes
- P&P - Split screen, PiP - Picture in Picture, Quad view - 4 split
Connections
- Video in
- HDMI x4
- Video out
- DisplayPort x1 DisplayPort 1.1, Maximum resolution: 1920x1080
- Video out
- HDMI x4 zero latency pass-through
- Audio inputs
- 3,5mm tele x4 line in, x1 3.5 mm stereo mic in
- Audio outputs
- 3,5mm tele x1 3.5 mm headphones out
- Control
- Ethernet/IP (RJ-45), Front buttons, RS-232
Communication
- Req. Network Switch
- 100/1,000 base-T Ethernet, IGMP Version 2 and 3
Dimensions and weight
- Width
- 217 mm
- Depth
- 189 mm
- Height
- 43 mm
- Net weight
- 1.5 kg
Additional information
- Installation
- 19" Rack, 1U (1/2 Width), Freestanding/Shelf
- Warranty
- 2 years limited warranty with free online or telephone support
Packaging info
- Packaging size
- 370 x 270 x 170 mm
- Packaging weight
- 2.95 kg
