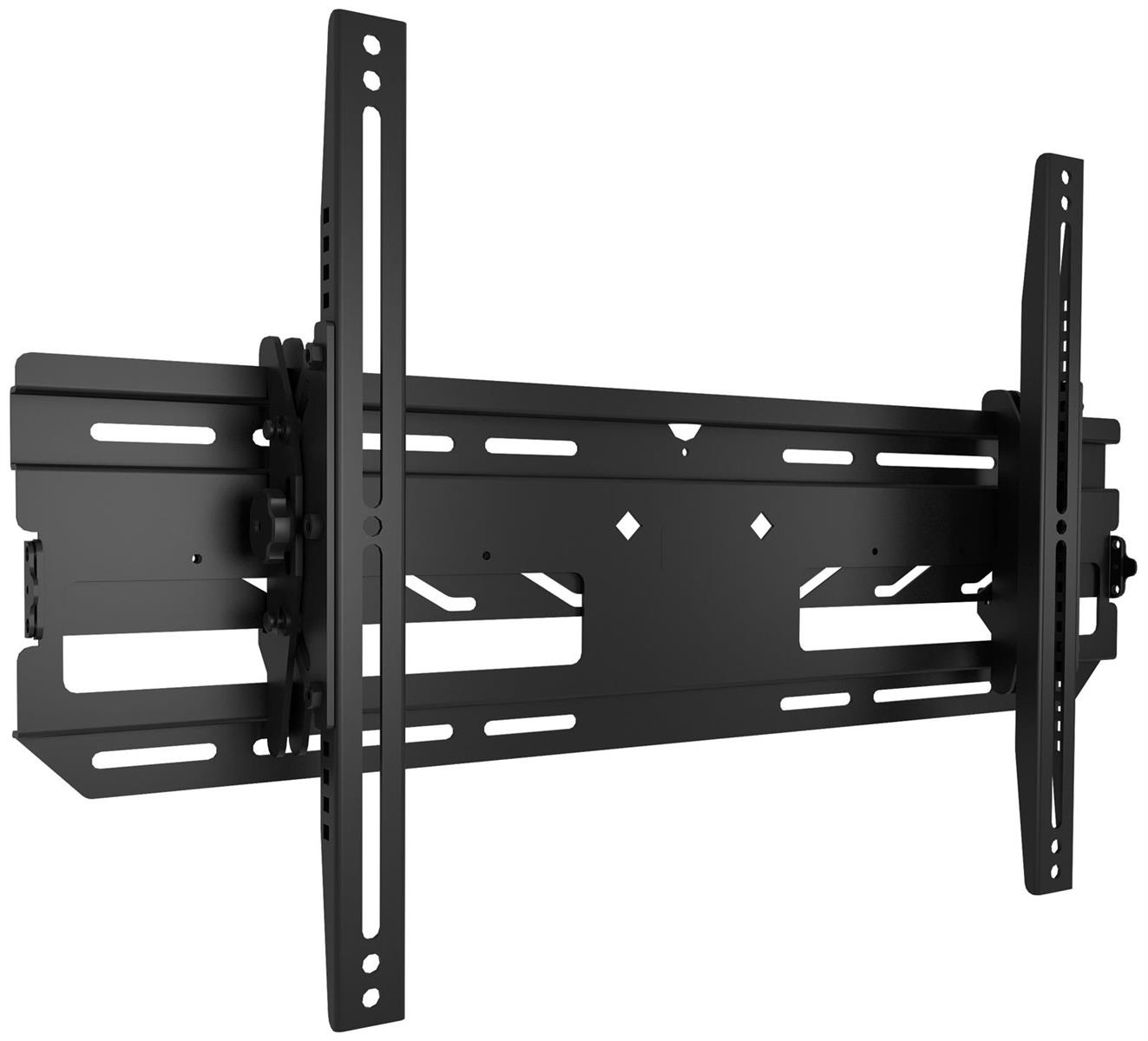

Chief ODMLT - Tilting Outdoor Wall Mount
Designed to support all-weather outdoor installations and enhance the viewing experience.
The ODMLT Tilting Outdoor Wall Mount provides fingertip tilt for optimal viewing, and features a weatherproof design including protective outdoor-rated finishing and stainless-steel hardware.

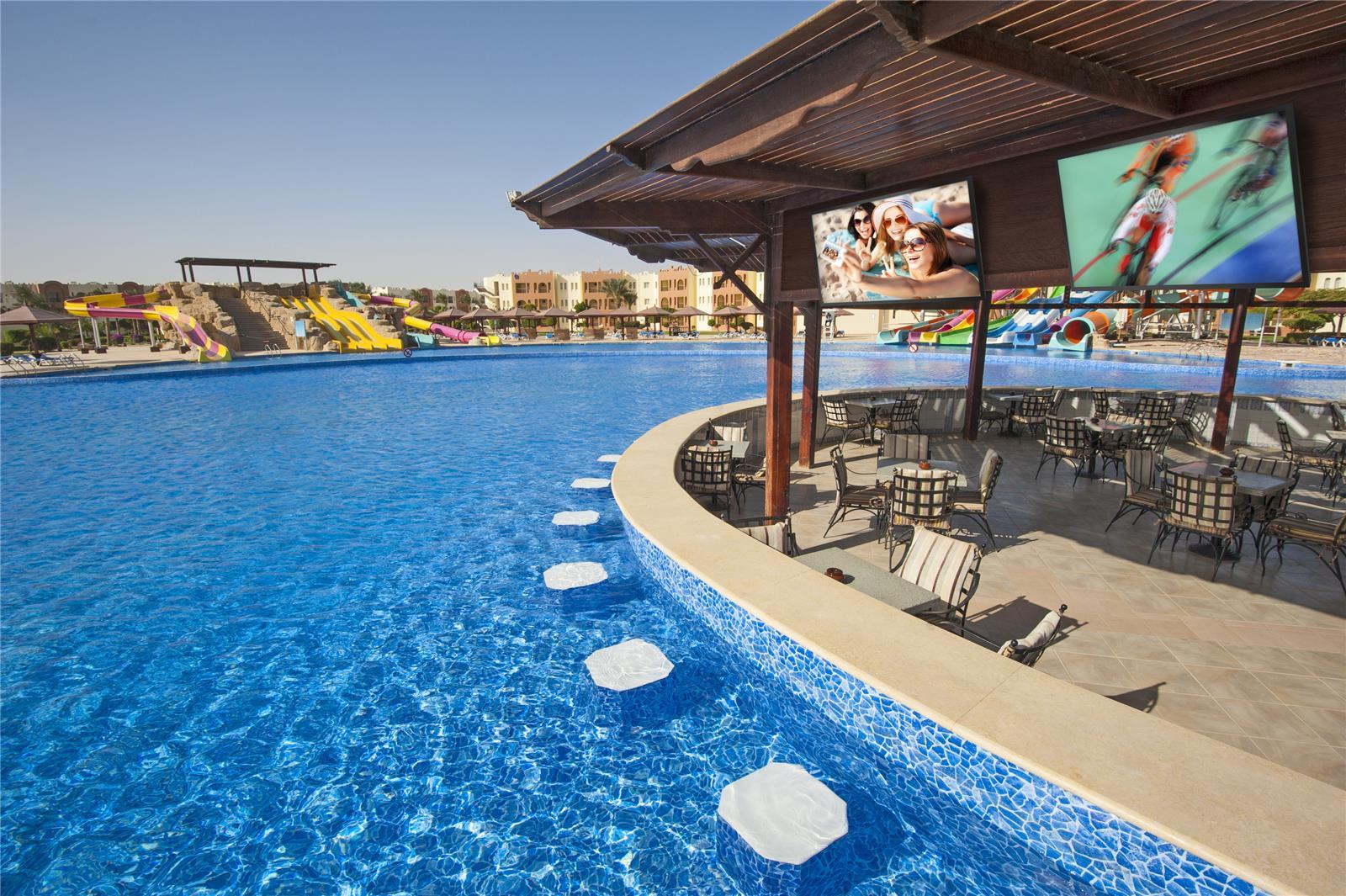

Pair with most indoor or outdoor displays for outdoor digital signage, outdoor living and humid indoor environments.
Key Features:
• Weatherproof design with outdoor-rated finishing & stainless-steel hardware
• 79.4 kg weight capacity
• Universal interface fits most indoor and outdoor displays with up to 640x430mm VESA patterns
• Centris technology provides +/-15 degrees of effortless fingertip tilt
• GlideLock with kickstand to secure the display to the wall plate without tools and for easy cable connection
• Padlock feature for additional security (padlock not included)
NOTE! Some displays requires FHBO5168 display bracket for compability.
General
- Number of displays
- 1 pcs.
- Application
- Outdoor, Wall
- Color
- Black
- Display orientation
- Landscape
- Videowall
- No
Functions
- Height adjustable
- No
- Side adjustment
- Yes 51mm
- Depth adjustment
- No
- Tiltable
- Yes +/-15˚
- Swing/Pan
- No
- Roll/Pivot
- No
- Motorized
- No
- Lockable
- Yes With padlock (option)
Dimensions and weight
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400
- Weight capacity (per screen)
- 79.3 kg
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 876 x 273 x 64 mm
- Packaging weight
- 6.80 kg
