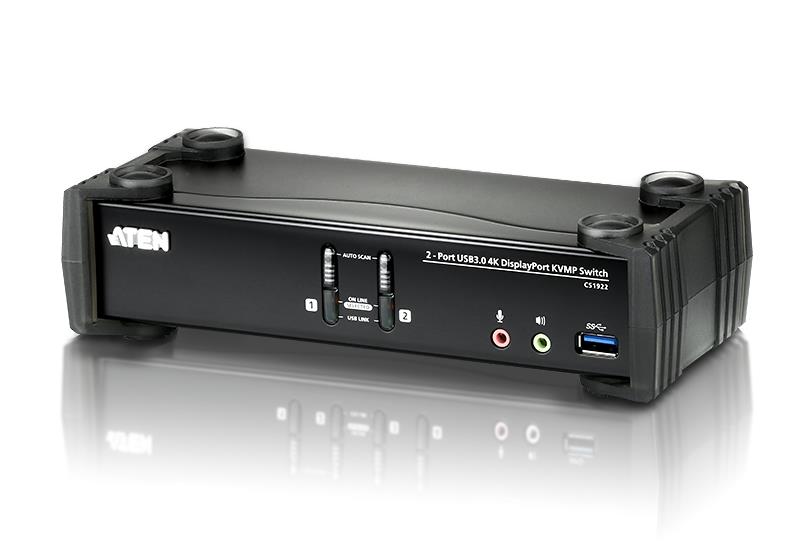

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
General
- Application
- Switch
Video specification
- Resolution max out
- 3840x2160, 4096x2160
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 2
- Video outputs
- 1
- Video in
- DisplayPort
- Video out
- DisplayPort
- Audio inputs
- 3,5mm tele
- Audio outputs
- 3,5mm tele
Functions
- USB passthrough
- Yes
- USB standard
- 3.1 Gen 1
- Control
- Front buttons
Dimensions and weight
- Width
- 88 mm
- Depth
- 210 mm
- Height
- 55.5 mm
- Net weight
- 1.42 kg
Additional information
- Installation
- Freestanding/Shelf
Packaging info
- Packaging size
- 277 x 98 x 171 mm
- Packaging weight
- 1.83 kg
