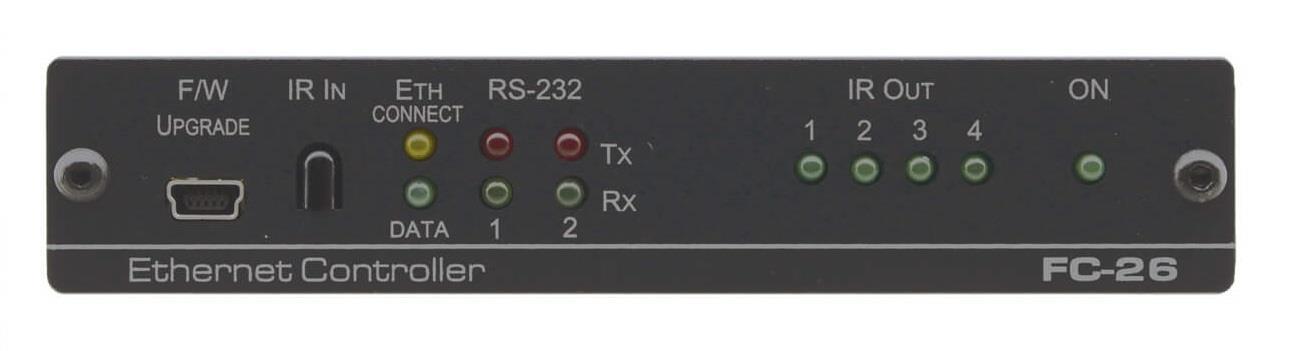

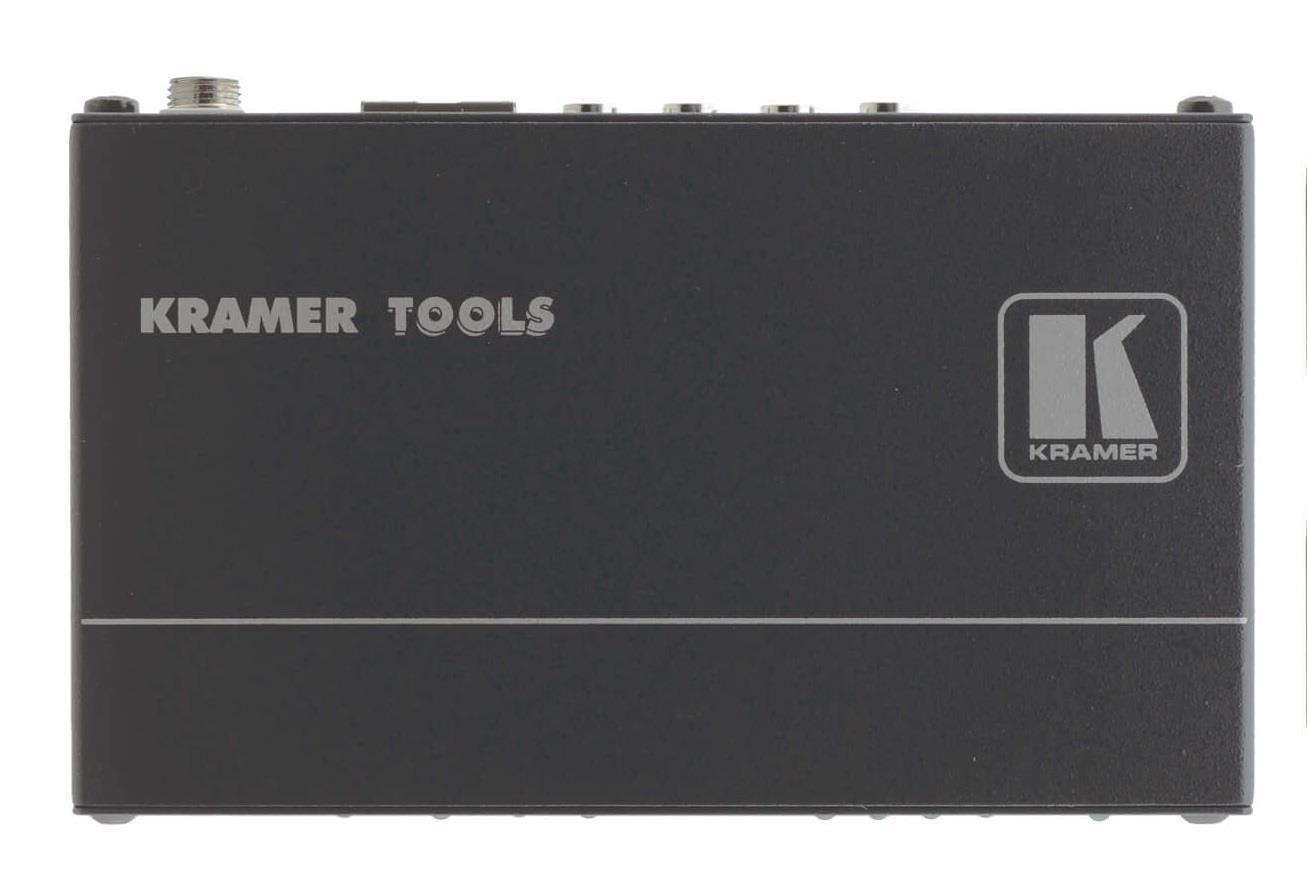

The FC−26 is a PoE−powered control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 and IR control connections. Multiple control clients can be IP−connected to the FC−26 control gateway for concurrent control of two RS−232 and four IR controllable devices, such as AV scalers, video displays, audio amplifiers, and DVD players.
Key Features:
- 2 RS-232 Bidirectional Control Ports - Control a device via bidirectional serial control protocols.
- 4 IR Emitter Control Ports - Control a device via IR control protocols.
- 1 Ethernet Control Port - Remote protocol−based control port.
- Built-in Web Pages - Remote browser−based control and support.
- Simultaneous IP Control Communication - With up to 40 IP control clients.
- IR Sensor Port - Learns commands from IR remotes.
- Mini USB Port - For firmware upgrades and local technical services.
- PoE Support - Per IEEE 802.3af standard.
- Easy Installation - Single Ethernet cable wires for communication and PoE powering, and plug & play IP auto−setup deployment for simple and cost−reducing installation.
- Size - TOOLS - Mount 3 units side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- IR cable connection x4
- Control ports
- RS-232 x2
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- 5V DC, 230mA
Dimensions and weight
- Width
- 120 mm
- Depth
- 71.5 mm
- Height
- 24.4 mm
- Net weight
- 0.2 kg
Additional information
- Color
- Black
- Warranty
- 7 years
