Datasheet

The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area.

The illuminators are protected against electrostatic discharges.

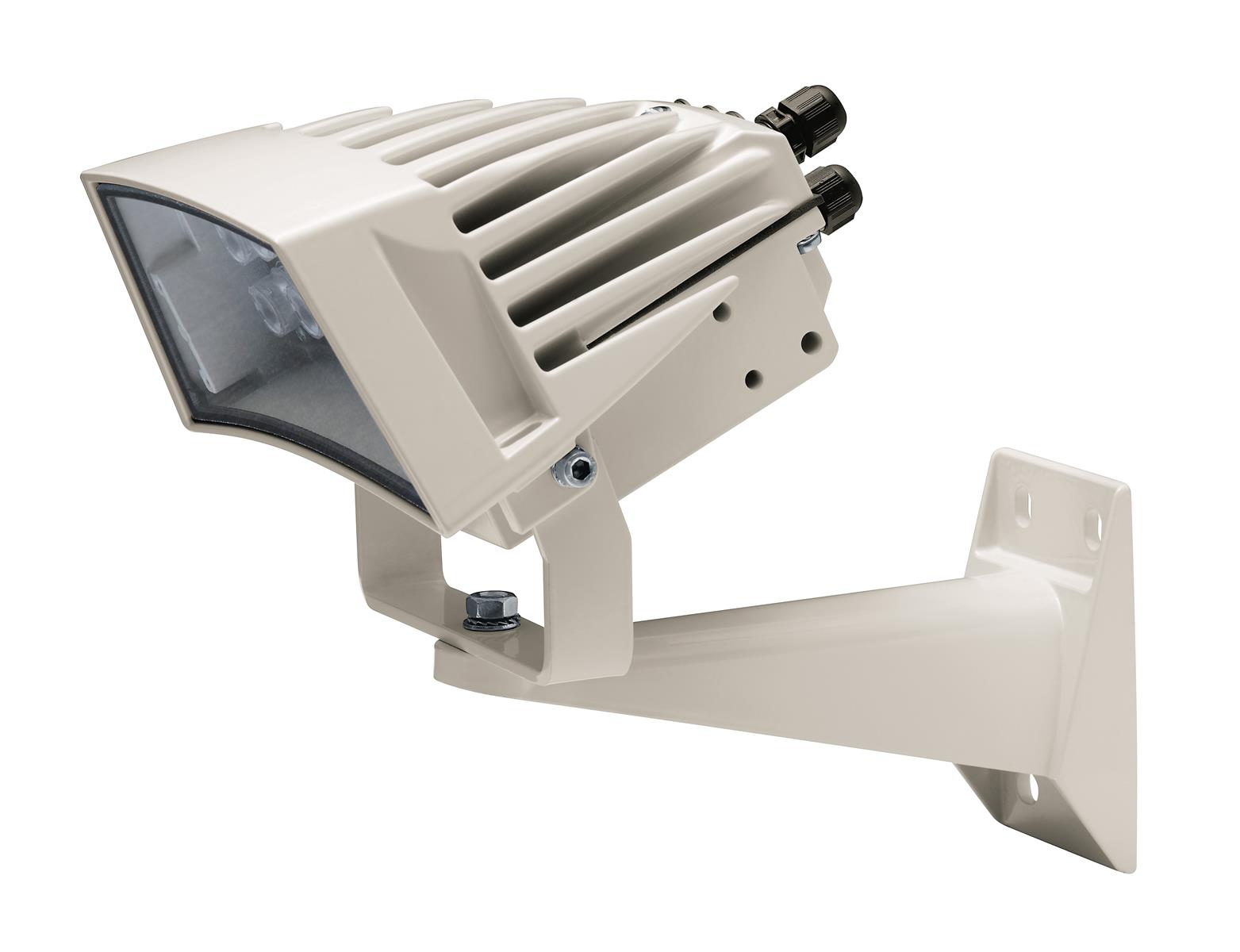

GEKO is supplied with a wall-mount bracket that rotates horizontally and vertically.

KEY FEATURES

  • Clear night vision up to 240m (787ft) in indoor or outdoor environment
  • Vandal-proof protection (IK10)
  • Beam pattern: 10°, 30°, 60°
  • Wavelengths: 850nm, 940nm, white light
  • VOLT free relay output for Day/Night camera
  • Consumption: 30W
  • Supplied with a wall-mount bracket


General

Light source
LED

Dimensions and weight

Width
187 mm
Height
242 mm
Depth
251 mm
Net weight
1.7 kg

Power

Power Supply
24Vac/12-24Vdc

Additional information

Color
Beige

Packaging info

Packaging size
200 x 200 x 200 mm
Packaging weight
3.11 kg
