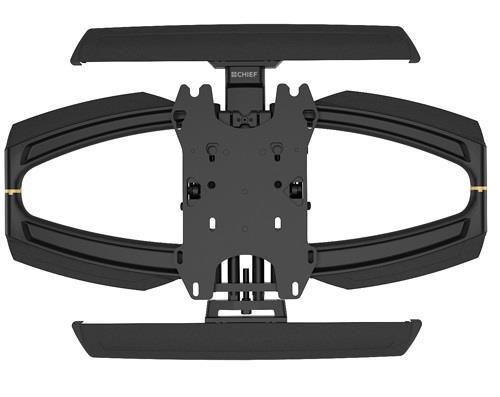

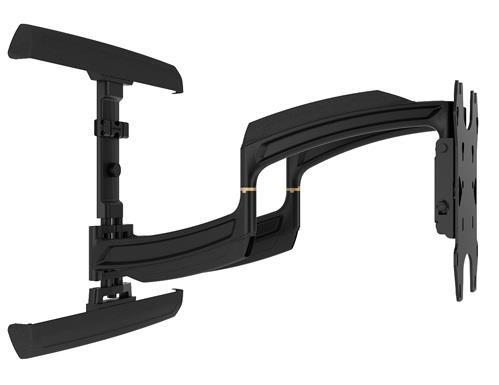

A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly.
In-wall installation available when TA500 purchased with mount.
Key Features
- Low Profile Sleek design collapses to 2.0" (50 mm) (without interface) or 2.1” (53 mm) (with interface)
- Ultra Low Profile Facilitate ADA compliance with an ultra-low profile when installed together with a TA500 in-wall back box
- Extends up to 25" (635 mm) Full extension maximizes viewing potential
- Centris™ Low-Profile Tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
General
- Number of displays
- 1 pcs.
- Application
- Wall
- Color
- Black
- Display orientation
- Landscape
- Videowall
- No
Functions
- Height adjustable
- Yes 25mm
- Side adjustment
- Yes 406mm
- Depth adjustment
- Yes
- Tiltable
- Yes -15°
- Swing/Pan
- Yes
- Roll/Pivot
- No
- Motorized
- No
- Lockable
- No
Dimensions and weight
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400, 700x200, 700x400, 800x200, 800x400
- Weight capacity (per screen)
- 56.7 kg
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 830 x 550 x 80 mm
- Packaging weight
- 23.40 kg
