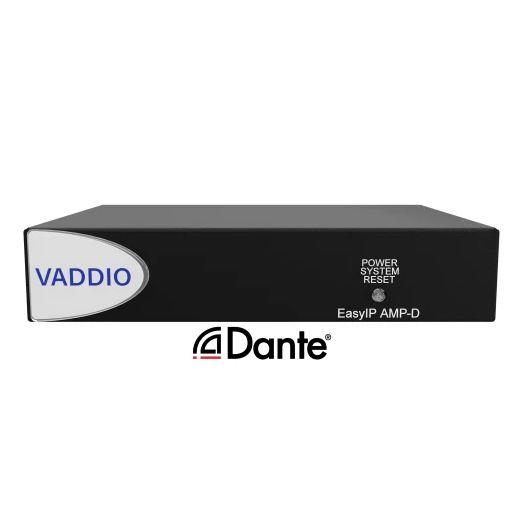

The EasyIP AMP D is a half-rack PoE+ powered amplifier featuring Dante networked audio. A single ethernet cable provides power and a Dante audio signal to the EasyIP AMP D and the amplifier’s speaker output provides up to 25 watts of power to a connected speaker.
Key Features:
- Brings an analog speaker into your EasyIP or Dante environment
- Dante networked audio – manage with the Dante Controller application from Audinate
- 1 RU, half-rack chassis
- PoE+ or PoE power; adaptive output – 25 W if powered by an EasyIP Switch or other PoE+ source, 15 W if powered by a PoE source

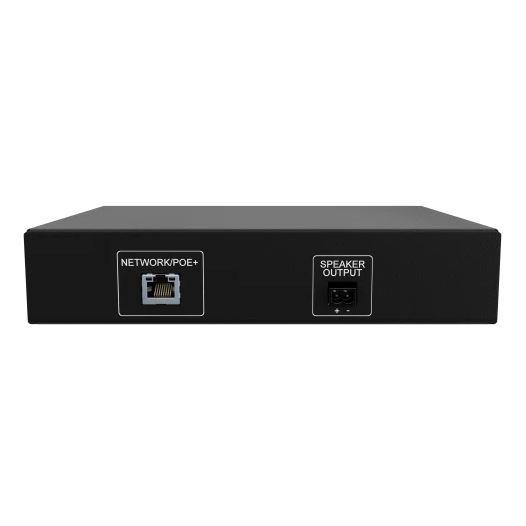

The EasyIP AMP D features one PoE+ network connection and one powered speaker output making it the ideal solution for incorporating a passive speaker with an EasyIP or Dante audio system. By providing digital signal transmission over the network, Dante makes installing any size project easy. The EasyIP AMP D is part of the expanding family of Vaddio’s EasyIP AV-over-IP ecosystem.
General
- Amplifier type
- Compact amplifier, Installation
Audio specification
- Amp channels
- 1 Mono
- Power/ch (4 Ohm)
- 25 W x1 (4 ohms) (With PoE+ power), 15W x1 (With PoE power)
- Built-in DSP
- No
Connections
- Audio inputs
- Dante (RJ-45)
- Audio outputs
- Euroblock spk. cable
- Bluetooth
- No
- Ethernet
- Yes
- WiFi
- No
- Control
- Front buttons Reset button
- Control
- PC software Dante Controller application from Audinate
Energy
- Power Supply
- PoE/PoE+ (Adaptive output – 25 W if powered by an EasyIP Switch or other PoE+ source, 15 W if powered by a PoE source)
- Cooling method
- Air passive (fanless)
Dimensions and weight
- Width
- 212.9 mm
- Depth
- 152.4 mm
- Height
- 43.7 mm
- Net weight
- 0.66 kg
Additional information
- Installation
- 19" Rack, 1U (1/2 Width) With supplied rack adapter
- Installation
- Freestanding/Shelf
- Included Accessories
- Cat-6 cable 3m, 2-conductor 5mm Phoenix style plug, Rack mounting brackets
- Warranty
- 3 years
