Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
- Key Features:

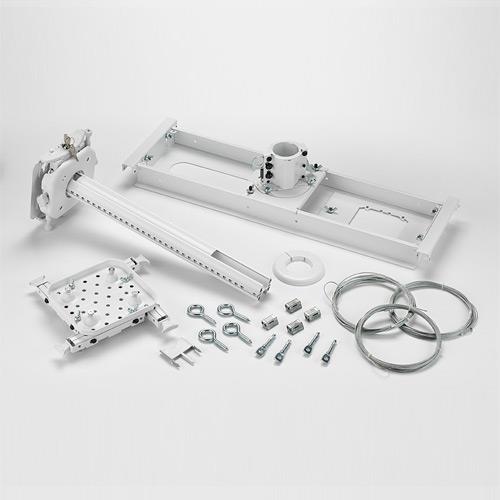

- System comes out of box in the order needed with mount and column preassembled
- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables

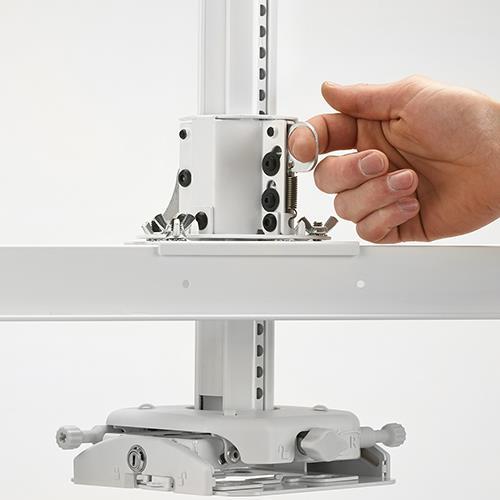

- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
General
- Application
- Suspended Ceiling
- Color
- White
Functions
- Column Type
- Adjustable
- Angled Ceiling
- No
- Tiltable
- Yes +/-10°
- Swing/Pan
- Yes +/-360°
- Roll/Pivot
- Yes +/-3°
- Lockable
- Yes Key and lock system with all-points security hardware
Dimensions and weight
- Max weight capacity
- 15.9 kg
- Column lenght min
- 0 mm
- Column lenght max
- 305 mm
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 749 x 223 x 204 mm
- Packaging weight
- 9.01 kg
