Features
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- PC keyboard combinations emulate Mac/Sun keyboards
- Mac/Sun keyboard work only with their own
Package Contents

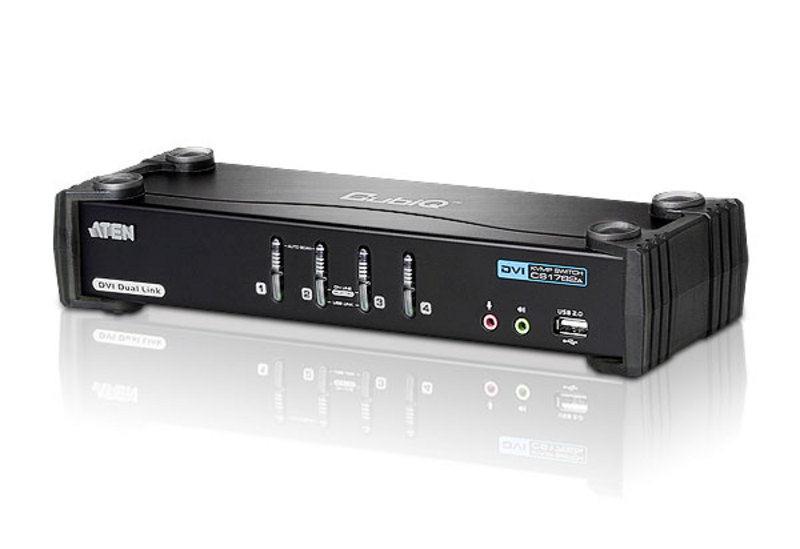

- 1x CS1784A USB DVI Dual Link KVMP™ Switch
- 4x 2L-7D02UD DVI-D KVM Cable Sets
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
General
- Model
- CS1784A
- Utök. text för namn
- USB DVI-I Dual Link/Audio KVMP™
- Application
- Switch
Image specification
- Resolution
- 2560x1600 (Dual Link), 1920 x 1200 @ 60Hz (Single Link)
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 4
- Video outputs
- 1
- Video in
- DVI-I
- Video out
- DVI-I
- Audio inputs
- 3,5mm tele
- Audio outputs
- 3,5mm tele
Functions
- USB passthrough
- Yes
- USB standard
- 1.1
- Control
- Front buttons
Energy
- Power Supply
- DC5.3V:5.91W:53BTU
Measurements and weight
- Width
- 87 mm
- Depth
- 270 mm
- Height
- 55 mm
- Net weight
- 0.93 kg
Various
- Mounting
- Freestanding/Shelf
Packaging info
- Packaging size
- 324 x 100 x 215 mm
- Packaging weight
- 2.57 kg
