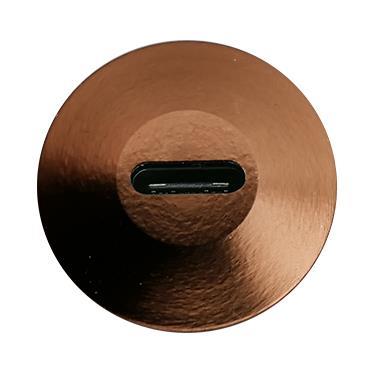

The elegantly designed USB-C table socket enables hiding the technology under the table and minimize cables. The four different surface finish in scratch free hard anodized aluminum offers optimal design combinations when selecting material for the tables.
Ochno Socket support charging up to 5A/100 USB 3.1 communication and video (alt-mode DisplayPort) together with Ochno Power Conference and Ochno Power Desktop. Possible to use with third party USB-C chargers as well. Not guaranteed to work with third party docking stations.
Functional description:
Full docking: 5A/100W charging, USB 3.1 communication, Alt-mode DisplayPort 1.2-1.4 video when used together with Ochno main units and cables. No guaranteed functionality when used with third party docking stations. Docking station with DisplayLink is supported. Docking via Thunderbolt is not supported. Only charging is supported for third party products.
Also available with 2 to 3 m for only charging.
Installed easily through a 18 mm hole.
General
- Application
- Table, flush installed
Connections
- USB type-C
- Yes
- 230V Connector
- 0 pcs.
Dimensions and weight
- Max tabletop thickness
- 32 mm
- Lenght cutout hole
- 18 mm Diameter
- Witdh cutout hole
- 18 mm Diameter
- Net weight
- 0.09 kg
- Cable lenght
- 1 m
Additional information
- Color
- Copper
- Included Accessories

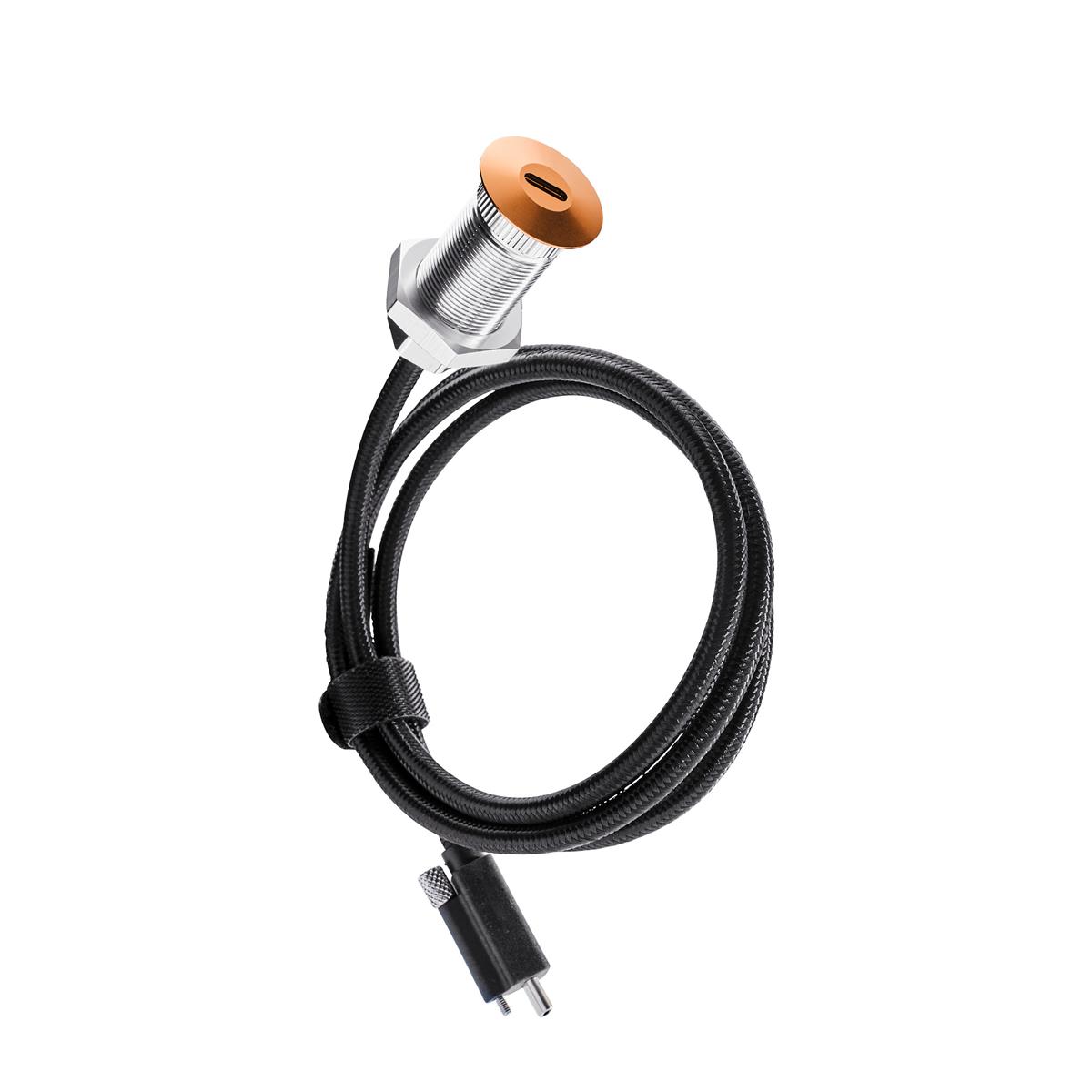

- Outlet with nut for fixation to table, 1m attached USB-C cable with locking screw
- Warranty
- 1 years
Packaging info
- Packaging size
- 100 x 100 x 100 mm
- Packaging weight
- 98 g
