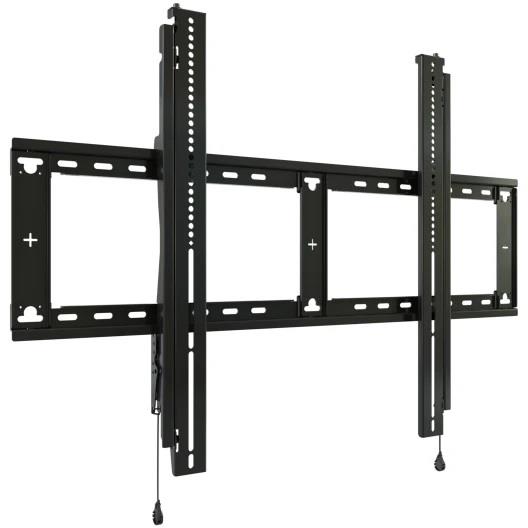

The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.
- Low profile 1.5” (38 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 650 mm
- Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security option (not included)
- UL and TUV safety standards compliant
General
- Number of displays
- 1 pcs.
- Application
- Wall
- Color
- Black
- Display orientation
- Landscape
- Videowall
- No
Functions
- Height adjustable
- Yes 19,1 mm
- Side adjustment
- Yes
- Depth adjustment
- No
- Tiltable
- No
- Swing/Pan
- No
- Roll/Pivot
- No
- Motorized
- No
- Lockable
- Yes With Padlock (Optional)
Dimensions and weight
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 200x500, 200x600, 300x100, 300x200, 300x300, 300x400, 300x500, 300x600, 400x100, 400x200, 400x300, 400x400, 400x500, 400x600, 500x100, 500x200, 500x300, 500x400, 500x500, 500x600, 600x100, 600x200, 600x300, 600x400, 600x500, 600x600, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400, 800x500, 800x600, 900x100, 900x200, 900x300, 900x400, 900x500, 900x600
- Weight capacity (per screen)
- 113.4 kg
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 50 x 1,000 x 600 mm
- Packaging weight
- 5.95 kg
