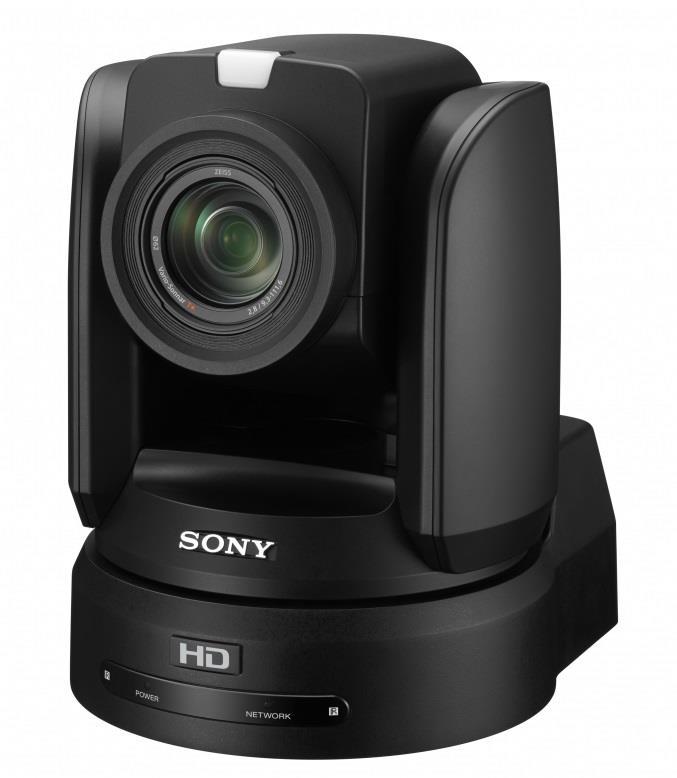

Sony BRC-H800 | 1920x1080 | 12x Opt. Zoom | 64.6° Fov. | PTZ camera

Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Key Features:
· Enhanced Pan/Tilt/Zoom (PTZ) operation.
Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements. PTZ Trace Memory* allows a sequence of camera movements to be memorised and followed whenever required. PTZ Motion Sync* smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions.
· Broadcast quality Full HD 60p images.
The camera's large, back-illuminated 1-inch type Exmor R CMOS sensor delivers uncompromised broadcast quality colour pictures in detail-packed Full HD 60p, capable of capturing sports and other fast-moving action.
· Cinematic 24p pictures*
The camera can also operate in 24p mode, for video footage with a rich, filmic look.
· High quality 12x optical zoom and 24x(HD) with Clear Image Zoom.
The high quality Zeiss Vario-Sonnar T* lens with 12x optical zoom range covers wide angle shots as well as tight close-ups. Clear Image Zoom expands this range to 24x (HD) without sacrificing detail.
· Excellent low light sensitivity.
The BRC-H800 can capture crisp, low noise colour video images in light levels as low as 1.7lx, making it an ideal choice for dimly lit live hall and theater.
· Flexible installation.
Integration is simplified in a wide range of environments, with PoE+ (Power over Ethernet) to reduce cabling requirements and VISCA control over IP.
· Remote operation.
Pan/tilt/zoom and other camera settings can be controlled using the supplied IR remote commander, or with the optional RM-IP10 Remote Control Unit that can control multiple cameras.
· Genlock
Genlock simplifies integration with other systems in multi-camera broadcast environments.
· Versatile video outputs
Enjoy greater installation flexibility in professional broadcast and AV environments with 3G-SDI (x2) and HDMI video outputs.
· Front and rear tally lamps.
Ideal for on-air broadcast use, the BRC-H800 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.
· Always up to date.
New camera functionality and performance improvements can be added via firmware updates over IP.

General

Camera type: PTZ camera
Color: Black

Image specification

Max Resolution (Out): 1920x1080
Framerate: 60 FPS
Optical zoom: 12 x
Digital zoom: 0 x
Field of view (horizontal): 64.6 °
Min. illumination: 1.7 Lux (50IRE, F2.8, 1/30s, Max.Gain)
Min. working distance: 1,000 mm

Functions

Programmable presets: Yes 16
Ceiling installation/Flip image: Yes Up/Down (Flip image for ceiling installation)
Pan movement +/-: 170 °
Tilt movement up: 90 °
Tilt movement down: 30 °
Auto framing/tracking: No

Audio specification

Built-in microphone: No
External microphone: No
Built-in speaker: No
External speaker: No

Connections

Video out: 3G-SDI x2
Video out: HDMI, IP stream (RJ-45)

Energy

Power Supply: DC 10.8V to 13.2V, PoE+ (IEEE802.3at compliant)

Dimensions and weight

Width: 198 mm
Depth: 260 mm
Height: 238 mm
Net weight: 4.3 kg

Additional information

Included Accessories: IR Remote, 2x Ceiling bracket, Wire rope, 7x Screws(M3 x 8), Screws(M4 x 8), HDMI cable fixing plate
Warranty: 3 years PrimeSupport Pro, Includes: Phone support Mon-Fri 09.00-18.00, Standard Repair, Logistics Covered

Packaging info

Packaging size: 200 x 300 x 250 mm
Packaging weight: 4.30 kg
