Capture every point of view in 4K with excellent picture quality and efficient IP production workflow

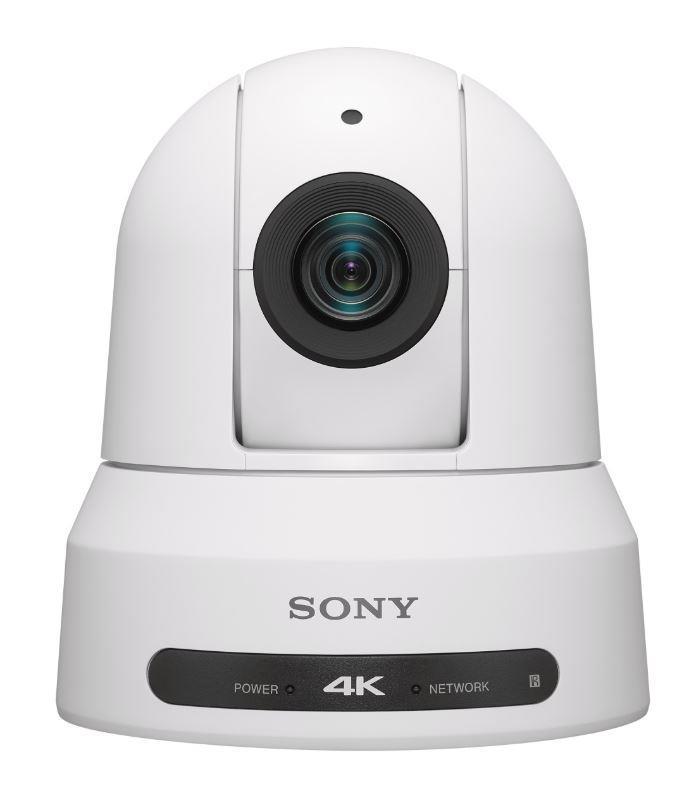

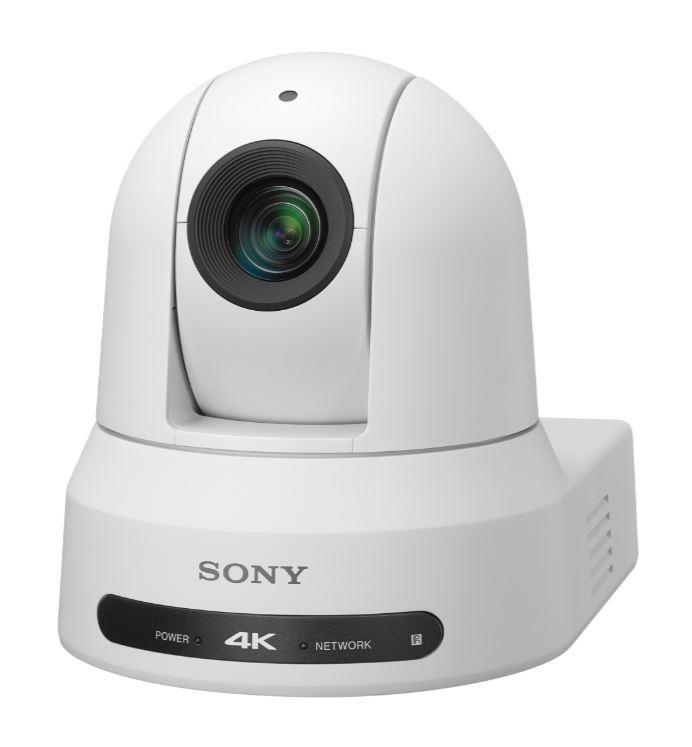

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.
Key Features:
• 1/2.5 type 4K Exmor R sensor
• 30x (4K with CIZ)/40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
• 70° wide shooting angle
• NDI®*|HX capability (Option license)
• PoE+/image output/camera control via network cable
• Remote viewing (RTSP)
• Fast pan-tilt movement during preset
The camera's 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.
Efficient IP-based live production is augmented with support for NDI®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices.
Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.
Installation and set-up is easy, with a new Picture Setting File** allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.
- NDI® is a registered trademark of NewTek, Inc. ** Available through future upgrade planned in early 2020 *** With CIZ (Clear Image Zoom) and Tele Convert Mode
Note: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.
General
- Camera type
- PTZ camera
- Color
- White
Image specification
- Max Resolution (Out)
- 3840x2160 (4K output only via HDMI and IP)
- Framerate
- 30 FPS
- Optical zoom
- 40 x (HD with CIZ), 30x (4K with CIZ), Max 80x (HD with CIZ and Tele Convert Mode) *CIZ = Clear Image Zoom
- Digital zoom
- 12 x
- Field of view (horizontal)
- 70 °
- Min. illumination
- 1.6 Lux (1/30s 50IRE F2 high-sensitivity OFF)
- Min. working distance
- 80 mm
Functions
- Programmable presets
- Yes 256 (CGI) / 100 (VISCA)
- Ceiling installation/Flip image
- Yes Up/Down (Flip image for ceiling installation)
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 20 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- Yes Yes, 2x 3,5mm tele mic inputs (L/R 2ch). Settings for AGC (Auto Gain Control), EQ, Volume and Line/Mic input. Audio embedded in SDI, HDMI and IP-stream
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- 3G-SDI, HDMI
- Video out
- IP stream (RJ-45) H.264/H.265 RTSP, NDI|HX with optional license
- Audio inputs
- 3,5mm tele x2 Mic inputs (L/R 2ch). Settings for AGC (Auto Gain Control), EQ, Volume and Line/Mic input. Audio embedded in SDI, HDMI and IP-stream
- Audio outputs
- HDMI, IP (RJ-45)
Energy
- Power Supply
- DC12V AC Adapter or PoE+ (IEEE802.3at compatible)
Dimensions and weight
- Width
- 158.4 mm
- Depth
- 200.2 mm
- Height
- 177.5 mm
- Net weight
- 1.8 kg
Additional information
- Included Accessories
- Safety Regulations, AC adapter, Remote, Ceiling bracket (A), Ceiling bracket (B), Wire rope, 9xMounting screws (M3×8), Mounting screw (M2.6×6), HDMI cable fixing plate
- Warranty
- 3 years PrimeSupport Pro, Includes: Phone support Mon-Fri 09.00-18.00, Standard Repair, Logistics Covered
Packaging info
- Packaging size
- 256 x 234 x 256 mm
- Packaging weight
- 2.39 kg
