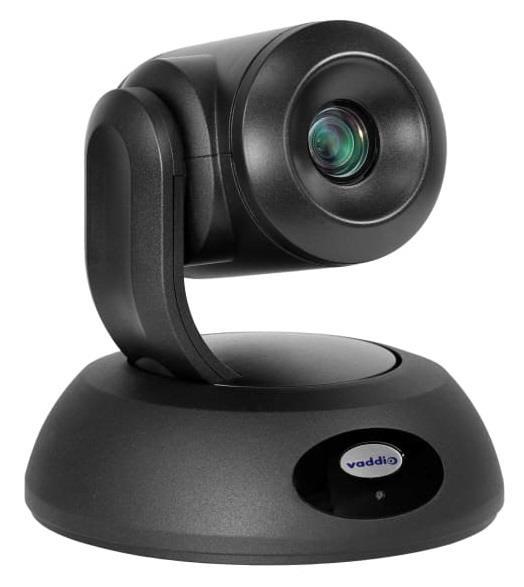

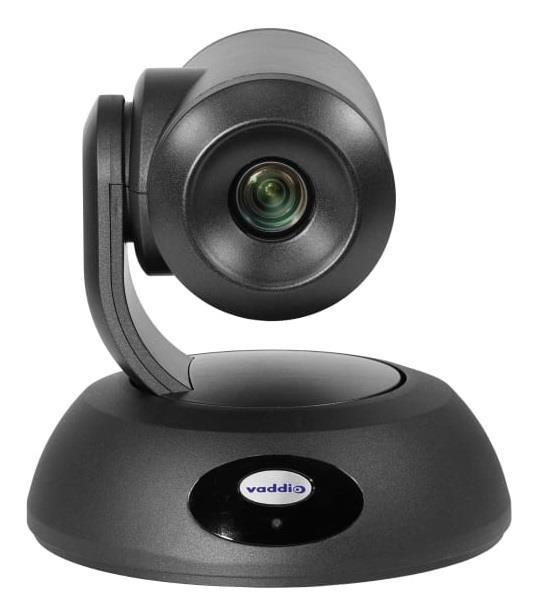

RoboSHOT Elite Series cameras are professional A/V conferencing cameras. Simultaneous HDMI, IP (H.264) streaming, uncompressed USB 3.0 streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view.
Key Features:
• 12x Optical Zoom
• 1/2.5-type Exmor R CMOS sensor
• 70.2° horizontal field of view
• Simultaneous USB 3.0, HDMI and IP H.264 streaming
• Remote IP Management
Features:
• Introducing the RoboSHOT Elite Series - Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
• RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
• Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
• A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
• The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
• The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
• Video outputs include simultaneous USB 3.0, HDMI and IP (H.264) streaming. Connect directly to a PC or Mac and use any software application on any operating system that supports USB 3.0 devices.
New! Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
In the box:
- RoboSHOT 12E USB HD PTZ camera (black or white)
- Quick-Start Guide
- PoE+ Midspan Power Injector
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander 1.8m USB 3.0 cable, type A to B
General
- Camera type
- PTZ camera
- Color
- Black
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 12 x
- Field of view (horizontal)
- 70.2 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1.6 Lux 100+ lux recommended
- Min. working distance
- 80 mm
Functions
- Programmable presets
- Yes 16 + Custom Home
- Ceiling installation/Flip image
- Yes
- Pan movement +/-
- 150 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- No
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- HDMI
- Video out
- IP stream (RJ-45) H.264 streaming (RTSP or RTMP format with H.264 compression)
- Video out
- USB-B
- USB standard
- 3.0
Energy
- Power Supply
- PoE+
Dimensions and weight
- Width
- 173 mm
- Depth
- 171 mm
- Height
- 173 mm
- Net weight
- 2.2 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 2 years plus option for purchasing additional 3 years
Packaging info
- Packaging size
- 360 x 360 x 460 mm
- Packaging weight
- 5.90 kg
