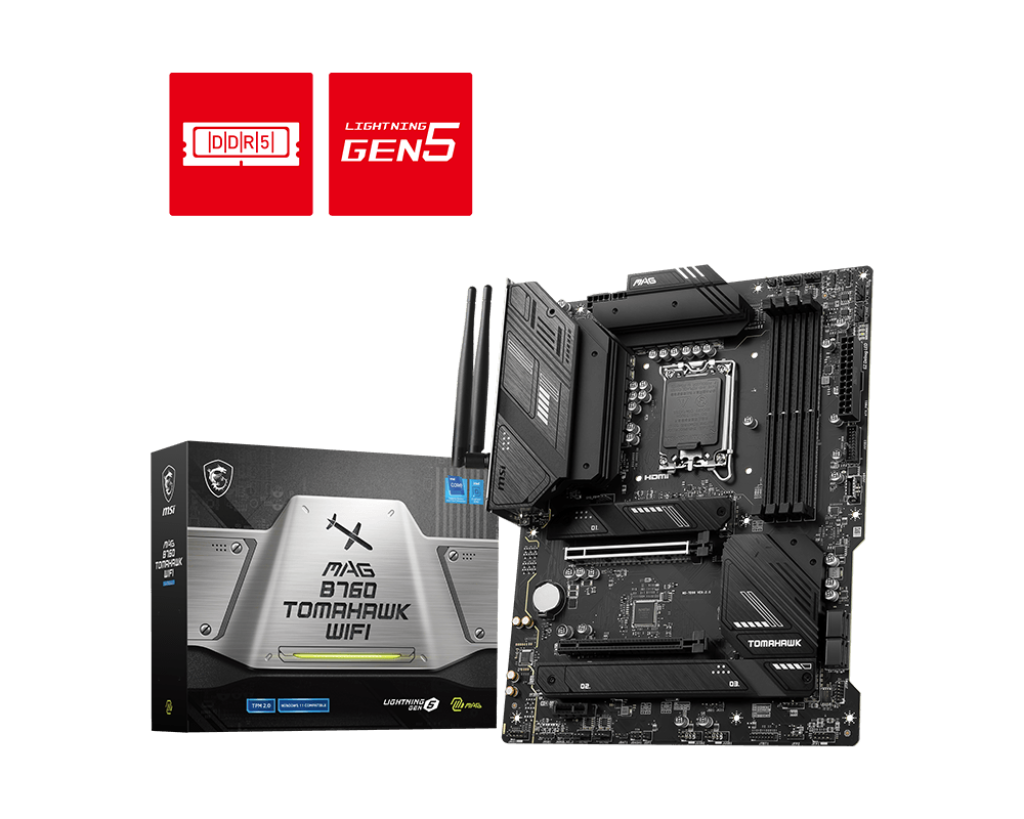

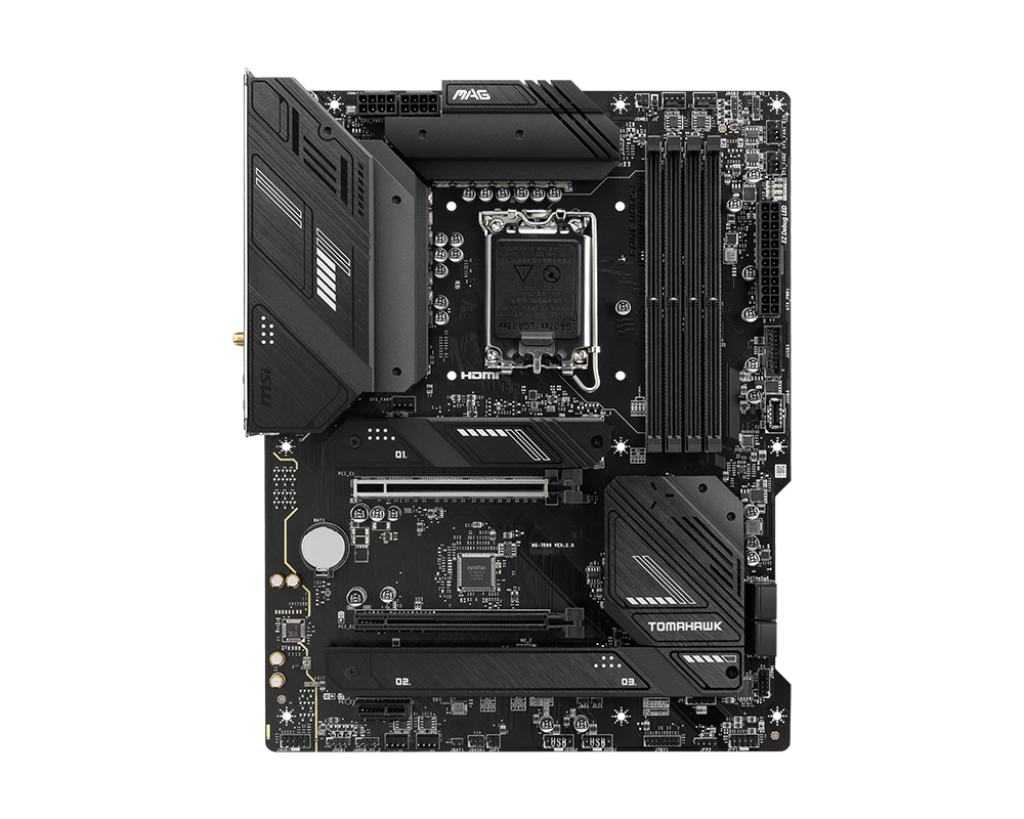

MAG B760 TOMAHAWK WIFI
Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7000+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
General
- CPU-Socket
- Intel 1700
- Chipset
- B760
- Form factor
- ATX
Memory
- Memory Type
- DDR5
- Channel Supported
- Dual Channel
- Memory frequency (base)
- 4,800 MHz
- Memory frequency (OC)
- 7,000 MHz
- Memory slots
- 4 pcs.
- Max Memory Supported
- 192 GB
Expansion Slots
- PCIe x16
- 2 pcs.
- PCIe x1
- 1 pcs.
Storage Devices
- M.2 slots
- 3 pcs.
- SATA ports
- 4 pcs.
Communications
- Wi-Fi
- Yes
- WiFi Standard
- Intel® Wi-Fi 6E
- Bluetooth
- Yes
Internal I/O Connectors
- TPM
- Yes
- Thunderbolt
- Yes
Rear Panel Ports
- USB type-A
- Yes
- USB type-C
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
Dimensions and Weight
- Width
- 243.84 mm
- Length
- 304.8 mm
Packaging info
- Packaging size
- 351 x 274 x 76 mm
- Packaging weight
- 1.77 kg
Packaging info (5 pcs)
- Packaging size
- 380 x 286 x 378 mm
- Packaging weight
- 9.82 kg
