Cutting-edge image processing technology for extraordinary visual experiences

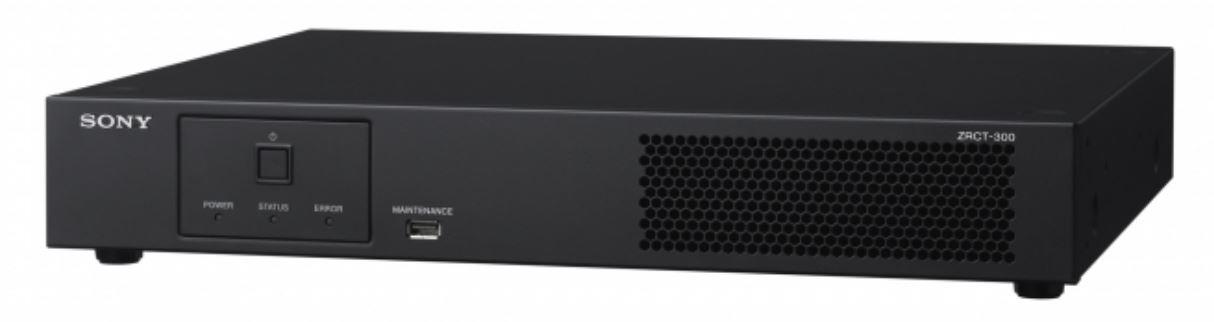

The ZRCT-300 is a dedicated display controller for Sony's modular LED large display system. One ZRCT-300 unit can control up to 64 ZRD-B12A/C12A/BH12D/CH12D cabinets or 100 ZRD-B15A/C15A/BH15D/CH15D cabinets to create spectacular high-resolution LED displays.
The powerful processor "X1 for Crystal LED" ensures extraordinarily realistic, finely-detailed images for an overwhelming visual experience on virtually any size and scale.
The controller can accept a wide range of video input signals up to a maximum resolution of 3840 x 2160 pixels, with support for HDR, High Frame Rate and 3D.

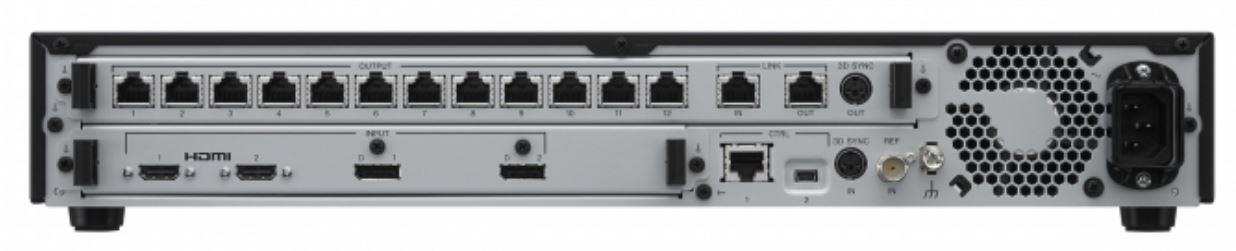

The 1.5U size rack mounting unit features 12x RJ45 output ports, 2x HDMI and 2x DisplayPort video inputs, 3D sync, genlock, network control and maintenance ports together with link input/output ports for interconnection with other ZRCT-300 display controllers to produce even larger displays.
General
- Application
- Image processor
Connections
- Video in
- DisplayPort 1.2 x2
- Video in
- HDMI x2
- Video out
- TP (RJ-45) x12
Functions
- Control
- Ethernet/IP (RJ-45), USB-A
Energy
- Power Supply
- AC 100 - 240 V, 50 / 60 Hz
Dimensions and weight
- Width
- 440 mm
- Depth
- 349 mm
- Height
- 65 mm
- Net weight
- 6.4 kg
Additional information
- Installation
- 19" Rack, 1.5U, Freestanding/Shelf
- Warranty
- 3 years w. PrimeSupport
Packaging info
- Packaging size
- 500 x 400 x 100 mm
- Packaging weight
- 7.00 kg
