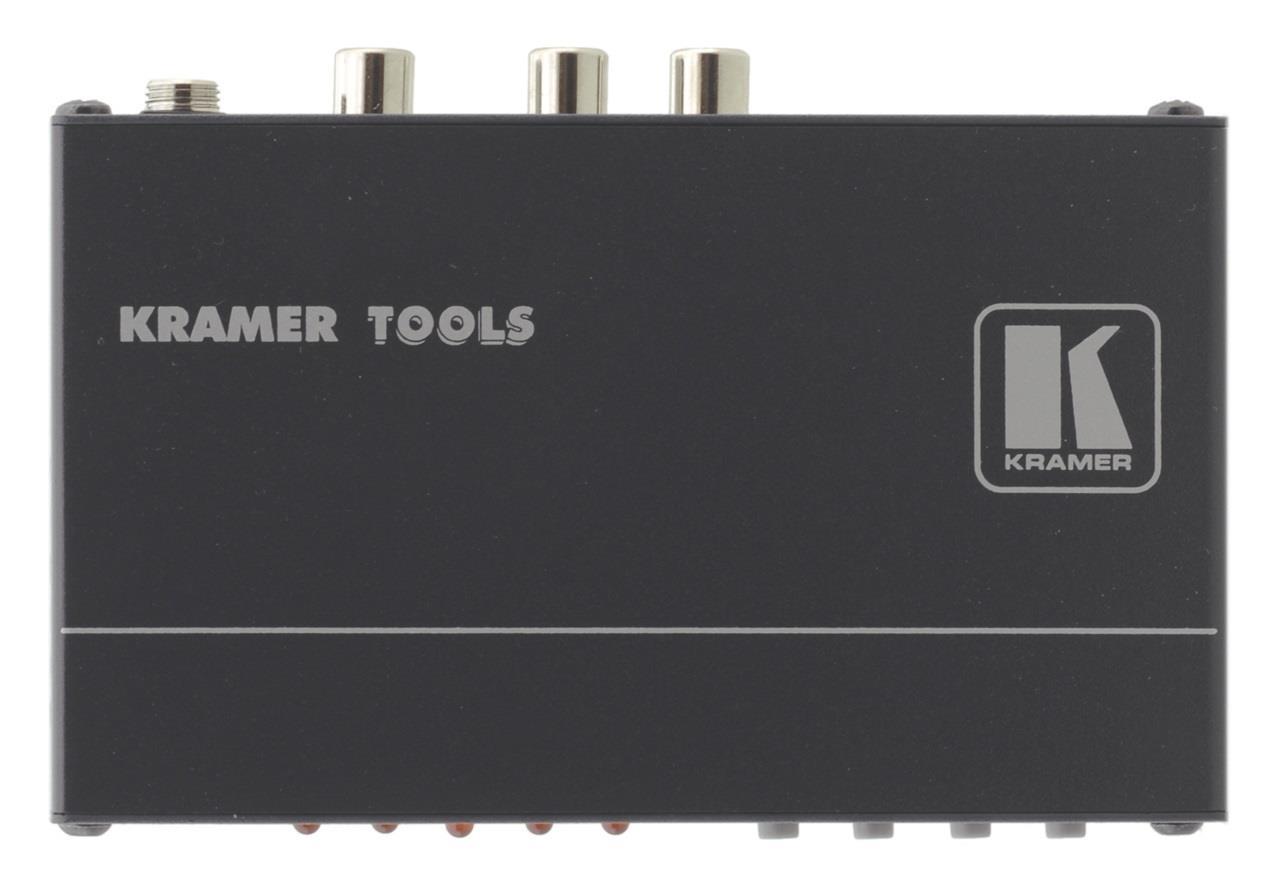

The VP-410 is a high-performance scaler for composite video and audio to HDMI signals. It scales the composite video, embeds stereo audio and converts the signal to an HDMI output.
- HDTV Compatible.
- Output Resolutions - 480p, 576p, 720p, 1080i and 1080p.
- Controls - Front panel with On−Screen Display (OSD).
- Built-in ProcAmp - Color, sharpness, brightness, contrast, etc.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK-3T rack adapter.
**Applications: **
- Projection systems in conference rooms, boardrooms, hotels and churches.
- Home theater up-scaling.
General
- Model
- VP-410
- Application
- Converter, Scaler
Image specification
- Resolution
- 1920x1080 progressive

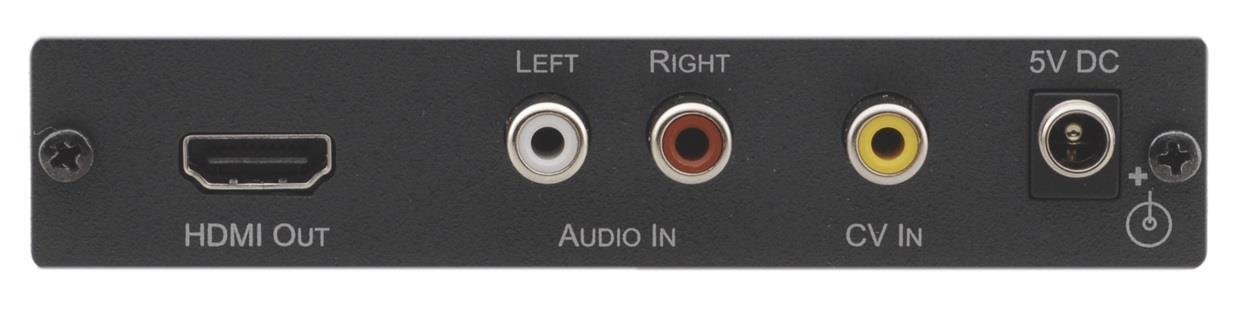

Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- Composite video
- Video out
- HDMI
- Audio inputs
- RCA x2 Stereo Line Unbalanced
- Audio outputs
- HDMI digital embedded audio
Functions
- Scaler
- Yes
- USB passthrough
- No
- Control
- Front buttons, On-screen display
Energy
- Power Supply
- 5V DC, 430mA POS
Measurements and weight
- Width
- 120 mm
- Depth
- 71.5 mm
- Height
- 24.4 mm
- Net weight
- 0.2 kg
Various
- Mounting
- 19" Rack, 1U With RK-3T rack adapter (option)
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply
- Warranty
- 7 years
Packaging info
- Packaging size
- 160 x 120 x 90 mm
- Packaging weight
- 590 g
