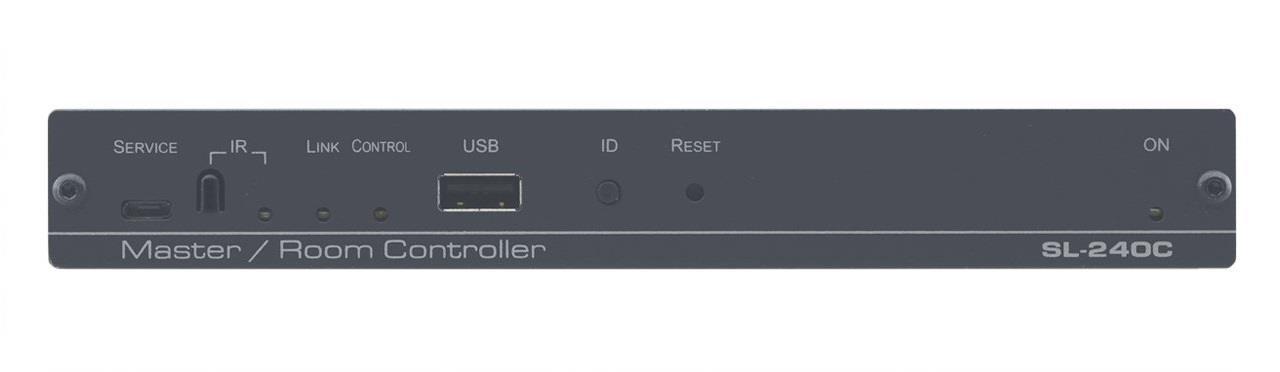

SL−240C is a compact master/space controller (Kramer Control brain) with PoE. It can operate over Ethernet with control interfaces that include: four bidirectional RS−232, four IR, four GPI/O, and four relays. It controls devices such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights. Multiple Kramer Ethernet control gateways can be used to add remote I/O ports.
Key Features:
• Space Controller - Controls any AV device/display with its corresponding logic.
• High Performance Architecture - Enables a scalable and flexible programming platform.
• 4 RS-232 Bidirectional Control Ports - For controlling devices via bi-directional serial control protocols.
• 4 IR Emitter & 1 IR Receiver Control Ports - Control devices via IR control protocols and learn commands from IR remotes.
• 4 GPI/O Control Ports - Control devices via general purpose I/O ports, program configured as digital input, digital output or analog input interface for controlling sensors, door locks, audio volume and lighting control devices.
• 4 Relay Control Ports - Control devices via relay contact closure, such as opening and closing drapes, shades, blinds, and projection screen scrolling.
• Resilient powering with PoE and optional PSU (not included).
• Network Support - 10/100/1000Mbps Ethernet.
• LED Indicators - I/O port state and system status.
• Software Management Support - Kramer Control, API.
General
- Installation
- 19" Rack, 1U

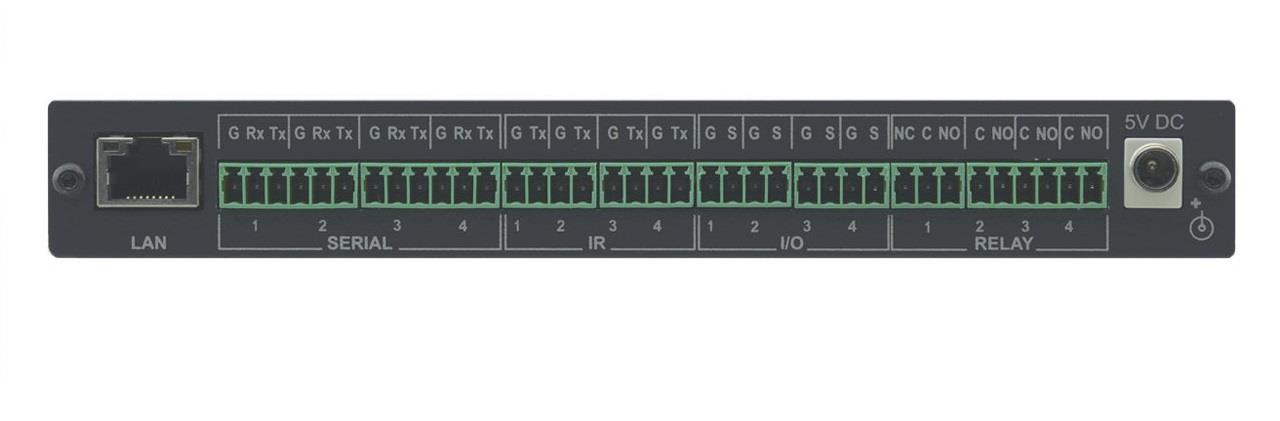

Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- GPI/O x4
- Control ports
- IR cable connection x4
- Control ports
- Relay x4
- Control ports
- RS-232 x4
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- PoE (for extra power resiliency, connect to the optional 5V DC power supply)
Dimensions and weight
- Width
- 187.5 mm
- Depth
- 115 mm
- Height
- 25.4 mm
- Net weight
- 0.4 kg
Additional information
- Color
- Grey
- Warranty
- 7 years
Packaging info
- Packaging size
- 342 x 57 x 155 mm
- Packaging weight
- 946 g
