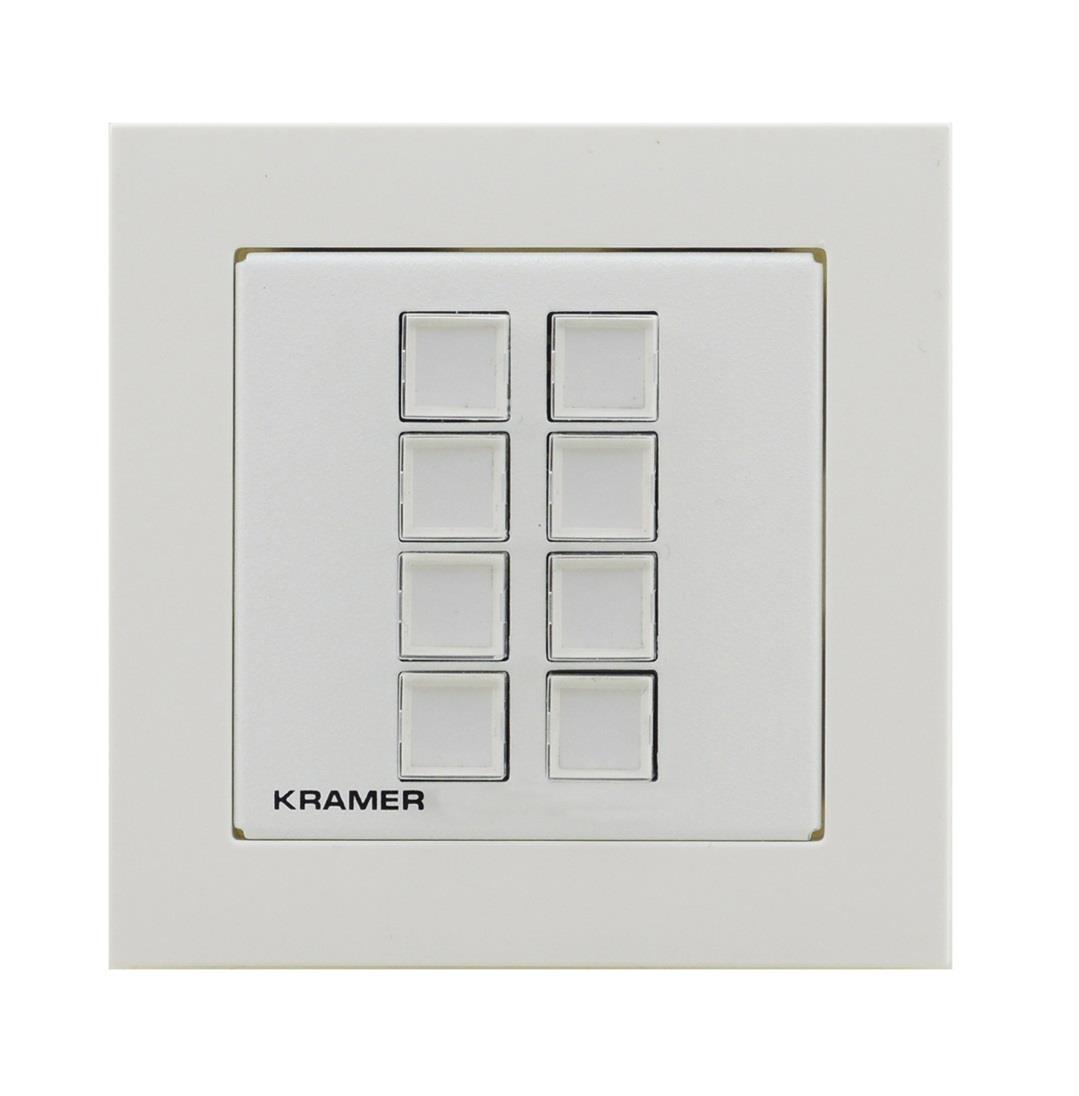

RC−208 is a compact 8−button control keypad that fits US, European and UK standard 1−gang wall junction boxes. Easy to deploy, RC−208 fits decoratively within a room design. It is perfectly suited for use as a user interface keypad within a Kramer Control system. Using K−Config, tap into the rich, built−in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end−user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades.
Multiple keypads can be linked together side−by−side or at a distance, via a single K–NET™ cable carrying both power and communication, providing uniform design and user experience.
Features:
• Clear and Customizable User Interface — RGB–color, tactile feedback, backlit buttons with custom labeled, removable button caps, allowing simple and intuitive end–user and guest control over facility deployed devices and systems.
• Flexible Room Control — Control any room device via LAN connections, multiple RS–232 and RS–485 serial ports, and various IR, relay and general purpose I/O built–in device ports. Connect the keypad to an IP network with additional control gateways interfacing with remote controlled devices, for extending control across large space facilities.
• Expandable Control System — According to arising demands, easily expands to be part of a larger control system, or coupled–operation with auxiliary keypads, via either LAN or K–NET™ single cable connection delivering both power and communication.
• Simple Control Programming — Using K–Config software. Leverage the power of Kramer’s highly customizable, flexible and user–friendly software, to easily program complex control scenarios of Pro–AV, Lighting, and other room and facility controlled devices.
• Easy and Cost–effective Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, allows decorative integration with room deployed user interfaces such as electrical switches.
General
- Buttons
- 8 pcs.
- Installation
- Wall

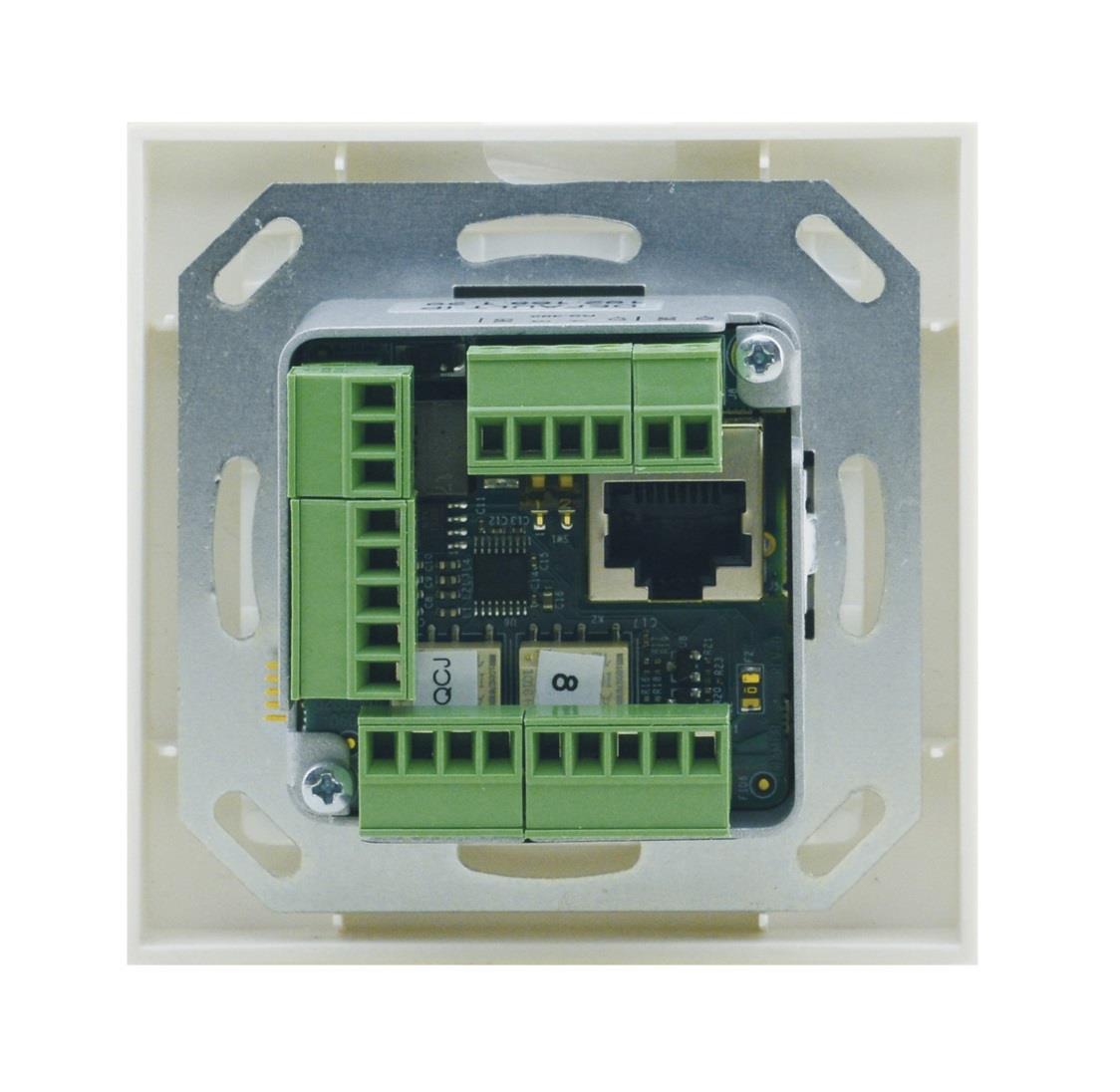

Connections
- Control ports
- GPI/O x1
- Control ports
- IR cable connection x2
- Control ports
- K-NET x1
- Control ports
- Relay x2
- Control ports
- RS-232 x2
- Control ports
- RS-485 x1
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- 12V DC 2A, 780mA power supply (included)
Dimensions and weight
- Width
- 80 mm
- Depth
- 47 mm
- Height
- 80 mm
- Net weight
- 0.1 kg
Additional information
- Color
- White
- Included Accessories
- 12V DC power adapter, special tweezers for button caps, button label set (8.8 x 8.8mm), EU white frame, UK white frame, EU/UK white faceplate
- Warranty
- 7 years
Packaging info
- Packaging size
- 233 x 136 x 100 mm
- Packaging weight
- 596 g
